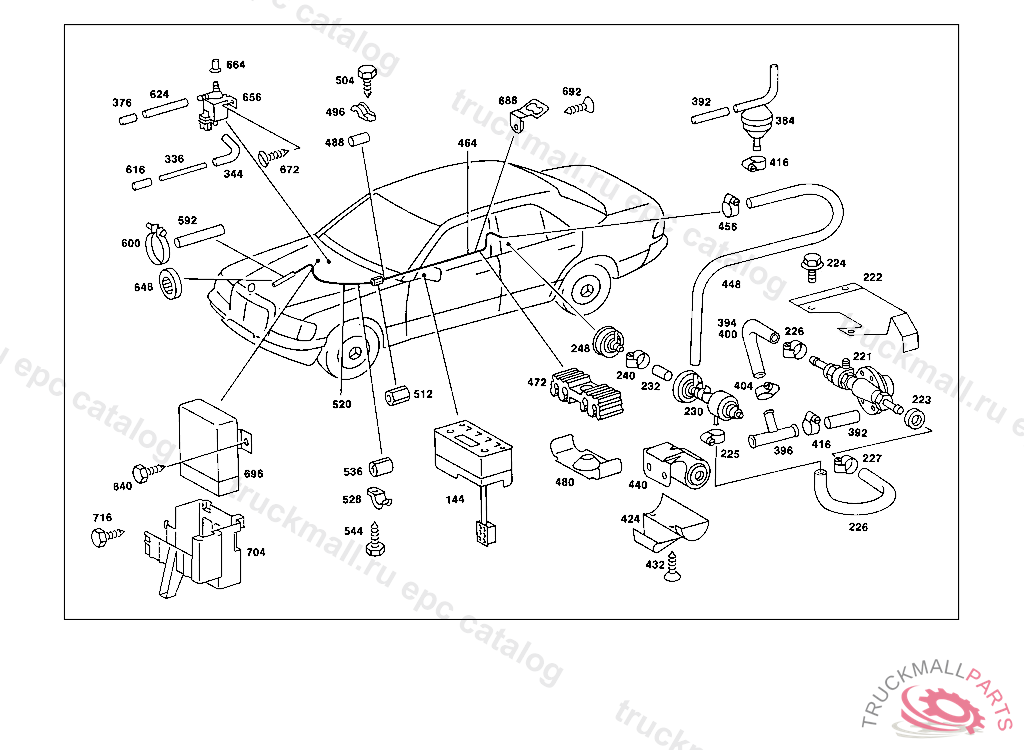

Поз.
Артикул
Описание
144
CLOCK
144
CLOCK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.F 101009, Replaced By: A0005424111
221
VALVE (PRESSURE RELIEF VALVE),F 122352F 032883
222
BRACKET PRESSURE RELIEF VALVE, A 432785 F 415111 A 459586 F 569589
223
GROMMET CLOCK
224
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
224
COMBINATION BOLT , Replaced By: N000000000548
225
LOOM TIE
226
HOSE FROM PRESSURE RELIEF VALVE TO FUEL-OIL PUMP, A 432785 F 415111 A 459586 F 569589
227
LOOM TIE
230
AUXILIARY PUMP FUEL-OIL PUMP,F 122352
232
HOSE4.5X10X900MM
240
CLAMP LINE MOUNTING
248
DIAPHRAGM ,F 122352
336
HOSE *** 30 MM
344
HOSE TO ELEMENT AT FRONT SEAT
344
HOSE , Replaced By: A1170780581
376
HOSE *** 30 MM
384
CONNECTOR FROM RETURN LINE TO FUEL TANK, A F 247151
392
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
394
HOSE FROM FUEL TANK TO FEED LINE
396
T-FITTING FROM FUEL TANK TO FEED LINE, A 432785 F 415111 A 459586 F 569589
400
HOSE FROM FUEL TANK TO FEED LINE, A F 247152
404
LOOM TIE
416
HOSE CLAMP HOSE FASTENING 9/13MM
416
CLAMP LINE MOUNTING
424
COVERING FUEL-OIL PUMP, A 459586 F 569589
432
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
432
COMBINATION BOLT , Replaced By: N000000000548
440
BRACKET , Replaced By: A2015001531
440
BRACKET FUEL-OIL PUMP, A 459586 F 569589
448
HOSE4.5X10X900MM
456
LOOM TIE
464
LINE , Replaced By: A2014702764
464
LINE FROM ADAPTER FITTING TO DAMPER
472
DAMPING STRIP
480
CLAMP FUEL LINES TO VEHICLE FLOOR
488
RUBBER PAD , Replaced By: A1263280181
488
BUFFER
496
CLAMP FORKED SUPPORT,TOP
504
SHEET METAL SCREW VALVE TO WINDOW SILL
512
ADAPTER FITTING BETWEEN THE LINES
520
LINE FROM ADAPTER FITTING TO HEATER UNIT
520
LINE , Replaced By: A2014702964
528
CLAMP FORKED SUPPORT,TOP
536
RUBBER PAD , Replaced By: A1263280181
536
BUFFER
544
SHEET METAL SCREW VALVE TO WINDOW SILL
592
HOSE4.5X10X900MM
600
CLAMP LINE MOUNTING
616
INSULATING HOSE6 X 0.6 MM, ORDER BY THE METER
624
HOSE , ORDER BY THE METER
624
HOSE , Replaced By: A0009974152
624
HOSE FROM NO.5 CHANGE-OVER VALVE TO MAIN AIR FLAP VACUUM ELEMENT 250 MM
624
HOSE FROM NO.3 CHANGE-OVER VALVE TO VACUUM DISTRIBUTOR 270 MM
640
SHEET METAL SCREW SEAT HEATER CONTROL TO CROSS MEMBER AND TO FRONT SEAT
648
RUBBER RING
656
VALVE (3/2-WAY SOLENOID VALVE)
656
VALVE , Replaced By: A0015408697
664
HOSE SOLENOID VALVE
672
COMBINATION BOLT BRACKET TO PILLAR
688
BRACKET AT TUNNEL
692
SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
696
CONTROL UNIT ELECTRONIC CONTROL BOX
704
BRACKET CONTROL UNIT TO FIRE WALL, NOT FOR USE W/ANTI-BLOCK BRAKING SYSTEM
716
COMBINATION BOLT INSTRUMENT PANEL TO COWL,BOTTOM
999
BLEEDER VALVE OIL DRAIN
999
AUXILIARY PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 522463 F 664539, Replaced By: A0004703694
999
AUXILIARY PUMP FUEL-OIL PUMP
999
CONNECTOR
999
FRONT EXHAUST PIPE
999
BOOT SOLENOID VALVE
999
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
999
CLAMP , Replaced By: A0049976890
999
MUFFLER , Replaced By: A0054910801
999
CLAMP EXHAUST PIPE
999
MUFFLER EXHAUST MUFFLER
999
HOSE CLAMP LINE MOUNTING
999
INTERMEDIATE PIECE
999
CABLE HARNESS ELECTRONIC SYSTEM GROUND CONNECTION TO RIGHT WHEEL ARCH PANEL
999
HOSE FROM FUEL NOZZLE TO FUEL LINE,F 122352
999
CABLE HARNESS , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: B 859136 F 241917, Replaced By: A1244401109
999
HOSE BRAKE LINE TO FIRE WALL, B 921355 J 007220
999
RUBBER MOUNTING FUEL-OIL PUMP
999
RUBBER MOUNTING FUEL-OIL PUMP
999
AUXILIARY PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.F 002928, Replaced By: A0004702394
999
HOSE , Replaced By: A2014761126
999
HEATER UNIT RANGE OF DELIVERY
999
BRACKET PIPE LINE,F 066328
999
ACCESSORY KIT , ONLY FOR USE WITH RANGE OF DELIVERY OF HEATER
999
LINE FROM ENGINE TO HEATER UNIT,F 066328
999
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2015001872
999
LINE , A 349487 F 306431
999
ACCESSORY KIT AUXILIARY HEATER,SUBSEQUENT INSTALLATION, ONLY FOR USE WITH RANGE OF DELIVERY OF HEATER
999
HOSE FROM HEATER UNIT TO WATER PUMP,F 066329
999
HOSE FROM HEATER UNIT TO PIPE LINE, USED WITHOUT HEATED WINDSHIELD WASHER RESERVOIR
999
HOSE HEATING WATER PIPE TO ENGINE, A 349487 F 306431 A 402804 F 545036
999
HOSE FROM PIPE LINE TO HEAT EXCHANGER, A 349487 F 306431
999
HOSE HEATING WATER PIPE TO ENGINE, A 349486 F 306430
999
HOSE FROM HEATER UNIT TO WATER PUMP,F 066328
999
HOSE FROM HEATER UNIT TO PIPE LINE, A 349486 F 306430
999
HOSE DE-AERATION VALVE, A 349486 F 306430
999
HOSE FROM VALVE TO HEATING WATER LINE, A 349486 F 306430
999
HOSE HEATING WATER PIPE TO ENGINE, A 402805 F 545037
999
HOSE FROM HEATER UNIT TO PIPE LINE, ONLY USED WITH HEATED WINDSHIELD WASHER RESERVOIR
999
BRACKET FUEL-OIL PUMP, A 459587 F 569590
999
BRACKET ALTERNATOR CABLE HARNESS TO HEATER UNIT BRACKET
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW , Replaced By: N304017006034
999
SCREW , Replaced By: N304017006016
999
SCREW PUMP TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
NUT , Replaced By: N913023006001
999
NUT HEATING PIPE TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N910112006001
999
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
999
COMBINATION BOLT
999
SCREW ALARM UNIT TO WHEELHOUSE
999
CLAMP
999
CLAMP , Replaced By: A0059970190
999
CLAMP , Replaced By: N000000000667
