Поз.
Артикул
Описание

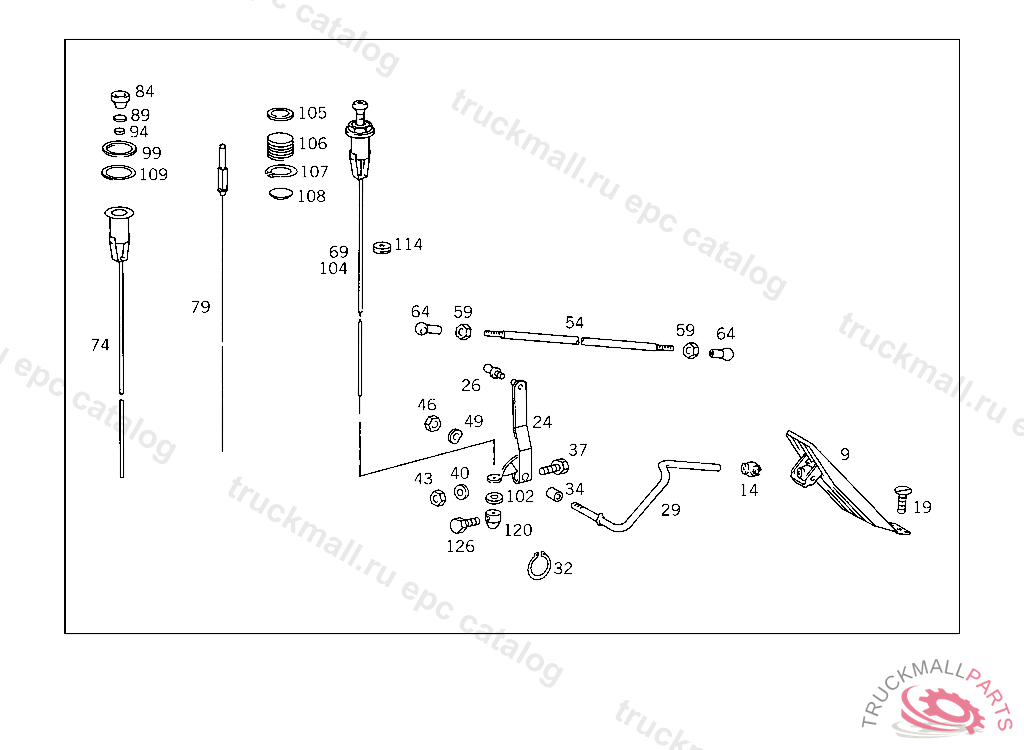

9
9
ACCELERATOR PEDAL , 309.0 FROM CHASSIS 004925-150171, 309.1 FROM CHASSIS 081030-150171, Replaced By: A3093001304
9
ACCELERATOR PEDAL ,150172
14
JOINT
14
JOINT
19
SCREW
24
24
LEVER CONTROL,014893
24
LEVER , 10/50 UP TO CHASSIS 177541,20/60 UP TO CHASSIS 182202, Replaced By: A3103000025, +001A3093002325
26
BALL PIVOT
26
BALL PIVOT , Replaced By: A3129910120
29
LEVER ,177541150172, Replaced By: A3103000425, +001A3093002525
29
LEVER ,081030-150171, Replaced By: A3103000425, +001A3093001304, +001A3093002525
29
LEVER ,502879, Replaced By: A3103000425, +001A3103000025
32
RETAINING RING FOLDING ARMREST
34
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
37
SCREW
40
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
43
NUT
46
NUT , Replaced By: N308673010000
49
SPRING WASHER MOUNTING TO BODY
54
ROD ,013936281715, Replaced By: A3093011515, +001A0009914722, +001A0009914822, +002N000934006007
54
ROD FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE,018871
54
59
NUT BALL PIVOT TO LEVER
59
NUT
64
BALL SOCKET CONTROL
64
BALL SOCKET
64
BALL PIVOT
64
BALL SOCKET , Replaced By: A0009911320
69
69
KNOB , Replaced By: A3083007007
69
74
74
79
79
84
KNOBTO 323 300 00 07
84
KNOB , FROM IDENT NO. 739256 ALSO INSTALLED ON:500001-599999 UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
84
KNOB , UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999, Replaced By: A3523020201, +001A3523020308
89
WASHER MANUAL CONTROL,4 155516
94
WASHER , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
99
WASHER , ON SPECIAL REQUEST
102
WASHERTO 352 300 00 07
104
NUT , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
105
WASHER
106
107
LOCK RING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
108
COVERTO 323 300 00 07
109
114
GROMMET CLUTCH LINE TO BRACKET
114
GROMMET ,D 314239
120
RING WIRE CABLE TO LEVER
126
SCREW 3/2-WAY VALVE TO BRACKET
999
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
