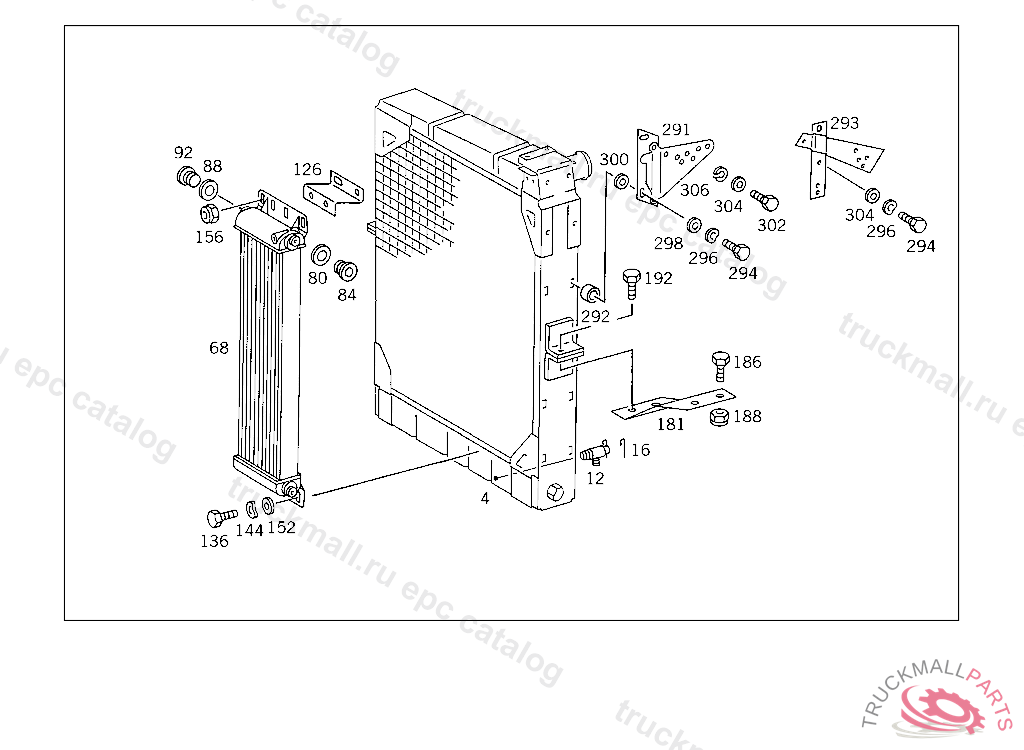

Поз.
Артикул
Описание
4
RADIATOR WATER BEHR
4
RADIATOR WATER
4
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
4
RADIATOR WATER, 000-199 UP TO IDENT NO. 4 428844,200-599 UP TO IDENT NO. 4 424215
4
RADIATOR
4
RADIATOR LESS TANK
4
RADIATOR WATER BEHR
4
RADIATOR , Replaced By: A3875002903
4
RADIATOR"BEHR"
12
VALVE ,4 263013
16
SPRING ,4 263013
68
RADIATOR OIL,5 360280
68
RADIATOR OIL,5 360279
80
SEAL RING FUEL LINE TO FEED PUMP
84
SCREW PLUGTO 000 553 03 05,000 553 18 05,
84
SCREW PLUG , Replaced By: N000908014009
88
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
92
SCREW PLUG OIL COOLER,5 360280
92
SCREW PLUG , Replaced By: N000908026008
92
SCREW PLUG , Replaced By: A0009973532
126
BRACKET OIL COOLER TO RADIATOR
136
SCREW CLAMP TO BRACKET AND TO PIPE
136
SCREW CAB FLOOR COVERING M 6X25
136
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
136
SCREW LICENSE PLATE TO BRACKET
136
SCREW PUMP TO BRACKET
136
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
136
SCREW PIPE CLAMP
136
SCREW , Replaced By: N304017006020
136
SCREW , Replaced By: N304017006016
136
SCREW , Replaced By: N304017008039
136
SCREW , Replaced By: N304017008021
136
SCREW , Replaced By: N304017008016
144
SPRING WASHER SHIFTING CYLINDER TO YOKE
144
SPRING WASHER LICENSE PLATE TO BRACKET
152
WASHER HIGH PRESSURE HOSE TO BRACKET
152
WASHER COMPRESSED AIR LINE TO BRACKET
152
WASHER COMPRESSED AIR LINE TO BRACKET
152
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
152
WASHER , Replaced By: N009021006208
156
NUT , Replaced By: N913004008001
156
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
181
SUPPORT RADIATOR
181
SUPPORT RADIATOR,LEFT,K 096749
181
SUPPORT RADIATOR
186
SCREW CONSOLE TO SIDE MEMBER
188
NUT SUPPORT TO SIDE MEMBER
192
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
192
SCREW BRACKET TO SIDE MEMBER
192
SCREW END PIECE TO EXHAUST PIPE M 10X25
192
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
192
SCREW , Replaced By: N304017010028
291
BRACKET OIL DIPSTICK TO RADIATOR
291
BRACKET OIL DIPSTICK TO RADIATOR
291
BRACKET OIL DIPSTICK TO RADIATOR
291
BRACKET , NOT USED
292
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
292
SPACER TUBE , Replaced By: A3805410053
293
BRACKET OI DIPSTICK GUIDE TUBE
293
BRACKET OIL DIPSTICK TO RADIATOR
294
SCREW COVER PLATE TO BRACKET
294
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
294
SCREW LICENSE PLATE TO BRACKET
294
SCREW , Replaced By: N304017006020
296
SPRING WASHER LICENSE PLATE TO BRACKET
298
WASHER COMPRESSED AIR LINE TO BRACKET
298
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
300
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
302
SCREW CLAMP TO BRACKET AND TO PIPE
304
WASHER COMPRESSED AIR LINE TO BRACKET
304
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
304
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
306
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LINE , Replaced By: A0005516456
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
RADIATOR ,4 706542
999
CLAMP , Replaced By: N916017011000
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
RADIATOR OIL, NOT USED
999
SCREW PLUG , Replaced By: N007604014101
999
FITTING , Replaced By: A0029906171
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
BOOT FAN SHROUD TO FAN RING
999
CLAMP FAN SHROUD TO FAN RING
999
FILTER OIL FILTER
999
BRACKET , Replaced By: A3812700241
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET , Replaced By: A3604293140
999
LINE , Replaced By: A3815001472
999
FAN SHROUD , 0-199 FROM CHASSIS 4 428845, 200-599 FROM CHASSIS 4 424216
999
SCREW BRACKET TO TRANSMISSION,5 360279
999
HOSE , Replaced By: A3819970682
999
BRACKET , Replaced By: A3832710140
999
BRACKET OIL LINES TO ENGINE
999
BRACKET OIL LINE TO CRANKCASE
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR MOUNTING,4 428845
999
CONNECTOR , Replaced By: A6205010223
999
BRACKET CABLE HARNESS TO LEAK LINE
999
BRACKET OIL FILTER
999
PIPE , Replaced By: A0004291601
999
BRACKET GOVERNOR
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO OIL COOLER
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO TRANSMISSION
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PANELLING CIRCULATING AIR
999
FITTING OIL FILTER
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 5 141771, Replaced By: A4010100940
999
BALL SOCKET ROD TO BALL PIVOT
999
LINE FEED, OIL COOLER
999
LINE RETURN, OIL COOLER
999
PIPE , Replaced By: A6152701396
999
PIPE , Replaced By: A6152701496
999
PIPE RETURN, FROM OIL TEMPERATURE REGULATOR TO OIL FILTER
999
PIPE FROM OIL FILTER TO TRANSMISSION
999
BRACKET OIL COOLER TO RADIATOR
999
RADIATOR
999
SHIM OIL COOLER TO BRACKET
999
SHIM OIL COOLER TO BRACKET
999
BRACKET OIL LINES TO ENGINE
999
CONNECTOR AT WATER PUMP
999
BRACKET OIL LINES TO ENGINE,5 501369
999
BRACKET OIL LINES TO ENGINE,5 501369
999
PIPE , Replaced By: A6172704996
999
LINE , Replaced By: A0005516156
999
LINE HEATING AND BREATHING
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
AIR BAFFLE RADIATOR, NOT USED
999
HOSE HEATING PIPE TO RADIATOR
999
PIPE ELBOW , Replaced By: A6205010556
999
PIPE ELBOW , Replaced By: A6555010756
999
HOSE , Replaced By: A6175014982
999
HOSE , Replaced By: A6175014982
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
CONNECTION FITTING , Replaced By: A0049971772
999
BALL SOCKET ROD TO BALL PIVOT
999
SECURING CLIP. CIRCLIP
999
NUT
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
