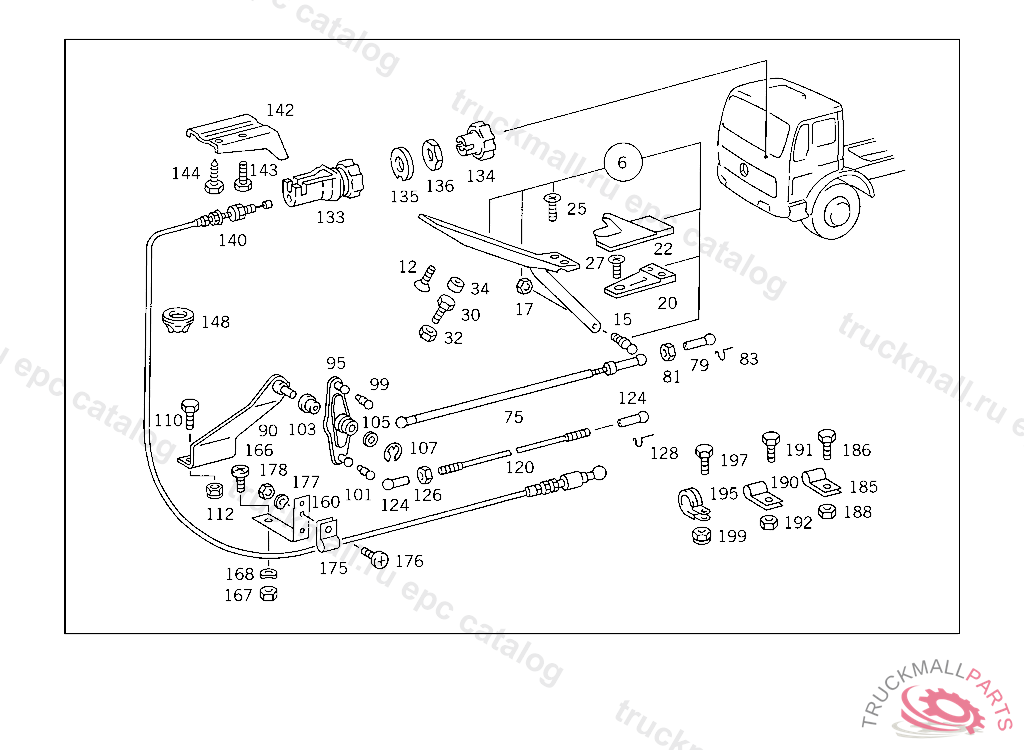

Поз.
Артикул
Описание
6
ACCELERATOR PEDAL , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6243000304
6
ACCELERATOR PEDAL , Replaced By: A6243000304
6
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
12
SCREW ACCELERATOR PEDAL
15
BALL PIVOT LOAD SENSOR
15
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
17
NUT PUMP TO BRACKET
17
NUT , Replaced By: N913004006001
20
SHIM ,4 227106, Replaced By: A3813010284, +001A3813010297
20
SHIM ,4 227107-4 604519, Replaced By: A3813010284, +001A3813010297
20
SHIM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 859957, Replaced By: A6153010084
20
SHIM ACCELERATOR PEDAL
22
BOOT ACCELERATOR PEDAL,4 859957
22
BOOT ,4 227106, Replaced By: A3813010297, +001A6153010084
22
BOOT ,4 227107-4 604519, Replaced By: A3813010297, +001A6153010084
22
BOOT ACCELERATOR PEDAL
25
SCREW ACCELERATOR PEDAL TO CAB M 6X25
27
SCREW PEDAL TO CAB FLOOR
30
SCREW VALVE TO BRACKET, Replaced By: N304014008002
30
SCREW VALVE TO BRACKET
32
NUT
34
STOP ACCELERATOR PEDAL
75
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER, 415 5 014668 416 5 000515 417 4 972023
75
ROD , Replaced By: A3604302992
79
BALL SOCKET PULL ROD TO LEVER
81
NUT BALL PIVOT TO LEVER
83
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
90
BEARING BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A6203000336
90
BEARING BRACKET INTERMEDIATE BEARING
95
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A3813000928
95
LEVER , Replaced By: A6153000628
95
LEVER INTERMEDIATE BEARING
99
BALL PIVOT , Replaced By: A3129910120
99
BALL PIVOT LEVER
101
BALL PIVOT BOTTOM B13X5 MM
103
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
105
COVERING INTERMEDIATE BEARING
105
COVERING , Replaced By: A6153010088
107
LOCK PLATE INTERMEDIATE BEARING
110
SCREW END PIECE TO EXHAUST PIPE M 10X25
112
NUT STRAP TO BRACKET
112
NUT , Replaced By: N910113010000
120
ROD , Replaced By: A3813001715, +001A4069910022, +001N000934008010, +002N071805013402
120
ROD FROM INTERMEDIATE BEARING TO SHAFT
124
BALL SOCKET ROD TO BALL PIVOT
126
NUT
128
SECURING CLIP. CIRCLIP
133
MANUAL CONTROL IDLING ADJUSTMENT
134
KNOB MANUAL CONTROL
134
KNOB , Replaced By: A6153020001
135
FITTED WASHER MANUAL CONTROL
135
LOCK , Replaced By: N000988030003
136
NUT MANUAL CONTROL
140
WIRE CABLE MANUAL CONTROL
140
WIRE CABLE MANUAL CONTROL
140
WIRE CABLE , Replaced By: A3813001130
140
WIRE CABLE , Replaced By: A3813001230
142
BRACKET , Replaced By: A3813020240
142
BRACKET
143
SCREW COVER PLATE TO COVER PLATE M 6 X 12
143
SCREW , Replaced By: N304017006018
144
SHEET METAL SCREW , Replaced By: N914031005208
144
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
148
GROMMET
160
BRACKET , Replaced By: A3833020840
160
BRACKET WIRE CABLE TO FIRE WALL, 415 5 014668 416 5 000515 417 4 972023
166
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
167
NUT PUMP TO BRACKET
167
NUT , Replaced By: N913004006001
168
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
175
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
175
CLAMP DELIVERY AND SUCTION LINES TO STEERING
175
CLAMP , Replaced By: N916016008200
175
CLAMP , Replaced By: A3604300143
175
CLAMP LINE MOUNTING
175
CLAMP , Replaced By: A6739950001
175
CLAMP ,K 147121, Replaced By: N000000000319
176
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
177
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
178
NUT PUMP TO BRACKET
178
NUT , Replaced By: N913004006001
185
CLAMP , Replaced By: N916016008200
185
CLAMP , Replaced By: A3604300143
185
CLAMP ,K 147121, Replaced By: N000000000319
185
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
186
SCREW LICENSE PLATE TO BRACKET
186
SCREW , Replaced By: N304017006020
188
NUT , Replaced By: N913004006001
188
NUT PUMP TO BRACKET
190
CLAMP DELIVERY AND SUCTION LINES TO STEERING
190
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
190
CLAMP LINE MOUNTING
190
CLAMP , Replaced By: A6739950001
191
SCREW , Replaced By: N304017006020
191
SCREW LICENSE PLATE TO BRACKET
192
NUT PUMP TO BRACKET
192
NUT , Replaced By: N913004006001
195
CLAMP , Replaced By: N916016008200
195
CLAMP ,K 147121, Replaced By: N000000000319
195
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
195
CLAMP WIRE CABLE TO BRACKET
197
SCREW END PIECE TO EXHAUST PIPE M 10X25
199
NUT STRAP TO BRACKET
199
NUT , Replaced By: N910113010000
999
GUIDE MANUAL CONTROL
999
BRACKET
999
PAD ACCELERATOR PEDAL
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW COVER PLATE TO BRACKET
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
999
NUT , Replaced By: N913004006001
