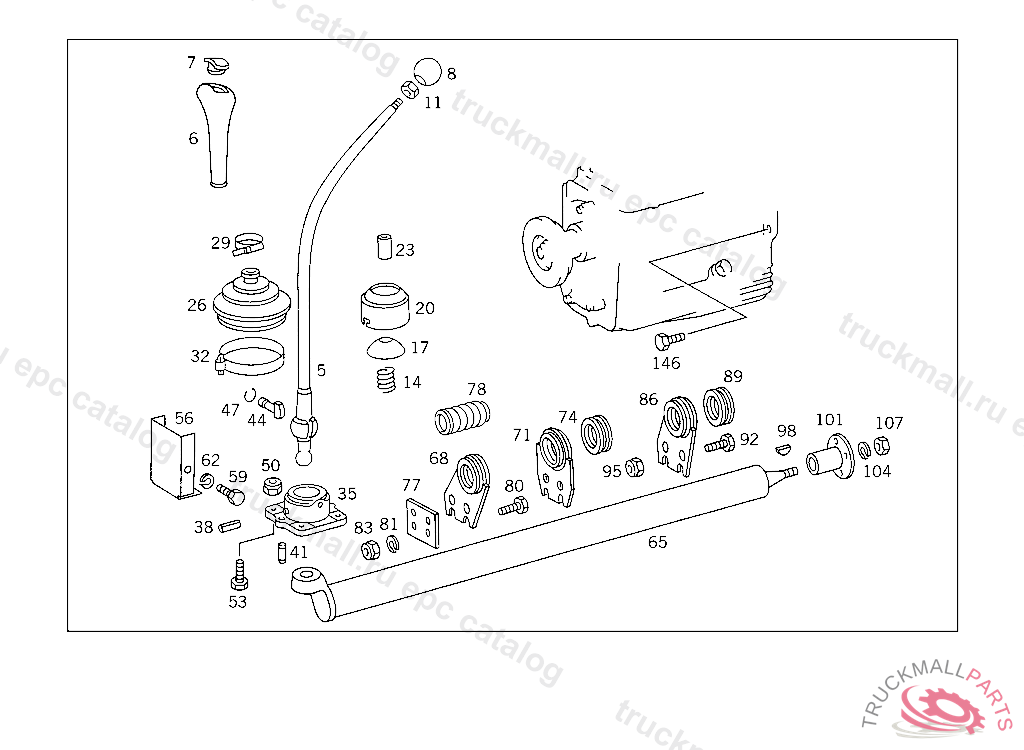

Поз.
Артикул
Описание
5
SHIFT LEVER
8
HANDLE (GEARSHIFT LEVER KNOB)
8
HANDLE
8
HANDLE
11
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
14
SPRING SHIFT CASE,BOTTOM
17
SPHERICAL PIECE GEARSHIFT LEVER LOWER PART,D 203092
20
COVER SHIFTING DOME TO TRANSMISSION CASE,TOP
20
COVER
23
HOSE
26
GUMMISCHUSSKAPPE. BOOT SHIFT LEVER
29
LOOM TIE ELECTRIC CABLE MOUNTING
29
LOOM TIE , Replaced By: A3459977390
32
LOOM TIE , Replaced By: A3829977390
32
LOOM TIE500X8 MM
35
TRANSMISSION CASE COVER , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
38
GROOVED PIN SHIFTING DOME,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
41
CYLINDRICAL PIN ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
44
SLIDING BLOCK , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
44
SLIDING BLOCK
47
SNAP RING , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
50
NUT BRACKET TO SIDE MEMBER
53
SCREW PISTON ROD TO CLUTCH PEDAL
53
SCREW LINES TO BRACKET
56
BEARING COVER
59
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
62
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
65
SHIFTING ROD FRONT 6760 MM
68
GUIDE SHIFTING TUBE
74
BUSHING
74
BUSHING
77
BRACKET SHIFTING TUBE
78
BOOT SHIFTING ROD BEARING NO. 3+4
80
SCREW POWER CYLINDER TO BEARING BRACKET
83
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
86
GUIDE SHIFTING TUBE
89
BUSHING
89
BUSHING
92
SCREW , Replaced By: A4609900601
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
98
WOODRUFF KEY FLANGE TO SHIFTING TUBE
101
CONNECTOR FLANGE TO SHIFTING TUBE
104
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
107
NUT FUEL TANK TO SUPPORT
146
SCREW BRACKET TO RIGHT SIDE MEMBER
999
PLATE
