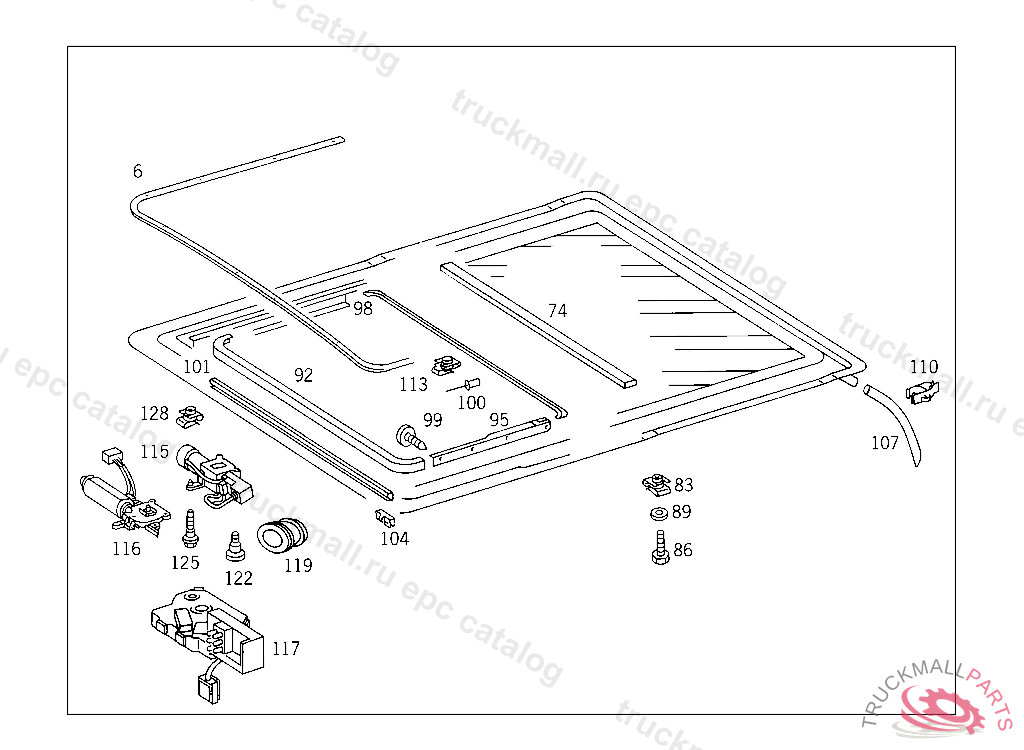

Поз.
Артикул
Описание
6
SEAL BETWEEN TOP AND BOTTOM FRAMES
74
PAD BETWEEN ROOF PANELLING AND BOTTOM FRAME
83
NUT RETAINER ,123 415950
86
SCREW PUMP TO BRACKET
89
WASHER COMPRESSED AIR LINE TO BRACKET
89
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
92
RAIL FRONT
95
RAIL RIGHT
95
RAIL LEFT
98
RAIL REAR
99
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
100
RIVET MOUNTING RAIL TO REINFORCEMENT FRAME
101
COVER RAIL BOTTOM FRAME
101
RAIL BOTTOM FRAME
104
CLIP COVER RAIL TO BOTTOM FRAME,FRONT
107
HOSE WATER DRAIN,FRONT 1100 MM, TO BE ADAPTED DURING ASSEMBLY
110
CLAMP WATER DRAIN HOSE TO REAR PILLAR
113
NUT RETAINER , Replaced By: A3229900091
115
ELECTRIC MOTOR ELECTRIC SLIDING/LIFTING ROOF, F 619720 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM F 619721 WITH CODE 807
116
ELECTRIC MOTOR ELECTRIC SLIDING/LIFTING ROOF, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
117
SWITCH AT MOTOR
119
GROMMET BETWEEN MOUNTING PLATE AND ENGINE
122
SCREW MOTOR TO FRAME
125
SCREW FRONT EXHAUST LINE
128
NUT RETAINER ,123 415950
