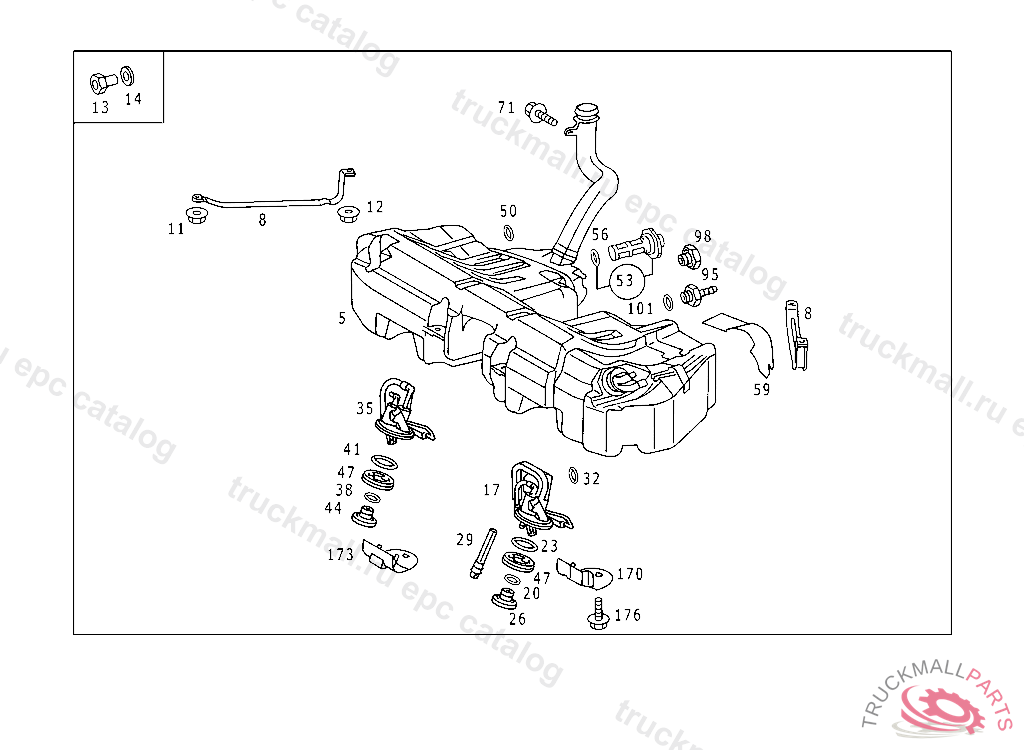

Поз.
Артикул
Описание
5
FUEL TANK , A 782910 F 875910, Replaced By: A2024708701, +002A2024701140, +002A2024710285, +001A2024765301, +001A2024765701, +001A0004769126, +001A2304768726, +001A0019976990, +001A0059970090, +002A0069974690, +002N009021013203
5
FUEL TANK62 L., A 782911 F 875911
8
STRAP , A 782911 F 875911
8
STRAP , A 782910 F 875910
11
NUT SWITCH TO FLOOR PLATE
11
NUT , Replaced By: N913002008004
12
NUT
13
SCREW PLUG , A 782911 F 875911
14
WASHER COVER PLATE TO FRAME
17
SENSOR WITH PUMP LEFT
17
SENSOR WITH PUMP , Replaced By: A2024703941
17
SENSOR WITH PUMP , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2024702541
17
SENSOR WITH PUMP , Replaced By: A2024702241
17
SENSOR WITH PUMP , Replaced By: A2024701041, +001A2025404113
20
SEAL RING LESS PUMP, RIGHT
23
SEAL RING
26
FLANGE
29
FUEL STRAINER
32
SEAL RING
35
SENSOR , Replaced By: A2084701041
35
SENSOR , Replaced By: A2024703341
35
SENSOR , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2024702941
35
SENSOR , Replaced By: A2025401741
35
SENSOR , Replaced By: A2024700641, +001A2025404113
35
SENSOR LESS PUMP, RIGHT, A 165602 F 135856 CAUTION: OLD VERSION OF THE SENSOR ON THE LEFT AND RIGHT (ROUND PLUG) IS NO LONGER FITTED,SO INCLUDE ADAPTER LINE A 202 540 41 13 IN ORDER
38
SEAL RING , Replaced By: A2029970845
41
SEAL RING
44
FLANGE
47
FLANGE FUEL GAUGE SENDER UNIT
50
SEAL RING
53
FUEL STRAINER PARTS KIT
56
SEAL RING
59
SHIM FUEL TANK
71
SCREW PARTITION PANEL TO FRONT FENDER, 003 109847 007 098846 086 007461 093 010729 102,103 304111 105 266568 183 019766 190 024811 193 007801 200 082947 280 003503 283 008887
170
COVERING LEFT
173
COVERING RIGHT
176
SCREWM 6X12
