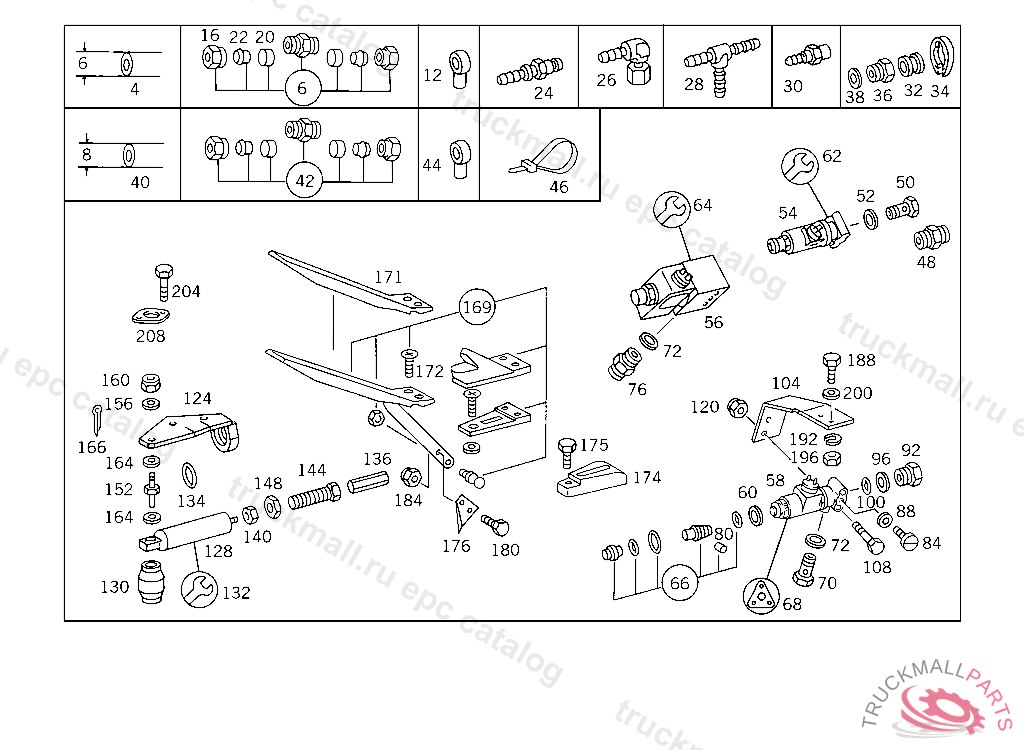

Поз.
Артикул
Описание
4
PLASTIC PIPE RISING PIPE 4X6 MM
4
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
6
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
12
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
12
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
16
UNION NUT
20
SLEEVE LEAK LINE
22
SEAL CONE
22
GLAND , Replaced By: A0019901667
24
CONNECTOR HOSE WIDTH, / I.D., 6 MM
24
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
26
ELBOW FITTING
28
DISTRIBUTOR HOSE WIDTH, 6 MM
30
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
32
SEAL RING , Replaced By: A0009940747
32
LOCK RING LINE CONNECTION
34
LOCK , Replaced By: A0009945448
34
LOCK LINE CONNECTION
36
SCREW. UNION SCREW , Replaced By: A0009973734
36
SCREW. UNION SCREW LINE CONNECTION
38
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
40
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
42
FITTING (PARTS KIT),LINE RUPTURE
44
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
46
LOOM TIE LINE MOUNTING 280 MM
48
T-FITTING. FITTING AT INJECTION PUMP
50
HOLLOW SCREW HEATING CONNECTION
50
HOLLOW SCREW PNEUMATIC VALVE
50
HOLLOW SCREW LINE CONNECTION
52
SEAL RING LINE CONNECTION
52
SEAL RING PNEUMATIC VALVE
52
SEAL RING , Replaced By: N007603010110
54
VALVE (SOLENOID VALVE) HERION
54
VALVE (SOLENOID VALVE) WABCO
56
VALVE (SOLENOID VALVE) HERION
58
VALVE (3/2-WAY SOLENOID VALVE) WABCO
58
VALVE (3/2-WAY SOLENOID VALVE) KNORR
58
VALVE (SOLENOID VALVE)
58
VALVE (3/2-WAY SOLENOID VALVE) EKS
58
VALVE , Replaced By: A0049975736
60
SEAL RINGWABCO
62
REPAIR KITTO 001 997 18 36,001 997 19 36
64
REPAIR KITTO 001 997 34 36,002 997 58 36,
64
REPAIR KIT , Replaced By: A0012608357
66
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
68
GASKET KITKNORR
70
HOLLOW SCREW LINE CONNECTION
70
HOLLOW SCREW HEATING CONNECTION
72
SEAL RING LINE CONNECTION
76
TS DOUBLE FITTING SOLENOID VALVE
80
SEAL RING VALVE TO VALVE
84
SCREW TO PLUG THE FREE CONNECTIONS
88
SEAL RINGBOSCH
92
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
92
SCREW PLUGROCKINGER,TYP 59 U150
92
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
92
SCREW PLUG , Replaced By: N000908012009
96
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
96
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
100
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
104
BRACKET SOLENOID VALVE
108
SCREW AT SIDE MEMBER,REAR M 8X135
108
SCREW FRONT AXLE REGULATING SOLENOID VALVE
108
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
108
SCREW BRACKET TO 3/2-WAY VALVE
108
SCREW TWO-WAY VALVE TO FRAME M 8X140
108
SCREW , Replaced By: N304017008043
108
SCREW , Replaced By: N304014008007
108
SCREW VALVE TO BRACKET M 8X55
120
NUT , Replaced By: N913004008001
120
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
120
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
124
BRACKET POWER CYLINDER
128
CYLINDER INCREASE IN NUMBER OF REVOLUTIONS KNORR
128
CYLINDER INTERMEDIATE SPEED STOP
130
BUSHING"WABCO"
132
REPAIR KITTO 000 430 48 26,KNORR
134
SEAL RING INTERMEDIATE SPEED STOP
136
PIN INTERMEDIATE SPEED STOP
140
NUT
144
SLEEVE INTERMEDIATE SPEED STOP
148
NUT CHECK VALVE TO AIR RESERVOIR
152
PIN CYLINDER TO BRACKET
156
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
160
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
160
NUT , Replaced By: N913004008001
164
WASHER , Replaced By: N000125008443
164
WASHER EXHAUST MUFFLER TO STRAP
166
COTTER PIN CYLINDER TO BRACKET
169
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
171
PAD ACCELERATOR PEDAL
172
SCREW ACCELERATOR PEDAL
174
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
175
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
176
ANGLE ACCELERATOR PEDAL
180
SCREW , Replaced By: N304017006016
180
SCREW PUMP TO BRACKET
184
NUT PUMP TO BRACKET
184
NUT , Replaced By: N913004006001
188
SCREW , Replaced By: N304017008027
188
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
192
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
196
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
196
NUT , Replaced By: N913004008001
200
WASHER , Replaced By: N000125008443
200
WASHER EXHAUST MUFFLER TO STRAP
204
SCREW DISTRIBUTOR TO CAB
204
SCREW DISTRIBUTOR TO CAB
204
SCREW , Replaced By: N000933006151
208
REINFORCEMENT DISTRIBUTOR TO CAB
999
CONNECTOR
999
CONNECTOR
999
ACCELERATOR PEDAL , Replaced By: A6243000304
999
PIN , Replaced By: A4421440574
999
PIN , Replaced By: A4221440174, +001N999900008004
999
PIN , Replaced By: A4030720574
999
FITTING , Replaced By: A0029906071
999
FITTING , Replaced By: A0029905971
999
VALVE , Replaced By: A0029975836
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
VALVE ,4 188089, Replaced By: A0029975836
999
VALVE , Replaced By: A0039971836
999
VALVE , Replaced By: A0039971736
999
REPAIR KIT , Replaced By: A0024302260
999
CYLINDER , Replaced By: A0004304826
999
CYLINDER , Replaced By: A0000720812
