Mercedes A2034761227 - Шланг

C 320 CDI 203.020

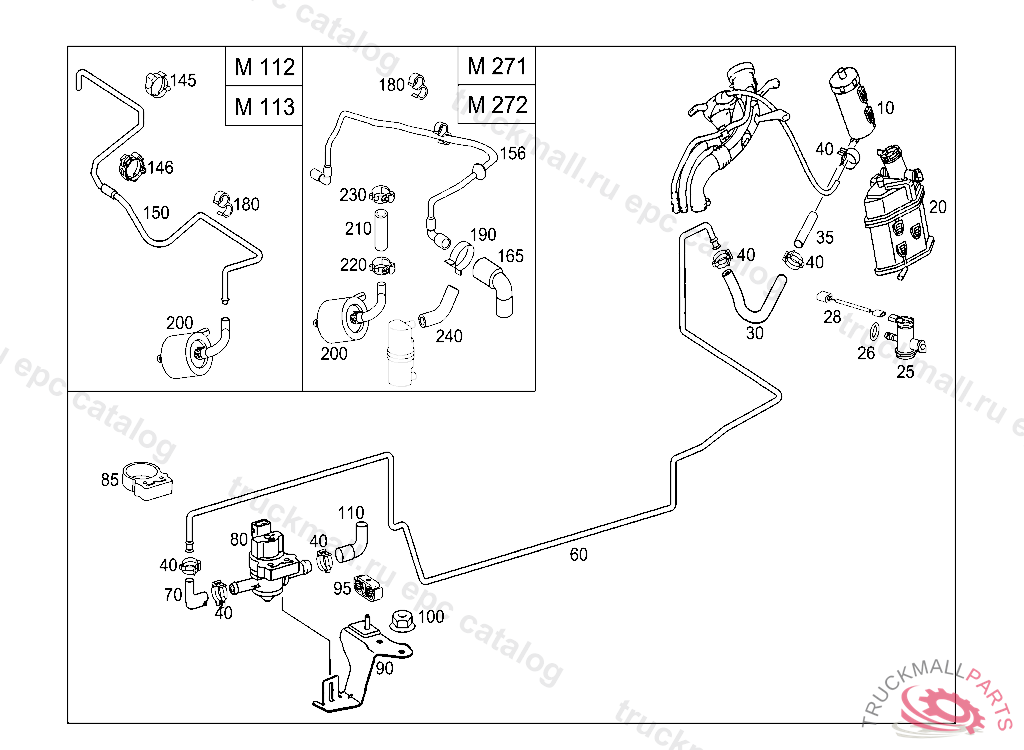

47 FUEL SYSTEM - 060 CLOSED FUEL-EVAPORATION-CONTROL SYSTEM

Поз.
Артикул
Описание
26
A0299978448
SEAL RING VALVE, J 01715720040430805
35
A2034760332
VALVE REGENERATION LINE
60
A2034713515
BREATHER PIPE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE, A 88072320051130 E 02000020070101
60
A2034713215
PURGE LINE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE, A 76563320041217 E 00000120000101 A 88072220051130 E 01999920070101, Replaced By: A2034713515, +008A0009954075, +008A2014760840
85
A0004762936
BRACKET REGENERATION VALVE
210
A2304768726
HOSE FROM FEED LINE TO FILTER 240 MM
230
A0059971990
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
240
A2034761227
HOSE FLUID RESERVOIR
