Поз.
Артикул
Описание

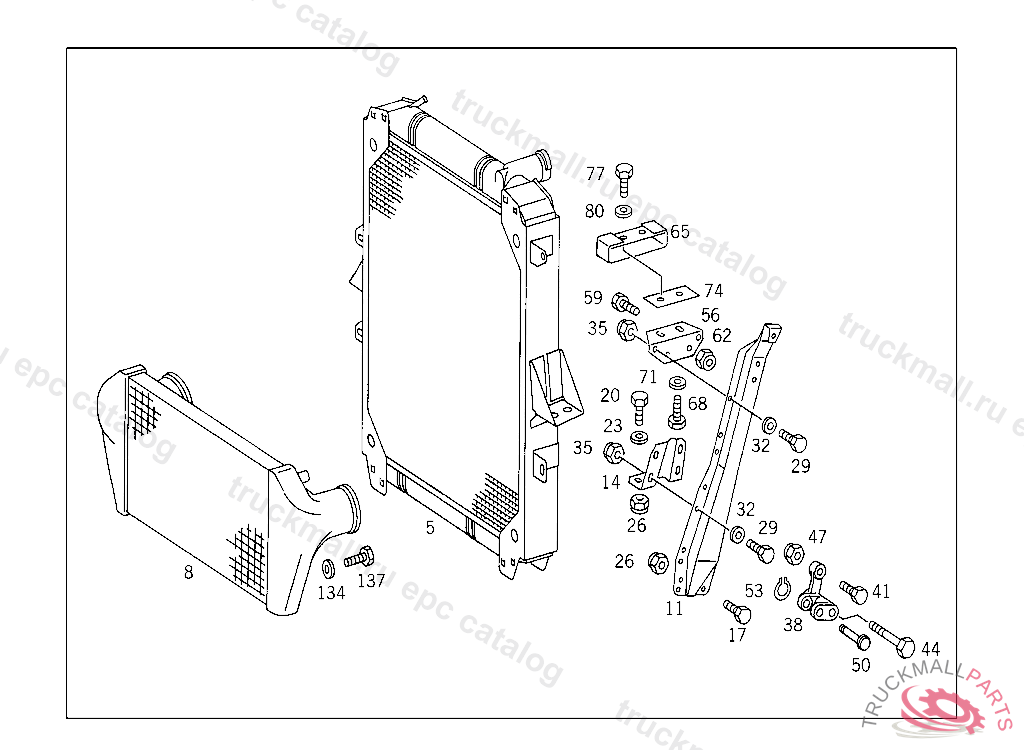

5
RADIATOR WATER
5
RADIATOR WATER
5
RADIATOR WATER
5
RADIATOR WATER
11
SUPPORT RADIATOR
14
STAY RIGHT
14
STAY RIGHT
14
STAY LEFT
14
STAY LEFT
17
SCREW BRACKET TO SIDE MEMBER
20
SCREW RETURN AND SUCTION LINES TO FRAME, FRONT M 12X40
23
WASHER SUPPORT TO FRAME,D 127794
26
NUT BRACKET TO SIDE MEMBER
29
SCREW , Replaced By: N304017010040
29
SCREW CROSS MEMBER TO SIDE MEMBERS
32
WASHER GROUND CABLE
35
NUT BRACKET TO SIDE MEMBER,XB209706
38
BRACKET LEFT,1D 006005
38
BRACKET RIGHT,1D 006005
41
SCREW BRACKET AND SUPPORT TO SIDE MEMBER M 12X55,1D 006005
44
SCREW SPRING CLAMP TO SPRING LEAF NO.3, TO 682 320 72 02, M 12X110
47
NUT BRACKET TO SIDE MEMBER
50
PIN SHOCK ABSORBER TO BRACKET,1D 006005
53
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
56
BRACKET RADIATOR MOUNTING
59
SCREW , Replaced By: N304017010040
59
SCREW CROSS MEMBER TO SIDE MEMBERS
62
NUT BRACKET TO SIDE MEMBER,XB209706
65
RUBBER MOUNTING RADIATOR
65
RUBBER MOUNTING RADIATOR
65
RUBBER MOUNTING RADIATOR
68
SCREW CROSS MEMBER TO SIDE MEMBERS
71
WASHER GROUND CABLE
74
SHIM RUBBER MOUNTING TO BRACKET
77
SCREW COLD START SYSTEM TO BRACKET
80
WASHER GROUND CABLE
999
SEAL RING TOP AND BOTTOM, INSIDE TO 384 501 72 01,74 01,386 501 74 01
