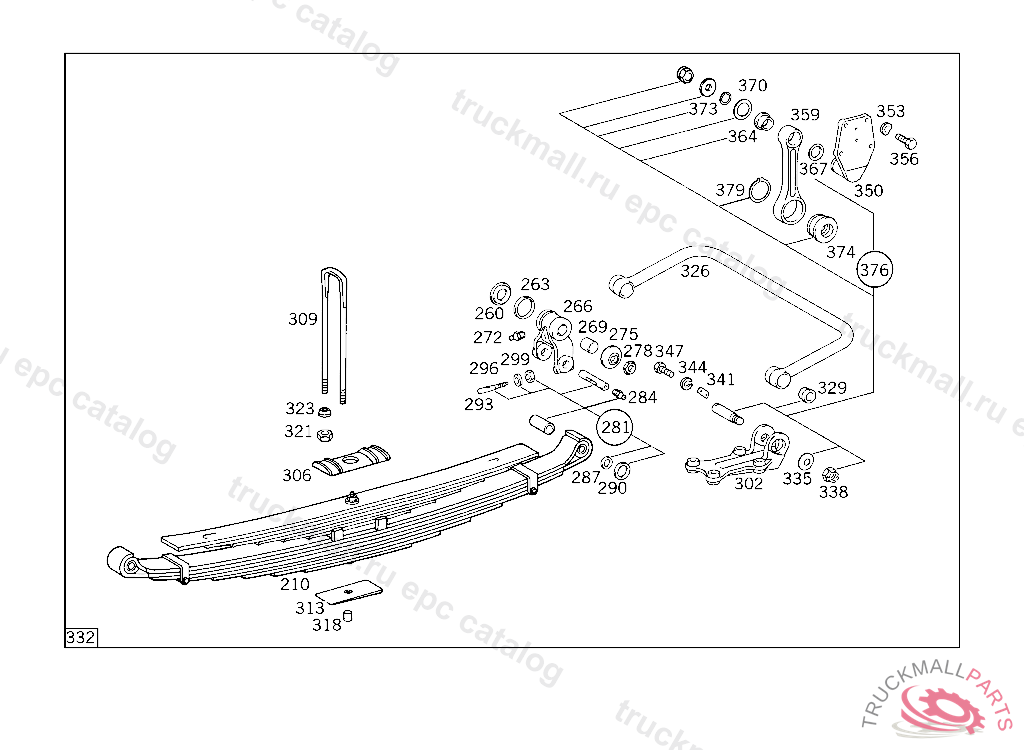

Поз.
Артикул
Описание
210
REAR SPRING 8-LEAF,WITH 6-LEAF HELPER SPRING
260
THRUST WASHER , Replaced By: A6213250062
260
THRUST WASHER SHACKLE TO REAR-SPRING REAR BRACKET, INSIDE
263
SEAL RING SHACKLE TO REAR-SPRING REAR BRACKET
266
SHACKLE , Replaced By: A6213250020, +002A3353240050
269
BUSHING
272
GREASE NIPPLE FOR SPRING
275
THRUST WASHER , Replaced By: A6213250162
275
THRUST WASHER SHACKLE TO REAR-SPRING REAR BRACKET, OUTSIDE
278
NUT SHACKLE TO REAR-SPRING REAR BRACKET
281
REPAIR KIT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3895860132
281
REPAIR KIT , Replaced By: A3893200065
281
SHACKLE PIN (PARTS KIT),REAR SPRING EYE, ON RELOCATION OF SPRING SHACKLES,SUPPLY ADDITIONALLY:2X 335 324 00 50
284
GREASE NIPPLE PROTECTIVE TUBE
287
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
287
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
287
WASHER , Replaced By: A3523231076
290
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
293
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
296
WASHER , Replaced By: N000125010532
296
WASHER RADIATOR TO RUBBER MOUNTING
299
NUT , Replaced By: N910113010000
299
NUT STRAP TO BRACKET
306
SPRING CLAMPING PLATE REAR SPRING TO REAR AXLE
306
SPRING CLAMPING PLATE REAR SPRING TO REAR AXLE
309
U-BOLT REAR AXLE TO TO REAR SPRINGS 575 MM
313
PAD REAR SPRING TO REAR AXLE
318
PIN BEARING BRACKET
321
NUT U-BOLT
323
WASHER STEEL VERSION
326
TORSION BAR REAR AXLE
329
BUSHING TORSION BAR TO BEARING BRACKET
332
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE4 707618, Replaced By: A3875860232
332
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE4 707618, Replaced By: A3875860232
335
DISC SPRING TORSION BAR TO BEARING BRACKET
338
NUT TORSION BAR TO BEARING BRACKET
341
LOCK SPRING PIN LOCK
344
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
347
SCREW CLAMP TO BRACKET AND TO PIPE
350
BEARING BRACKET , Replaced By: A3933200678, +001A3933260152, +001N913004016004
350
CONSOLE , Replaced By: A3933200678
350
CONSOLE , Replaced By: A3933261163, +001N000961016081
350
BEARING BRACKET SHACKLE TO FRAME,5 904660
353
SPRING WASHER BRACKET TO TIMING CASE
356
SCREW BRACKET TO SUPPORT
359
SHACKLE ,4 707917, Replaced By: A3873260647, +001A3873260281
359
SHACKLE STABILIZER,5 904660
364
BUSHING SHACKLE TO BEARING BRACKET,5 904660
367
SPACER WASHER , Replaced By: A3873230252
367
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
370
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
373
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
373
NUT COMBINATION CYLINDER TO BEARING BRACKET
374
RUBBER MOUNTING TORSION BAR,4 707917
374
RUBBER MOUNTING SHACKLE TO TORSION BAR,5 904660
376
REPAIR KIT , Replaced By: A3873200128
376
REPAIR KIT TORSION BAR MOUNTING,4 707917
376
REPAIR KIT , Replaced By: A3873200528
376
REPAIR KIT TORSION BAR MOUNTING,4 707918
379
LOCK RING SHACKLE TO TORSION BAR,5 904660
999
SCREW
999
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
999
SCREW SHACKLE TO CONSOLE
999
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
999
SCREW BEARING BRACKET TO FRONT AXLE M 20X125,5 530466
999
STUD BOLT
999
STUD BOLT
999
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
999
LOCK RING SHACKLE TO BEARING BRACKET,965965
999
WASHER SHACKLE TO BEARING BRACKET,965965
999
COTTER PINTO 000 429 16 30
999
COTTER PIN
999
SPRING LEAFNO.4
999
SPRING LEAFNO.9
999
SPRING LEAFNO.7
999
SPRING LEAFNO.6
999
SPRING LEAFNO.5
999
SPRING LEAFNO.12
999
SPRING LEAFNO.2
999
SPRING LEAF , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6563240044
999
SPRING LEAFNO.5
999
SPRING LEAFNO.4
999
SPRING LEAF , Replaced By: A6563240041
999
SPRING LEAFNO.10
999
SPRING LEAFNO.9
999
SPRING LEAFNO.11
999
REPAIR KIT , Replaced By: A3953200165
999
REPAIR KIT , Replaced By: A3955860332
999
SHACKLE PIN , Replaced By: A3955860332
999
SHACKLE PIN , Replaced By: A3955860232
999
SHACKLE PIN PARTS KIT
999
BEARING REAR AXLE TO TO REAR SPRINGS
999
SHACKLE PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3895860132
999
SPRING LEAFNO.7
999
SPRING LEAFNO.6
999
SPRING LEAF , Replaced By: A6563240344
999
SPRING LEAF , Replaced By: A6563240343
999
SPRING LEAF , Replaced By: A6563240342
999
SPRING LEAF , Replaced By: A6563240541
999
SPRING LEAF , Replaced By: A6563240318
999
SPRING LEAF , Replaced By: A6563240317
999
SPRING LEAFNO.8
999
SPRING LEAF , Replaced By: A3893240546
999
SPRING LEAF , Replaced By: A3893240545
999
SPRING LEAF , Replaced By: A3893240544
999
SPRING LEAF , Replaced By: A3893240543
999
SPRING LEAF , Replaced By: A3893240542
999
SPRING LEAF , Replaced By: A3893240541
999
SPRING LEAF , Replaced By: A3893240019
999
SPRING LEAF , Replaced By: A3893240518
999
SPRING LEAF , Replaced By: A3893240517
999
SPRING LEAF , Replaced By: A3893240516
999
SPRING LEAF , Replaced By: A6563240219
999
SHIM FRONT SPRINGS TO FRONT AXLE
999
SPRING LEAF , Replaced By: A6593210422
999
SHACKLE PIN , Replaced By: A3955860332
999
SHACKLE PIN , Replaced By: A3955860232
999
SPRING LEAF , Replaced By: A3873210122
999
SPRING LEAF , Replaced By: A6593210421
999
SPRING LEAFNO.10
999
SPRING LEAF , Replaced By: A6593210619
999
SPRING LEAF , Replaced By: A6593210617
999
SPRING LEAF , Replaced By: A6593210616
999
SPRING LEAF , Replaced By: A6593210615
999
SPRING LEAF , Replaced By: A6593210714
999
U-BOLT , Replaced By: A3873310925
999
SHACKLE PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3895860132
999
SCREW , TO BE ADAPTED DURING ASSEMBLY, Replaced By: N000960020084
999
WASHER SHACKLE TO CONSOLE,965965
