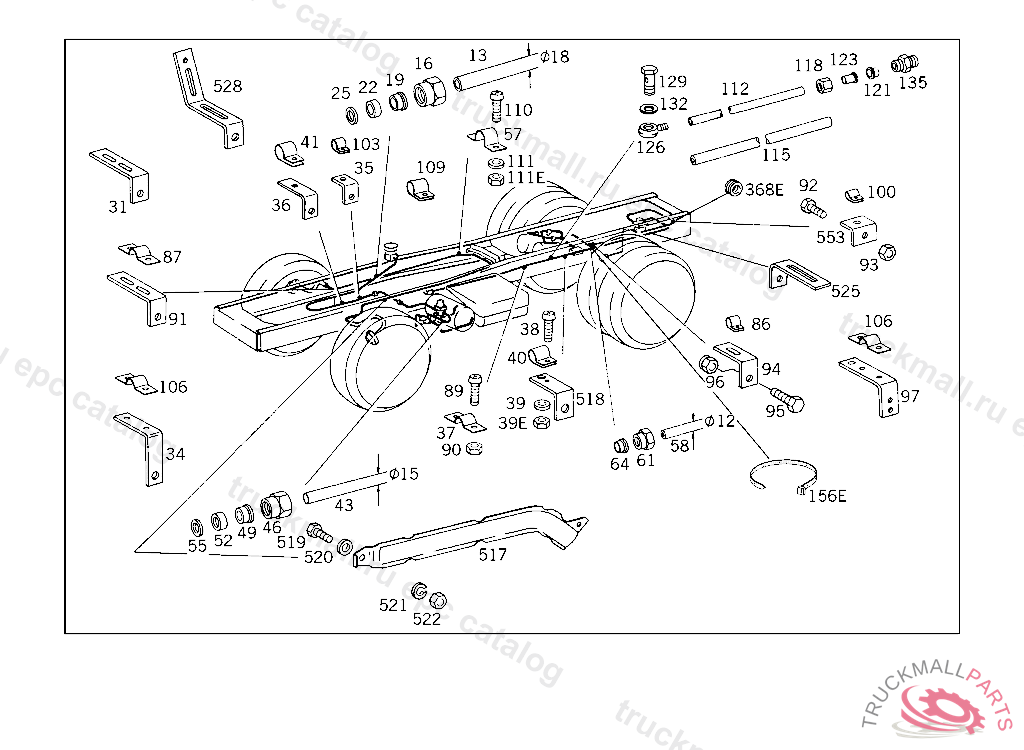

Поз.
Артикул
Описание
13
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
16
UNION NUT , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
19
SEAL CONE LINE MOUNTING
19
GLAND , Replaced By: A0019901167
22
THRUST RING , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
25
SEAL RING LINE CONNECTION
25
SEAL RING , Replaced By: N915045015100
31
BRACKET ,4 360020
34
BRACKET , 10/20 FROM CHASSIS 4 191896, 50/60 FROM CHASSIS 4 1895464 261891
35
BRACKET SENSOR CABLE TO FRONT AXLE
35
BRACKET , Replaced By: A3852670040
36
BRACKET LINE MOUNTING
36
BRACKET , Replaced By: A3914290140
37
CLAMP LINE TO BRACKET, 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
38
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
39
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
40
CLAMP FEED LINE TO THERMOSTAT
41
CLAMP DELIVERY AND SUCTION LINES TO STEERING
41
CLAMP , Replaced By: A6739950001
46
UNION NUT BUTT SCREW CONNECTION
49
GLAND LINE CONNECTION
52
THRUST RING BUTT SCREW CONNECTION
55
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
55
SEAL RING , Replaced By: N007603012121
57
CLAMP LINE MOUNTING
57
CLAMP , Replaced By: A3609950210
58
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
61
UNION NUT LINE CONNECTION, Replaced By: N000000006239
64
SEAL CONE LINE CONNECTION
64
GLAND , Replaced By: A0019901967
86
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
87
CLAMP 3/2-WAY SOLENOID VALVE
89
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
90
NUT PUMP TO BRACKET
90
NUT , Replaced By: N913004006001
91
BRACKET OIL LINE MOUNTING
91
BRACKET , Replaced By: A3464296040
92
SCREW PIPE CLAMP
92
SCREW , Replaced By: N304017008021
93
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
93
NUT , Replaced By: N913004008001
94
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
94
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
94
BRACKET , Replaced By: A3812950440
95
SCREW PIPE CLAMP
95
SCREW , Replaced By: N304017008021
96
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
96
NUT , Replaced By: N913004008001
97
BRACKET BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
100
CLAMP , Replaced By: A3604300143
100
CLAMP , Replaced By: N916016008200
100
CLAMP ,K 147121, Replaced By: N000000000319
103
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
106
CLAMP12 MM
109
CLAMP LINE MOUNTING
109
CLAMP , Replaced By: A6739950001
109
CLAMP DELIVERY AND SUCTION LINES TO STEERING
110
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
111
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
115
INSULATING HOSE
118
UNION NUT LINE CONNECTION
121
GLAND LINE CONNECTION
123
SLEEVE , Replaced By: N915062006000
123
SLEEVE LINE CONNECTION
126
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
126
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
126
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
129
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
132
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
135
FITTING (PARTS KIT),LINE RUPTURE
135
FITTING , Replaced By: A0029905971
135
FITTING , Replaced By: A0039978972
517
BRACKET PLASTIC LINES TO FRAME
518
BRACKET FUEL LINES TO TRANSMISSION
518
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
519
SCREW BRACKET TO CROSS CONNECTION STRUT
519
SCREW , Replaced By: N304017008034
520
WASHER ,193 004314 190 030441 280 009607 283 019509
521
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
522
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
522
NUT , Replaced By: N913004008001
525
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
525
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
525
BRACKET , Replaced By: A3812950440
553
ANGLE LINE MOUNTING
999
REPAIR KIT SEAL RING BOSCH,209
999
REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITTO 001 431 84 06,KNORR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE BOSCH
999
REPAIR KITTO 001 431 30 06,WABCO NR.3400,395.312,325,326,412,425 4 424733395.315,316,322,342,344,352,354,372,415,422,442,443,444,452,453,454,472 4 611513
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
REPAIR KIT SPRING LOAD ACCUMULATOR TO 005 420 98 18,WABCO
999
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
999
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
999
REPAIR KITTO 001 431 47 06,WABCO 2210, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT CHECK VALVE TO 002 429 43 44
999
BRAKE HOSE , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
999
BRAKE HOSE , Replaced By: A0004297335
999
ELBOW FITTING
999
DISTRIBUTOR ,4 342862
999
SEAL RING , Replaced By: N915045012100
999
LINE , Replaced By: A0005516156
999
ELBOW FITTING AT AIR COMPRESSOR, 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
999
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
FITTING LEFT AND RIGHT BRAKE HOSES
999
LINE , Replaced By: A0005516456
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
LINE , Replaced By: A0005516256
999
CUPTO 008 420 97 18, 008 420 90 18, BOSCH
999
PROTECTIVE CAP ,5 962906
999
PROTECTIVE CAP , Replaced By: A0004210887
999
GUIDE , Replaced By: N071752014000
999
PROTECTIVE CAP , Replaced By: A0004217187
999
GUIDETO 006 420 28 18,WABCO
999
BLEEDER VALVE , Replaced By: A0004310265
999
BLEEDER VALVE , Replaced By: A0004310265
999
VALVEBOSCH
999
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
999
BOOTTO 006 420 28 18,15 18,WABCO
999
SLAVE CYLINDER , Replaced By: A0074202118
999
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
999
CLAMP , Replaced By: N000000000667
999
CLAMP , Replaced By: A0059970190
999
CLAMP AT PRESSURE REGULATOR,4 281212 MODELS 002,003,006,007,009,034,UP TO CHASSIS 4 424733,MODELS 134 UP TO CHASSIS 4 611513
999
CLAMP COMPRESSED AIR LINE TO BRACKET
999
SLEEVE LINE CONNECTION
999
SLEEVE LEAK LINE
999
FITTING
999
BANJO UNION HEATING CONNECTION,K 169122
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
999
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
999
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
NUT TRISTOP CYLINDER TO BEARING BRACKET,4 356701
999
NUT , Replaced By: N910113010000
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT SUPPORT TO SIDE MEMBER
999
NUT STRAP TO BRACKET
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD , Replaced By: N900331008420
999
CLAMP
999
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW APPARATUS PLATE M 6X45
999
NUT 3/2-WAY VALVE TO CAB,4 685151
999
NUT , Replaced By: N080705026003
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
FITTING , Replaced By: A0009905070
999
FITTING , Replaced By: A0009907470
999
FITTING , Replaced By: A0009907771
999
FITTING ,4 667210
999
FITTING , Replaced By: A0029971172
999
NUT CHECK VALVE TO AIR RESERVOIR
999
FITTING DIAPHRAGM CYLINDER,CONNECTION:
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
DOUBLE FITTING , Replaced By: A0019972872
999
HOSE LEAK LINE, ORDER BY THE METER
999
YOKETO 008 420 95 18,008 420 97 18,BOSCH
999
INSULATING HOSE RED, ORDER BY THE METER
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N009021008213
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEAL RING LINE CONNECTION
999
SEAL RING LINE CONNECTION
999
SEAL RING CONTROL VALVE,5 093991
999
FITTING , Replaced By: A0019902771
999
CONNECTION FITTING ,880809
999
CONNECTION FITTING , Replaced By: A0039979172
999
SCREW-IN FITTING AT DISTRIBUTOR,986864
999
SCREW HAND BRAKE VALVE TO CAB
999
SCREW CLAMP TO BATTERY CASE
999
SCREW , Replaced By: N308676016013
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW , Replaced By: N308676012026
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017008028
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008027
999
SCREW REAR AXLE REGULATING SOLENOID VALVE
999
SCREW , Replaced By: N304017006027
999
LOCK WASHER , Replaced By: N912004010102
999
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
999
COTTER PIN WHEEL CYLINDER TO SLACK ADJUSTER,4 637963
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
COTTER PIN , UP TO IDENT NO. A 029714 AND UP TO TRANSMISSION 017740
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
999
BRACKET , NOT USED
999
LINE , Replaced By: A6254293501
999
BREATHER , Replaced By: A3933280065
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
GUIDE SIGN
