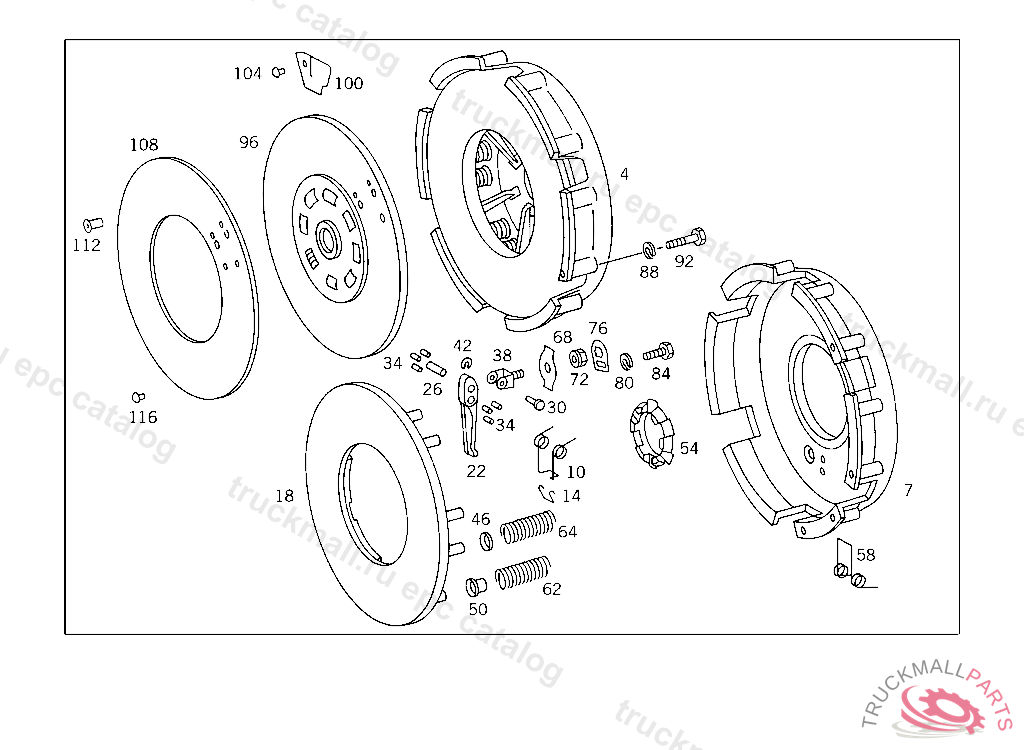

Поз.
Артикул
Описание
4
CLUTCH PRESSURE PLATE , Replaced By: A0032502604
4
CLUTCH PRESSURE PLATE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 850353, Replaced By: A0032507004
4
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
4
CLUTCH PRESSURE PLATE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 155611, Replaced By: A0032502604
7
HOUSING
10
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
10
SPRING SUSPENDED BELOW LEAF SPRING
14
CLAMP RELEASE FLANGE TO RELEASE LEVER
18
PRESSURE PLATE
18
PRESSURE PLATE CLUTCH PRESSURE PLATE
22
RELEASE LEVER CLUTCH ACTUATION
26
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
26
SPINDLE RELEASE LEVER,CLUTCH PRESSURE PLATE
30
SPINDLE , Replaced By: A0002522816, +001A1249945241
30
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
30
SPINDLE FOR BRACKETS
34
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
38
BRACKET RELEASE LEVER
38
BRACKET FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
42
LOCK PLATE LEVER TO BRACKET
42
LOCK PLATE RELEASE LEVER TO SHAFT
46
INSULATING WASHER
50
SLEEVE CLUTCH PRESSURE PLATE
54
FLANGE , Replaced By: A0002521245
54
FLANGE CLUTCH PRESSURE PLATE
58
SPRING , Replaced By: A0002523227
58
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
58
SPRING SUSPENDED BELOW LEAF SPRING
62
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
62
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
64
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
64
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
68
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
68
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
72
NUT , Replaced By: A0002523072
72
NUT FOR BRACKETS
76
LOCK FOR BRACKETS
80
LOCK WASHER BRACKET TO STEERING COLUMN END
84
SCREW STEP SWITCH AM 5X10
84
SCREW RELEASE LEVER,BRACKET
88
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
92
SCREW CLUTCH TO FLYWHEEL
92
SCREW , Replaced By: N304017010050
92
SCREW , Replaced By: N304017010055
96
CLUTCH DISC ASBESTOS-FREE LINING
96
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
96
CLUTCH DISC , Replaced By: A0032500003
96
CLUTCH DISC , Replaced By: A0052500103
96
CLUTCH DISC
96
CLUTCH DISC
100
LEAF SPRING , Replaced By: A0002523319
100
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523919, +002A0002523975
100
LEAF SPRING
104
RIVET , Replaced By: A0002522075
104
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
104
RIVET LEAF SPRING TO CLUTCH DISC
108
CLUTCH LINING , Replaced By: A0012528310
108
CLUTCH LINING , Replaced By: A0022520010
108
CLUTCH LINING ASBESTOS-FREE
108
CLUTCH LINING , Replaced By: A0012522010
108
CLUTCH LINING , Replaced By: A0012522010
108
CLUTCH LINING
112
RIVET , Replaced By: A0002523375
112
RIVET , Replaced By: A0002523775
112
RIVET , Replaced By: A0002524675
112
RIVET , Replaced By: A0002524875
112
RIVET LINING WITH CLUTCH DISC
112
RIVET LINING WITH CLUTCH DISC
116
RIVET , Replaced By: A0002524875
116
RIVET LINING WITH CLUTCH DISC
999
SNAP RING LEVER TO RELEASE SHAFT,4 601609
999
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
999
LOCK RINGTO 000 553 37 01,000 553 39 01,
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
999
LEVER (PARTS KIT),CLUTCH ACTUATION
999
PROTECTIVE CAP , Replaced By: A0004210887
999
VALVE CLUTCH SLAVE CYLINDER
999
PIN CLUTCH ACTUATION
999
SEAL RING CLUTCH ACTUATION
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019972141
999
VALVE , Replaced By: A3075530107
999
PROTECTIVE CAP ,5 962906
999
PROTECTIVE CAP , Replaced By: A0004210887
999
PROTECTIVE CAP , Replaced By: A0004217187
999
BOOT , Replaced By: A0005863129
999
LOCK
999
PRESSURE PLATE , ON ELIMINATION OF INSULATING WASHER 000 252 00 24, Replaced By: A0002524912
999
HOUSING
999
CLAMP , Replaced By: A0002523227
999
PLUG BELL HOUSING
