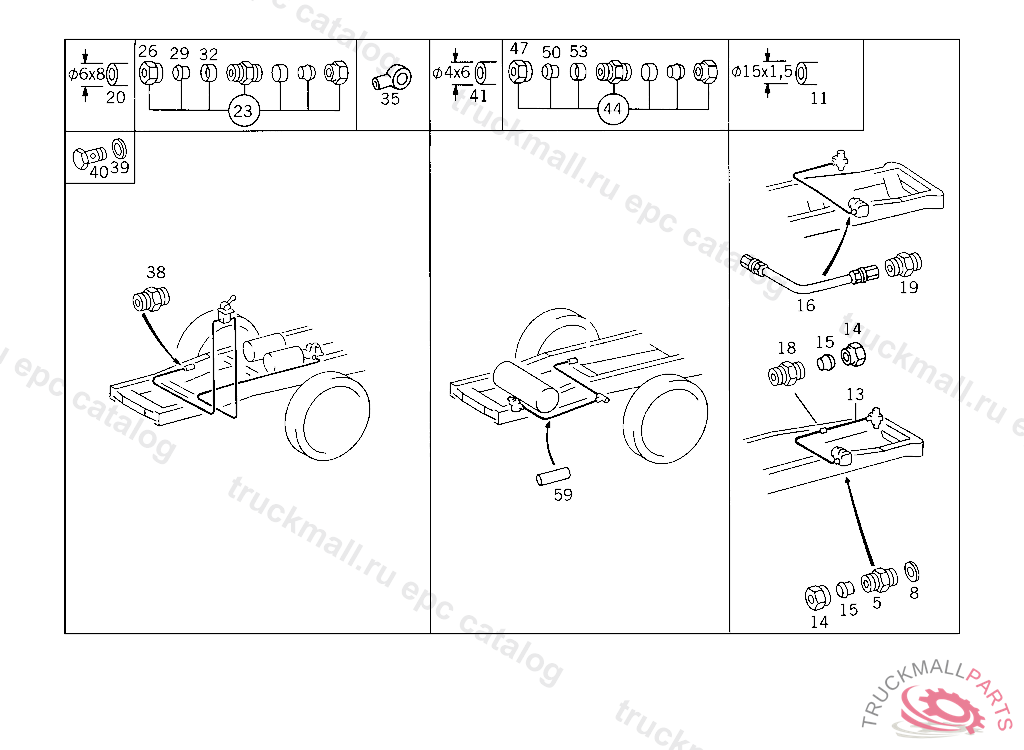

Поз.
Артикул
Описание
5
CONNECTOR
8
SEAL RING AT AIR COMPRESSOR
11
LINE FROM FITTING TO HOSE 15X1.5 MM,A 101596
11
LINE FROM FITTING TO HOSE 15X1.5 MM,A 101596
11
LINE FROM FITTING TO HOSE,A 101597
13
LINE FROM PRESSURE REGULATOR TO FITTING
14
UNION NUT LINE CONNECTION
15
GLAND LINE CONNECTION
16
HOSE AIR COMPRESSOR LINE,C 055789
18
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
19
FITTING COMPRESSED AIR HOSE
20
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
23
FITTING (PARTS KIT),LINE RUPTURE
26
UNION NUT LINE CONNECTION
29
GLAND LINE CONNECTION
32
SLEEVE LINE CONNECTION
35
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
35
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
35
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
38
CONNECTION FITTING ,880809
39
SEALING RING. SEAL RING ENGINE BREATHING
39
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
39
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
39
SEAL RING LINE CONNECTION
40
HOLLOW SCREW
40
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
40
HOLLOW SCREW
41
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
44
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
47
UNION NUT
50
GLAND , Replaced By: A0019901667
53
SLEEVE LEAK LINE
59
INSULATING HOSE COLOR CODE GREEN
59
INSULATING HOSE COLOR CODE BLUE,YB227219
59
INSULATING HOSE8X0,01 MM
59
INSULATING HOSE
59
INSULATING HOSE COLOR CODE BROWN
59
INSULATING HOSE RED, ORDER BY THE METER
59
INSULATING HOSE RED, ORDER BY THE METER
59
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
59
INSULATING HOSE
