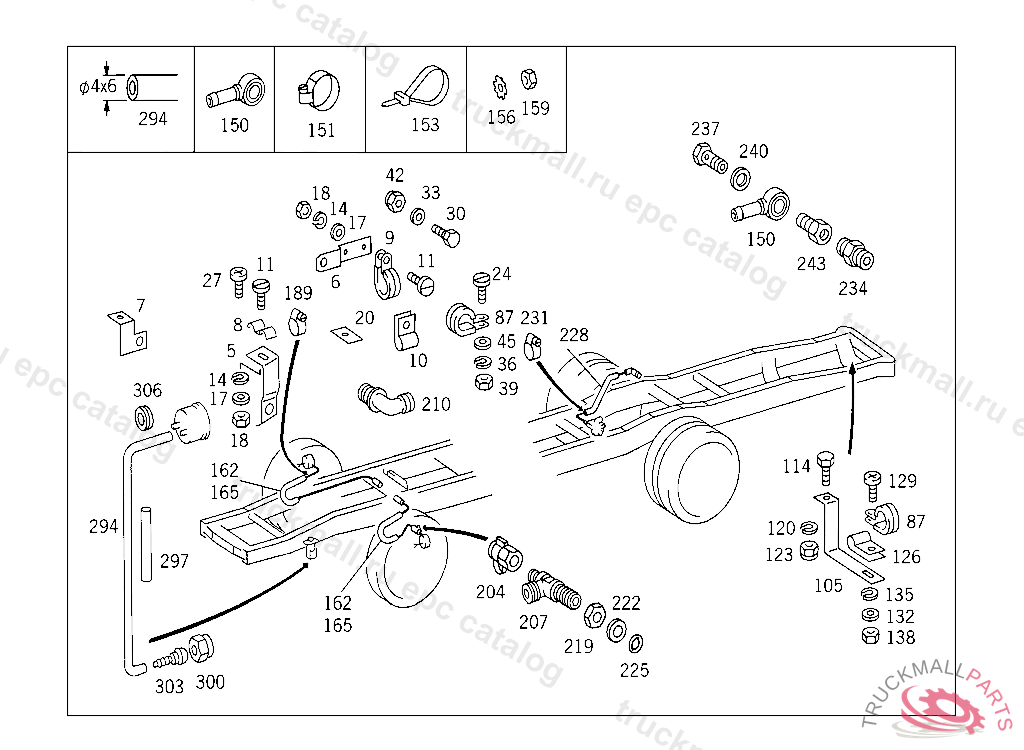

Поз.
Артикул
Описание
6
BRACKET COMPRESSED AIR LINE, BRAKE
9
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
11
SCREW FUEL LINE TO BRACKET
14
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
17
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
18
NUT CLAMP TO BRACKET
20
BRACKET COMPRESSED AIR LINE TO CROSS MEMBER "3,4", USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
24
SCREW COMPRESSED AIR LINE TO ENGINE MOUNTING SUPPORTING ARM
27
SCREW CLAMP TO BRACKET
36
LOCK WASHER CABLE TO FUSE BOX
39
NUT CLAMP TO BRACKET
39
NUT
45
WASHER PLUG SOCKET TO BRACKET
87
CLAMP DELIVERY AND SUCTION LINES TO FRAME
87
CLAMP
87
CLAMP OIL FILLER PIPE TO BRACKET
87
CLAMP BRAKE HOSE BRACKET
87
CLAMP SENSOR CABLE TO FRONT AXLE
87
CLAMP LINE MOUNTING
87
CLAMP HOSE TO BRACKET 25/20,5 206397
87
CLAMP , Replaced By: A3829950101
87
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
87
CLAMP ,K 147121, Replaced By: N000000000319
87
CLAMP LINE MOUNTING
87
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
87
CLAMP DE-AERATION LINE
87
CLAMP , Replaced By: A3829950701
105
BRACKET COMPRESSED AIR LINES
114
SCREW BRACKET TO BUMPER,LEFT M 10X25
114
SCREW , Replaced By: N304017010002
120
LOCK WASHER FUSE
123
NUT , Replaced By: N910113010000
126
CLAMP , Replaced By: A6739950001
129
SCREW LINE MOUNTING M 6X25
132
WASHER PLUG SOCKET TO BRACKET
135
LOCK WASHER CABLE TO FUSE BOX
138
NUT CLAMP TO BRACKET
138
NUT
150
T-FITTING HOSE WIDTH, / I.D., 9/16
150
T-FITTING ,A 069205
150
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
153
LOOM TIE , Replaced By: A0019978390
153
LOOM TIE LINE MOUNTING
153
LOOM TIE ELECTRIC CABLE MOUNTING
153
LOOM TIE LINE MOUNTING
153
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
156
TOOTHED WASHER SENDER UNIT TO BRACKET
159
NUT BRACKET TO SIDE MEMBER
162
HOSE BRAKE HOSE 430 MM,A 069682
165
HOSE BRAKE HOSE 500 MM,A 069681
189
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
189
CLAMP HOSE TO FITTING AND TO OIL TANK
204
TEST CONNECTION
204
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
204
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
207
T-FITTING DIAPHRAGM CYLINDER,CONNECTION "1"
207
T-FITTING DIAPHRAGM CYLINDER
210
ELBOW FITTING AT LEFT AND RIGHT DIAPHRAGM CYLINDERS,A 069205
210
FITTING ,4 667210
210
ELBOW FITTING , Replaced By: A3849907071
219
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
222
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
222
THRUST RING LOCKING VALVE
222
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
225
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
228
HOSE FROM T-FITTING TO LEFT AND RIGHT DIAPHRAGM CYLINDERS 11X480
231
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
231
CLAMP HOSE TO FITTING AND TO OIL TANK
234
CONNECTION FITTING ,880809
237
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
240
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
243
ADAPTER FITTING , USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
294
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
297
INSULATING HOSE BLACK 12 X 0,8 MM
300
UNION NUT
303
FITTING
306
GROMMET AIR SPRING VALVE
