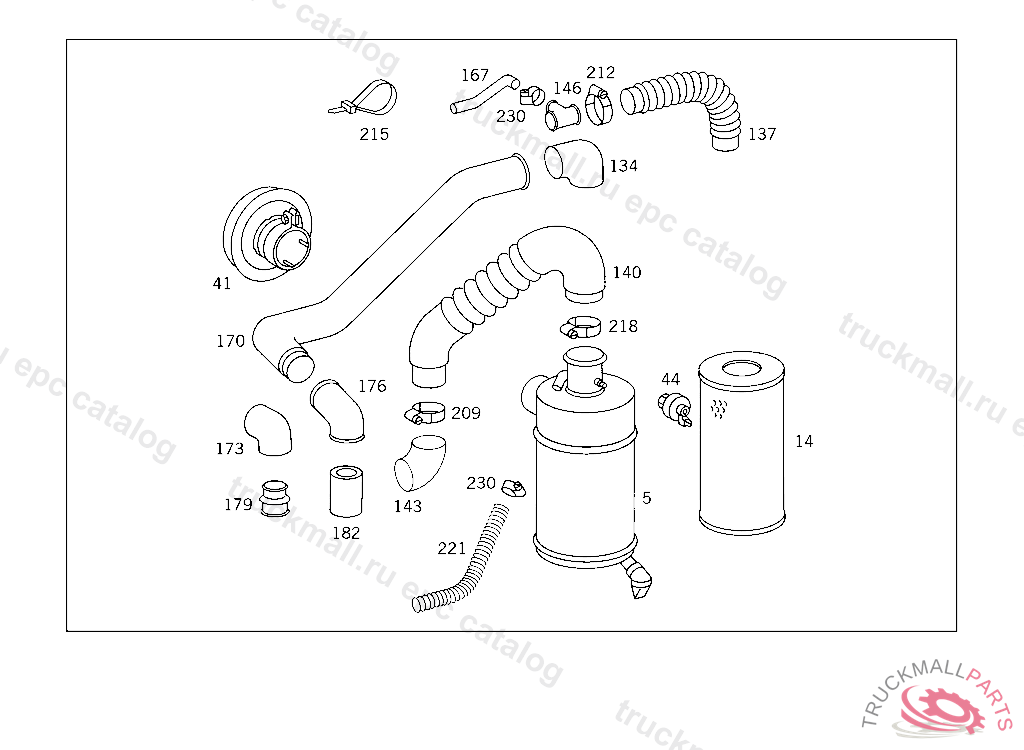

Поз.
Артикул
Описание
5
AIR CLEANER LESS BRACKET
14
FILTER ELEMENTTO 394 094 70 01
41
COVER
41
COVER
44
VACUUM BOX
44
SWITCH
134
HOSE FROM AIR CLEANER TO ENGINE INTAKE PIPE
137
HOSE FROM AIR CLEANER TO INTAKE PIPE
140
HOSE FROM AIR CLEANER TO MIXTURE CONTROLLER
140
HOSE FROM AIR CLEANER TO ENGINE
143
HOSE FROM AIR CLEANER TO ENGINE INTAKE PIPE
146
AIR INTAKE PIPE AIR INTAKE PIPE TO INTAKE MANIFOLD
167
HOSE FROM AIR CLEANER TO AIR COMPRESSOR
209
CLAMP AIR INTAKE PIPE TO ENGINE "100"
212
CLAMP HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
215
LOOM TIE LINE MOUNTING
218
CLAMP , Replaced By: A0059972990
218
CLAMP , Replaced By: N000000000675
218
LOOM TIE INTAKE AIR LINE
218
LOOM TIE80-95 MM
221
HOSE INTAKE PIPE TO BREATHER PIPE,OM 352
221
HOSE FROM AIR CLEANER TO AIR COMPRESSOR
221
HOSE PIPE ELBOW TO PROPELLANT REGULATOR
221
HOSE AIR INTAKE PIPE
230
CLAMP25-40X13 MM
230
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
230
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
230
CLAMP , Replaced By: N000000000667
230
LOOM TIE. CLAMP HOSE ATTACHMENT
230
LOOM TIE AS REQUIRED
230
CLAMP HOSE TO OIL TANK AND TO SUCTION LINE
230
CLAMP COOLING WATER HOSES
999
HOSE VENT VALVE TO PIPE ELBOW, NOT USED
999
HOSE FROM AIR CLEANER TO MIXTURE CONTROLLER, NOT USED
