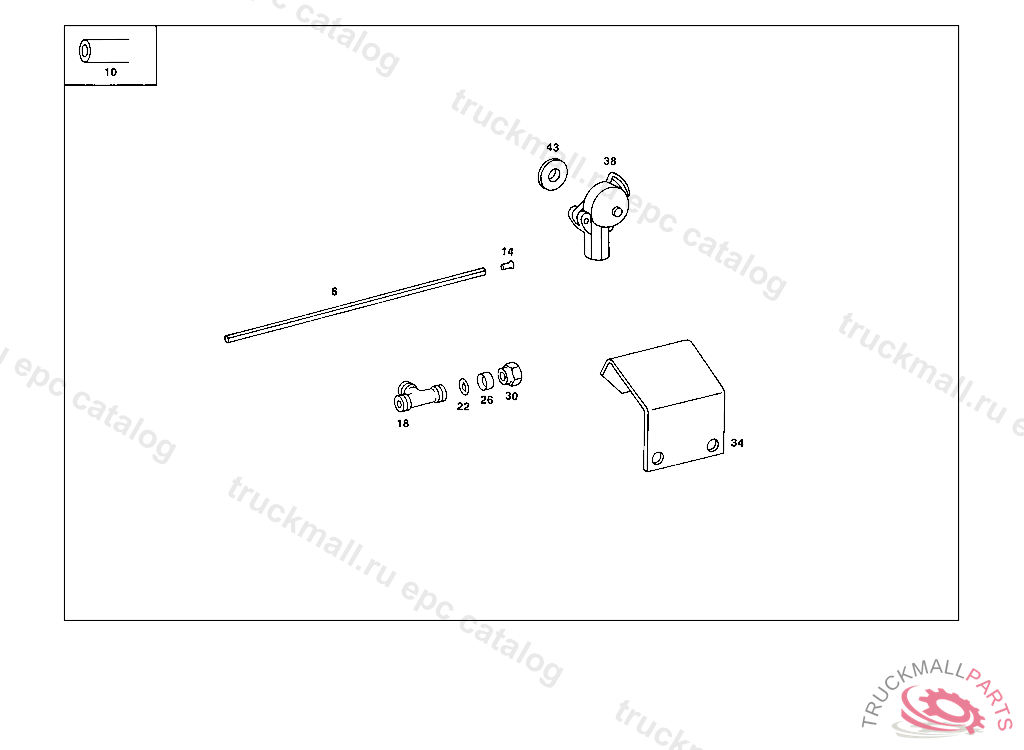

Поз.
Артикул
Описание
6
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
10
INSULATING HOSE RED, ORDER BY THE METER
14
SLEEVE LINE CONNECTION
14
SLEEVE , Replaced By: N915062006000
18
T-FITTING SHIFT VALVE,CONNECTION: "11", 415 5 014668 416 5 000515 417 4 972023
18
FITTING , Replaced By: A0009907470
22
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
26
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
30
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
34
BRACKET ,4 218688
38
BRAKE LINE COUPLING , Replaced By: A0004297530
38
BRAKE LINE COUPLING AT REAR CROSS MENBER
38
BRAKE LINE COUPLING AT REAR CROSS MENBER
38
BRAKE LINE COUPLING AT REAR CROSS MENBER
43
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
PIN
999
SEAL RINGTO 000 429 75 30
999
VALVE CONEBOSCH
999
VALVE TAPPET22X4 MM,BOSCH
999
COVERTO 000 429 48 30
999
COVERWABCO
999
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
999
BRAKE LINE COUPLING , Replaced By: A0004299630
999
BRAKE LINE COUPLING , Replaced By: A0004298030
999
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
999
BRAKE LINE COUPLING SUPPLY, RED "GRAU"
999
REPAIR KITKNORR
999
COVERTO 000 429 16 30,BOSCH
999
SPRING CAPSULETO 000 429 16 30
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
VALVE DISCTO 000 429 48 30
999
GASKETTO 000 429 16 30
999
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
999
SPRINGTO 000 429 16 30
999
SPRINGTO 000 429 16 30
999
SEAL RINGTO 000 429 16 30
999
REPAIR KIT BRAKE LINE COUPLING "WABCO"
999
REPAIR KITWABCO
999
FITTING LINE CONNECTION TO AIR RESERVOIR,4 314180
999
FITTING BRAKE LINE COUPLING,"SUPPLY"
999
FITTING
999
SEAL RING , Replaced By: A0049978240, +001A0004290483
999
SEAL RING22X4 MM,BOSCH
999
SEAL RING"GRAU"
999
SEAL RINGTO 000 429 16 30
999
SEAL RING25X2 MM,BOSCH
999
SEAL RING30X2 MM,BOSCH
999
SEAL RING33X2.5 MM,BOSCH
999
BRACKET LEFT
999
BRACKET INSIDE RIGHT
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW BRACKET TO FRAME,4 439997
999
FITTING , Replaced By: A0009909970
999
SEALING RING. SEAL RING DELIVERY LINE TO PUMP
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING LINE CONNECTION
999
SNAP RINGTO 000 429 16 30
999
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT END PIECE TO EXHAUST PIPE
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
