Поз.
Артикул
Описание

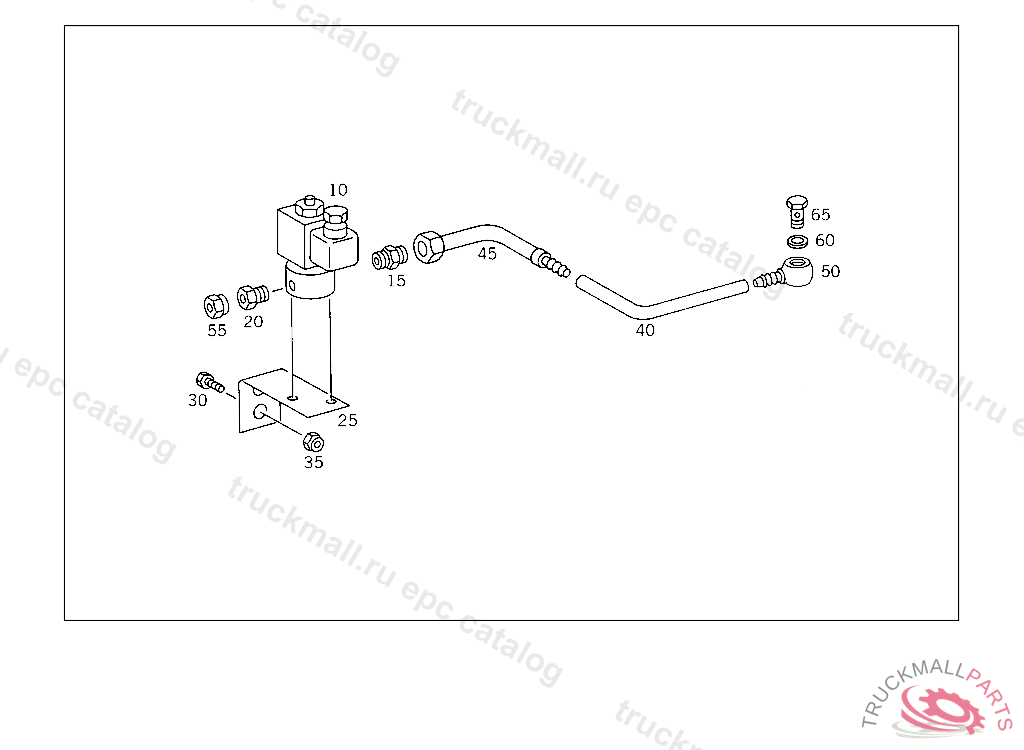

10
VALVE FUEL SHUT-OFF,064911
10
VALVE FUEL
15
FITTING AT VALVE
15
FITTING FUEL LINES TO SHUT-OFF VALVE,064911
15
FITTING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6009970072
20
FITTING , Replaced By: A0049975072
20
FITTING PRESSURE RATIO VALVE,CONNECTION: "11,12,21,22,30"
25
BRACKET LINE MOUNTING, NOT USED
30
SCREW BRACKET TO CAB MOUNTING CONSOLE
35
NUT BRACKET TO SIDE MEMBER
40
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
45
ELBOW FITTING RETURN
50
BANJO UNION , Replaced By: N000000000363
55
NUT. UNION NUT RETURN
60
SEAL RINGTO 000 553 03 05,000 553 18 05,
65
HOLLOW SCREW , Replaced By: N915036010108
65
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
NUT PLATFORM MOUNTING
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
SCREW IN CASE OF SUBSEQUENT INSTALLATION
999
BRACKET LINE MOUNTING
999
BRACKET
999
FITTING RETURN
