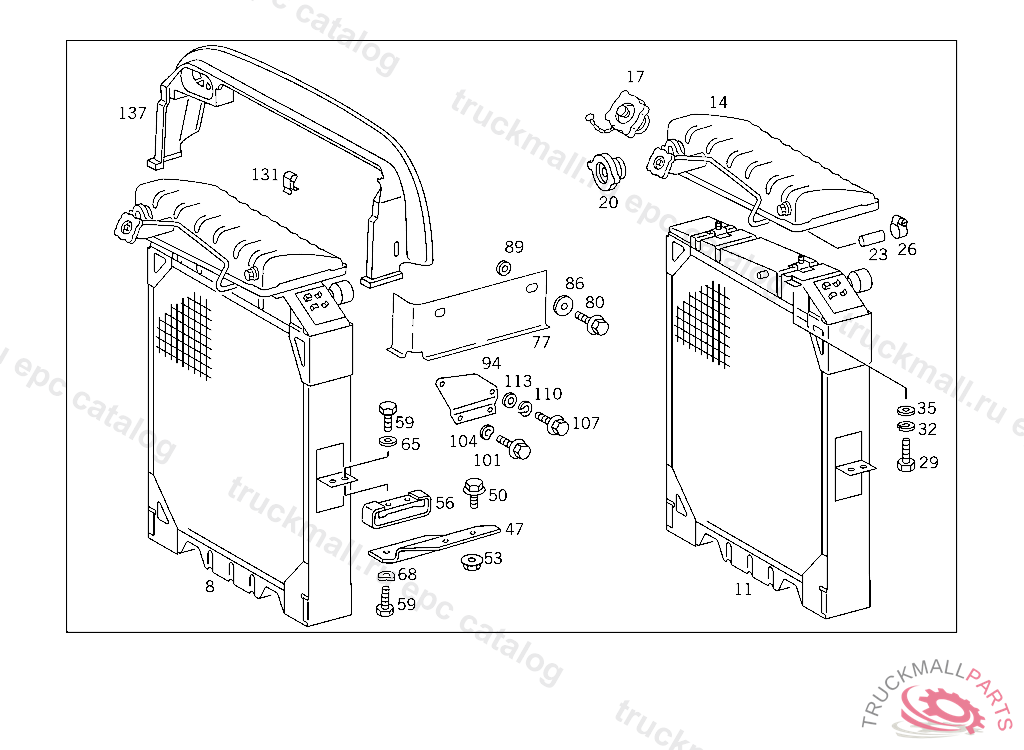

Поз.
Артикул
Описание
8
11
RADIATOR
11
RADIATOR"BEHR"
14
TANK EXPANSION TANK
17
RADIATOR CAP CENTRAL
17
RADIATOR CAP CENTRAL
20
RADIATOR CAP FILLER NECK
20
RADIATOR CAP FILLER NECK
23
HOSE OVERFLOW, EXPANSION TANK
26
CLAMP , Replaced By: N916017011000
29
SCREW , Replaced By: N304017008016
32
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
35
WASHER , Replaced By: N000125008443
47
SUPPORT RADIATOR,LEFT,K 096750
47
SUPPORT RADIATOR,LEFT,K 096749
50
SCREW CONSOLE TO SIDE MEMBER
50
SCREW EXHAUST PIPE TO BRACKET
53
NUT STRAP TO SUPPORT
53
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
56
RUBBER MOUNTING RADIATOR
59
SCREW END PIECE TO EXHAUST PIPE M 10X25
59
SCREW , Replaced By: N304017010028
59
SCREW LINE MOUNTING M 10X20
65
WASHER , Replaced By: N000125010532
68
SPRING WASHER STEERING COLUMN BRACKET TO CAB
77
BRACKET BOOT
80
SCREW , Replaced By: N304017006020
80
SCREW HOSE TO CAB M 6X25
86
WASHER , Replaced By: N009021006208
89
WASHER , Replaced By: N000125006421
94
BRACKET , NOT USED
101
SCREW , Replaced By: N304017006016
101
SCREW AT FILTER BRACKET
104
SPRING WASHER LICENSE PLATE TO BRACKET
107
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
107
SCREW CLAMP TO BRACKET AND TO PIPE
110
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
113
WASHER REAR FOGLAMP TO BRACKET
131
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
137
BOOT RADIATOR
