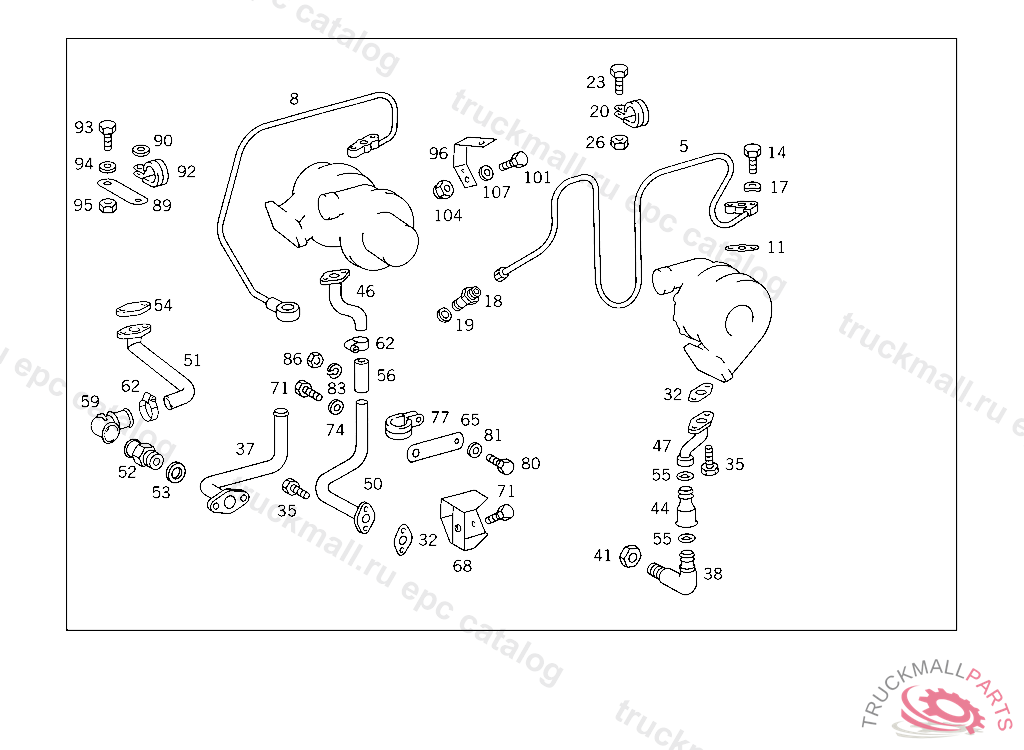

Поз.
Артикул
Описание
5
OIL LINE FEED,LEFT
8
OIL LINE , Replaced By: A4421801720
8
OIL LINE FEED,RIGHT
11
GASKET FLANGE TO TURBOCHARGER
14
SCREW FITTING TO TRANSMISSION M8X32
17
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
17
SPRING WASHER , Replaced By: N000137008212
18
HOLLOW SCREW FITTING LINE CONNECTION
19
SEAL RINGTO 000 553 03 05,000 553 18 05,
20
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
23
SCREW CLAMP TO BRACKET AND TO PIPE
23
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
23
SCREW , Replaced By: N304017008016
26
NUT
32
GASKET OIL RETURN LINE TO TURBOCHARGER
35
SCREW PIPE CLAMP
35
SCREW PIPE BEND TO BRACKET
35
SCREW , Replaced By: N304017008021
38
PIPE ELBOW OIL RETURN TO TIMING CASE,LEFT
41
NUT 3/2-WAY VALVE TO CAB,4 685151
41
NUT , Replaced By: N080705026003
44
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
44
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
46
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
47
PIPE ELBOW , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 019695, Replaced By: A4241870624
50
OIL LINE TURBOCHARGER OIL RETURN
55
SEAL RING TURBOCHARGER OIL RETURN
56
HOSE FROM RETURN LINE CONNECTION TO CYLINDER CRANKCASE, ORDER BY THE METER FROM ENGINE 230908 YEAR OF MANUFACTURE 1992 UP TO ENGINE 432713 YEAR OF MANUFACTURE 1996
62
CLAMP25-40X13 MM
62
LOOM TIE , Replaced By: N000000000668
62
CLAMP , Replaced By: A0069970490
65
BRACKET
65
BRACKET , Replaced By: A4421872040
65
BRACKET FUEL LINE TO FRAME
68
BRACKET COMPRESSED AIR LINES
68
BRACKET , Replaced By: A4420981839
71
SCREW , Replaced By: N304017016011
71
SCREW CONSOLE TO FRAME M 12X35,4 351115
71
SCREWM 16X25
74
WASHER BRACKET TO FRAME
74
WASHER , Replaced By: N000125017016
77
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
80
SCREW CLAMP TO BRACKET AND TO PIPE
81
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
83
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
86
NUT
89
BRACKET OIL DELIVERY LINE TO CHARGING AIR PIPE,803665
89
BRACKET OIL DELIVERY LINE TO CHARGING AIR PIPE,803665
92
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
93
SCREW EXHAUST PIPE TO BRACKET
94
WASHER RADIATOR TO RUBBER MOUNTING
95
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
95
NUT , Replaced By: N913023010002
101
SCREW MANUAL PUMP TO BRACKET AND TO PLATE M 10X40
104
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
104
NUT , Replaced By: N913023010002
107
WASHER RADIATOR TO RUBBER MOUNTING
