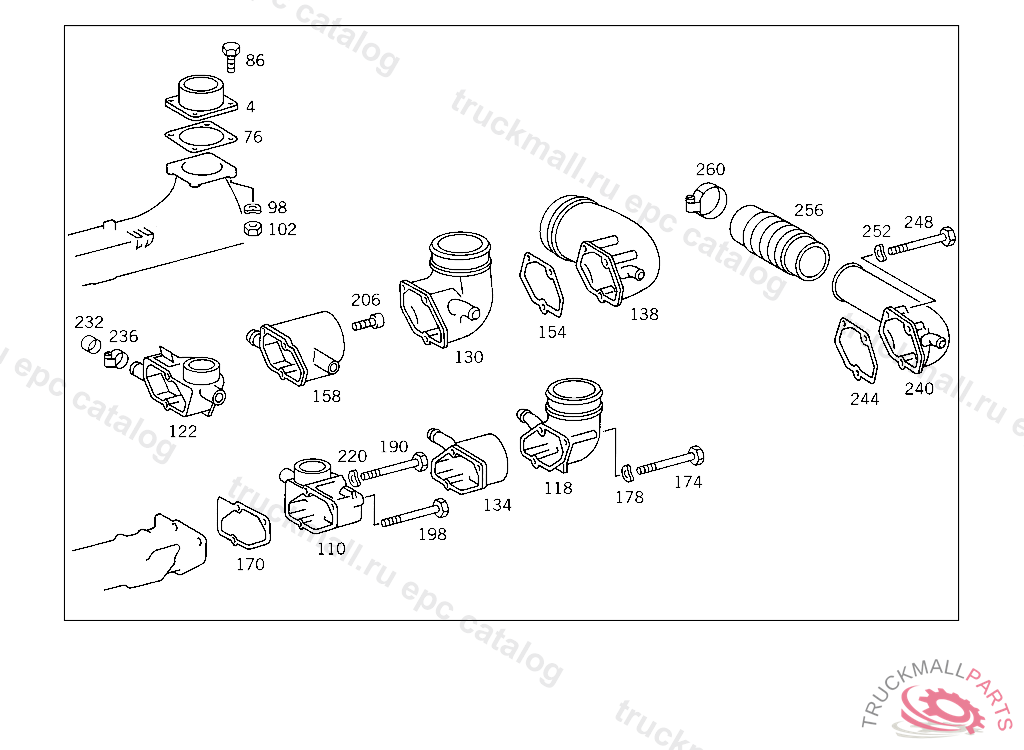

Поз.
Артикул
Описание
4
PIPE SOCKET INTAKE MANIFOLD
4
PIPE SOCKET
76
GASKET FROM AIR INTAKE PIPE TO ENGINE, UP TO IDENT NO. 004702 EXCEPT FOR 004316,004586,004634,004640,004650,004662,004673.
86
SCREW SUPPORT TO FENDER
86
SCREW CLAMP ON BRACKET
86
SCREW , Replaced By: N304017008018
86
SCREW , Replaced By: N304017008034
86
SCREW , Replaced By: N304017008033
86
SCREW BRACKET TO CROSS CONNECTION STRUT
86
HEXAGON HEAD BOLT SHIFT LEVER TO CAB FLOOR M 8X45
86
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
86
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
86
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
86
SCREW BRACKET TO TRANSMISSION
98
WASHER EXHAUST MUFFLER TO STRAP
98
SPRING WASHER SHIFTING CYLINDER TO YOKE
102
NUT STRAP TO SUPPORT,5 149419
102
HEXAGON NUT. NUT , Replaced By: N913023008002
102
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
110
CONNECTION PIPE SOCKET DIAPHRAGM TYPE DASHPOT ON INTAKE MANIFOLD
110
CONNECTION PIPE SOCKET LEFT
118
CONNECTION PIPE SOCKET LEFT
118
CONNECTION PIPE SOCKET LEFT
122
CONNECTION PIPE SOCKET RIGHT
122
CONNECTION PIPE SOCKET RIGHT
130
CONNECTION PIPE SOCKET RIGHT
130
CONNECTION PIPE SOCKET RIGHT
134
CONNECTION PIPE SOCKET LEFT
134
CONNECTION PIPE SOCKET LEFT
138
CONNECTION PIPE SOCKET RIGHT
154
GASKET INTAKE MANIFOLD
158
CONNECTION PIPE SOCKET RIGHT
170
GASKET INTAKE MANIFOLD
174
COMBINATION BOLT , Replaced By: N914007010063
174
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
174
COMBINATION BOLT CONNECTION PIPE SOCKET TO INTAKE MANIFOLD M 10X180
174
COMBINATION BOLT CONNECTION PIPE SOCKET TO INTAKE MANIFOLD M10X115
174
COMBINATION BOLT , Replaced By: N914007010071
174
SCREW-AND-WASHER ASSEMBLY CONNECTION PIPE SOCKET TO INTAKE MANIFOLD M 10X155
178
SPRING WASHER STEERING COLUMN BRACKET TO CAB
190
COMBINATION BOLT CONNECTION PIPE SOCKET TO INTAKE MANIFOLD M10X115
198
SCREW CLUTCH TO FLYWHEEL
198
SCREW BRACKET TO BELL HOUSING
198
COMBINATION BOLT CONNECTION PIPE SOCKET TO INTAKE MANIFOLD M 10X90
206
SCREW PIPE TO CHARGING AIR INTERCOOLER
206
SCREW PIPE ELBOW TO CHARGING AIR INTERCOOLER M 10X35,5 708090
206
SCREW CONVERTER HOUSING
220
WASHER VIBRATION ABSORBER TO BRACKET
220
WASHER EXHAUST MUFFLER TO STRAP
220
SPRING WASHER STEERING COLUMN BRACKET TO CAB
220
WASHER , Replaced By: N000433010510
232
LOCKING CAP TO PLUG INTAKE MANIFOLD AT AIR COMPRESSOR CONNECTION
232
LOCKING CAP TO LOCK COOLING WATER BOTTOM OUTLET
232
LOCKING CAP , Replaced By: A3845067033
236
LOOM TIE
236
CLAMP25-40X13 MM
236
LOOM TIE , Replaced By: N000000000668
236
CLAMP , Replaced By: A0069970490
236
CLAMP , Replaced By: A0069970590
240
PIPE ELBOW RIGHT
240
PIPE ELBOW LEFT
244
GASKET INTAKE MANIFOLD
248
SCREW POWER STEERING PUMP TO BEARING FLANGE M 10X150, TO 699 466 02 01
248
SCREW , Replaced By: N304014010023
252
SPRING WASHER STEERING COLUMN BRACKET TO CAB
256
HOSE
260
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
260
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
260
CLAMP , Replaced By: A0059971490
260
CLAMP , Replaced By: N000000000678
260
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
260
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
999
THRUST RING SUCTION LINE TO OIL PUMP
999
LOCKING CAP
999
LOOM TIE , Replaced By: N916017025000
999
SLEEVE , Replaced By: A4229970083
999
SEAL RING LINE CONNECTION
999
LOOM TIE , Replaced By: N000000000668
999
SPACER RING PULLEY AND INTERMEDIATE PIECE TO WATER PUMP HUB
999
GASKET , Replaced By: A4421411480
999
GASKET , Replaced By: A4471410580
999
SPACER TUBE CABLE CONNECTOR BEHIND CAB,5 148678
999
GASKET , Replaced By: A4421410780
999
HOSE AIR COMPRESSOR CONNECTION
999
CONNECTOR
999
HOSE FROM AIR CLEANER TO INTAKE PIPE
999
CONNECTION PIPE SOCKET , Replaced By: A4041400037
999
CONNECTION PIPE SOCKET , Replaced By: A4241412157, +001N000908026005, +001N007603026106
999
CONNECTION PIPE SOCKET , Replaced By: A4241412257, +001N000908026005, +001N007603026106
999
INTAKE MANIFOLD , Replaced By: A4271410308
999
CAP AIR COMPRESSOR CONNECTION
999
INTAKE MANIFOLD , Replaced By: A4411400401
999
BRACKET
999
BRACKET FUEL FILTER MOUNTED,645919
999
AIR INTAKE PIPE , SEE SA 18540/72
999
AIR INTAKE PIPE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 614576, Replaced By: A4420900629
999
BRACKET AIR INTAKE PIPE
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 614576, Replaced By: A4420980239
999
FITTING AT AIR COMPRESSOR
999
HOSE AIR-COMPRESSOR INTAKE PIPE CONNECTION
999
CONNECTOR , Replaced By: A4221400137
999
SLEEVE AIR INTAKE PIPE TO TURBOCHARGER
999
BRACKET
999
CONNECTION PIPE SOCKET , Replaced By: A4241410657, +004N007603026100, +004N007604026102
999
CONNECTION PIPE SOCKET , Replaced By: A4241410557
999
CONNECTION PIPE SOCKET , Replaced By: A4241411557
999
SHIM INTAKE MANIFOLD TO BRACKET,925974
999
AIR INTAKE PIPE
999
INTAKE PIPE
999
INTAKE PIPE , Replaced By: A4420982801, +001N000908026005, +001N007603026100
999
INTAKE PIPE
999
CAP TO PLUG AIR COMPRESSOR OPENING,128243
999
HOSE AIR-COMPRESSOR INTAKE PIPE CONNECTION
999
AIR INTAKE PIPE , NOT USED
999
WASHER
999
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT,5 433388
999
SCREW PULLEY
999
WASHER , Replaced By: N007349008007
999
WASHER
999
SEAL RING LINE TO OIL PUMP
999
SCREW STOP TO BATTERY CASE
999
COMBINATION BOLT TO PLUG AIR COMPRESSOR OPENING
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP , Replaced By: A0069970490
