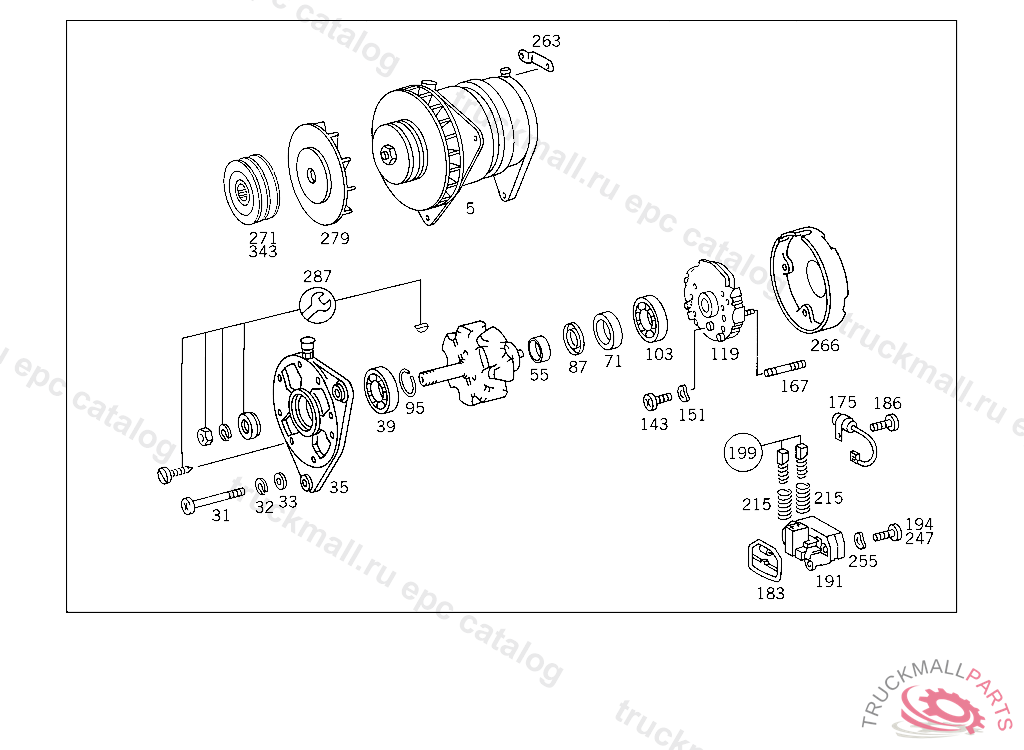

Поз.
Артикул
Описание
5
ALTERNATOR , LESS INDIVIDUAL PARTS
5
ALTERNATOR LESS PULLEY, LESS INDIVIDUAL PARTS
5
ALTERNATOR28V/140A
5
ALTERNATOR , Replaced By: A0041547902
5
ALTERNATOR , LESS INDIVIDUAL PARTS, Replaced By: A0041547902
5
ALTERNATOR , MB PART NO.004 154 53 02 BOSCH PART NO.0 120 622 026 + MR MB PART NO.004 154 83 02 BOSCH PART NO.0 120 600 563 MB PART NO.005 154 62 02 BOSCH PART NO.0 120 600 578, Replaced By: A4071540502
5
ALTERNATOR , Replaced By: A0071542802, +001A0001559115, +001A4221550118
5
ALTERNATOR ,049383, Replaced By: A0051546202, +001A0001552415
5
ALTERNATOR ,049383, Replaced By: A0051544502
5
ALTERNATOR , Replaced By: A0051541302
5
ALTERNATOR , Replaced By: A0061548602, +001A0001555515
5
ALTERNATOR , Replaced By: A0041548302
5
ALTERNATOR , Replaced By: A0071542802
5
ALTERNATOR , MB PART NO.002 154 85 02BOSCH PART NO. 0 120 600 514 MB PART NO.004 154 79 02BOSCH PART NO. 0 120 600 562 MB PART NO.407 154 06 02BOSCH PART NO. 0 120 600-567 MB PART NO.006 154 21 02BOSCH PART NO. 0 120 689 513, Replaced By: A0071542802
5
ALTERNATOR , Replaced By: A0071541902
5
ALTERNATOR , Replaced By: A0051548402, +001A4221550018
5
ALTERNATOR , Replaced By: A0091540802
5
ALTERNATOR , Replaced By: A0111545002
5
ALTERNATOR , Replaced By: A0081547802
5
ALTERNATOR , LESS INDIVIDUAL PARTS, Replaced By: A0041545302
5
ALTERNATOR , FOR BVREAK DOWN,SEE 004 154 83 02, Replaced By: A0041548302
5
ALTERNATOR , MB PART NO.002 154 85 02BOSCH PART NO. 0 120 600 514 MB PART NO.004 154 79 02BOSCH PART NO. 0 120 600 562 MB PART NO.407 154 06 02BOSCH PART NO. 0 120 600-567 MB PART NO.006 154 21 02BOSCH PART NO. 0 120 689 513, Replaced By: A0041548302
5
ALTERNATOR28V/105A,"BOSCH", NOT USED
31
SCREW
31
SCREW , Replaced By: A0009908221
31
SCREW
31
SCREW , Replaced By: A0019900321
31
SCREW , Replaced By: A0009909721
31
SCREW , Replaced By: A0019900821
31
SCREW , Replaced By: A0009909821
31
SCREW , Replaced By: A0009908321
31
SCREW , Replaced By: A0009907921
31
SCREW , Replaced By: A0009907121
31
SCREW , Replaced By: A0019902120
31
SCREW , Replaced By: A0009907621
31
SCREW , Replaced By: A0009909621
31
SCREWTO 005 154 51 02
31
SCREW
31
SCREW
31
SCREW
31
SCREW
31
SCREWTO 005 154 11 02
31
SCREW HOUSING
31
SCREW , Replaced By: A0009907721
31
SCREWTO 008 154 31 02
32
LOCK WASHER
33
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
33
WASHER COMPRESSED AIR LINE TO BRACKET
35
COVERTO 004 154 79 02
39
GROOVED BALL BEARING
39
BALL BEARING
39
GROOVED BALL BEARING
39
GROOVED BALL BEARING DRIVE END BEARING 005 154 45 02/84 02
39
GROOVED BALL BEARING
39
GROOVED BALL BEARING DRIVE END BEARING TO 002 154 85 02
39
BALL BEARING DRIVE END BEARING TO 008 154 31 02
39
BALL BEARINGTO 005 154 32 02
39
BALL BEARING , Replaced By: A0079816625
39
GROOVED BALL BEARING , Replaced By: N000625436303
39
BALL BEARINGTO 007 154 27 02, 009 154 07 02
39
GROOVED BALL BEARING LEFT ALTERNATOR MOUNTING,061991
55
SPACER RINGTO 002 154 81 02
55
SPACER RING
55
SPACER RINGTO 004 154 79 02,004 154 82 02
71
RINGTO 005 154 45 02,006 154 86 02
71
SEAL RING , NOT USED
87
SEAL RING
87
SEAL RING ,061991
95
SNAP RING
103
CYLINDR. ROLLER BEARING ,061991
103
BALL BEARING SLIP RING SIDE TO 004 154 25 02
103
GROOVED BALL BEARING
103
GROOVED BALL BEARING
103
CYLINDR. ROLLER BEARINGTO 007 154 81 02
103
GROOVED BALL BEARING
103
CYLINDR. ROLLER BEARING
103
BALL BEARING , Replaced By: A0059819225
103
BALL BEARING SLIP RING SIDE TO 007 154 81 02
103
BALL BEARINGTO 007 154 27 02, 009 154 07 02
103
BALL BEARING SLIP RING SIDE TO 008 154 31 02
103
NEEDLE BEARING
103
GROOVED BALL BEARING SLIP RING SIDE TO 005 154 11 02
103
BALL BEARINGTO 005 154 34 02
103
BALL BEARING
103
BALL BEARING , Replaced By: A0059813325
103
BALL BEARING , Replaced By: A0089811225
103
BALL BEARING SLIP RING SIDE
103
BALL BEARING , Replaced By: A0089814625
119
RECTIFIER , Replaced By: A0001549716
119
RECTIFIER , Replaced By: A0001549716
119
RECTIFIER , Replaced By: A0001545116
119
RECTIFIERTO 005 154 45 02,006 154 86 02
119
RECTIFIERTO 009 154 08 02,008 154 78 02
119
RECTIFIERTO 007 154 28 02
119
RECTIFIERTO 004 154 79 02
119
RECTIFIER , Replaced By: A0001544816
143
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
143
SCREW T-FITTING TO BRACKET M4X25
143
SCREW , Replaced By: N007985004130
151
SPRING WASHER ALTERNATOR CONNECTION D+
167
STUDTO 006 154 86 02,005 154 84 02
167
STUD
175
CONDENSER ,054430
175
CONDENSER
175
CONDENSER ,061991
175
CONDENSER407 154 04 02
175
CONDENSERTO 011 154 50 02
175
CONDENSER
175
CONDENSER
175
CONDENSER
175
CONDENSER , ON SPECIAL REQUEST
183
GASKET ,061991
183
GASKETTO 005 154 14 02
183
GASKET
183
GASKETTO 007 154 26 02
183
GASKET
183
GASKETTO 004 154 79 02
186
SCREW APPARATUS PLATE TO CAB,K 062140
191
CARBON BRUSH SETTO 009 154 07 02
191
REGULATORTO 007 154 27 02
191
REGULATOR AND CUT-OUT WITH GASKET TO 007 154 81 02
191
REGULATOR AND CUT-OUT
191
REGULATOR AND CUT-OUTTO 005 154 34 02
191
REGULATOR AND CUT-OUTTO 005 154 32 06
191
REGULATORTO 007 154 26 02
191
CARBON BRUSH SET , Replaced By: A0001548114
191
REGULATOR AND CUT-OUT , Replaced By: A0021545506
191
REGULATOR AND CUT-OUT , Replaced By: A0001541805
191
REGULATOR AND CUT-OUT , Replaced By: A0021543906
191
REGULATOR AND CUT-OUT , Replaced By: A0001541805
191
REGULATOR AND CUT-OUT , Replaced By: A0021546806
191
REGULATOR AND CUT-OUT , Replaced By: A0021546806
191
REGULATOR AND CUT-OUT , Replaced By: A0001541705
191
REGULATOR AND CUT-OUT , Replaced By: A0001541805
191
REGULATOR AND CUT-OUT , Replaced By: A0001541705
191
REGULATOR AND CUT-OUT , Replaced By: A0021549606
191
REGULATOR AND CUT-OUT , Replaced By: A0021549506
191
REGULATOR AND CUT-OUTTO 009 154 08 02,008 154 78 02
191
REGULATORTO 008 154 31 02
194
SCREW REGULATOR MOUNTING TO 009 154 07 02
199
CARBON BRUSH SET
199
CARBON BRUSH SET ,600808
199
CARBON BRUSH SETTO 008 154 78 02
199
CARBON BRUSH SET , Replaced By: A0001547214
199
CARBON BRUSH SET , Replaced By: A0001548614
199
CARBON BRUSH SET , Replaced By: A0001548114
199
CARBON BRUSH SETTO 007 154 28 02,009 154 08 02
199
CARBON BRUSH SETTO 007 154 27 02
199
CARBON BRUSH SET , Replaced By: A0001547214
199
CARBON BRUSH SETTO 005 154 34 02
199
BRACKET WITH CARBON BRUSHES TO 008 154 31 02
199
CARBON BRUSH SETTO 009 154 07 02
199
CARBON BRUSH SET , Replaced By: A0001545514
215
PART NAME MISSING007 154 24 02/28 02/8102,0091540802,
215
SPRING
215
SPRING
247
SCREW REGULATOR MOUNTING TO 009 154 07 02
247
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
247
SCREW , Replaced By: N007985004130
255
SPRING WASHER ALTERNATOR CONNECTION D+
263
CONTACT RAILTO 004 154 79 02
263
COUPLER004 154 79 02,004 154 83 02
266
PIPE SOCKET , Replaced By: A4071540165
266
COVER
271
PULLEY
271
PULLEYTO 004 154 83 02,005 154 62 02
271
PULLEY TWO-GROOVE,061992
271
PULLEY TWO-GROOVE,061991
279
FAN ,600808
279
FANTO 011 154 50 02
279
FAN ,061991
279
FAN
279
FAN005 154 62 02,004 154 83 02
279
FAN , Replaced By: A4221550018
279
FAN ALTERNATOR
287
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
287
REPAIR KIT ROTOR TO 007 154 28 02
287
REPAIR KIT
287
REPAIR KIT
287
REPAIR KIT ROTOR TO 005 154 52 02
287
REPAIR KIT (PARTS KT),ROTOR TO 007 154 27 02,009 154 07 02
343
PULLEY TWO-GROOVE,061992
343
PULLEY TWO-GROOVE
343
BELT PULLEY F POLY-V BELT TWO-GROOVE,208848/91
343
PULLEY THREE-GROOVE
343
PULLEY , Replaced By: A0011551015
343
PULLEY TWO-GROOVE,208848/91, Replaced By: A0011555815
999
WASHER
999
GASKET , Replaced By: A4071540280
999
PIPE SOCKET , Replaced By: A4031540365
999
PIPE SOCKET , Replaced By: A4071540165
999
DIODE , Replaced By: A0005487918
999
DIODE , Replaced By: A0005489818
999
DIODE , Replaced By: A0015481118
999
SCREW , Replaced By: A0009908221
999
SCREW , Replaced By: A0009908321
999
SCREW , Replaced By: A0009907921
999
DIODE , Replaced By: A0015481518
999
SCREW , Replaced By: A0009907121
999
SCREW , Replaced By: A0019902120
