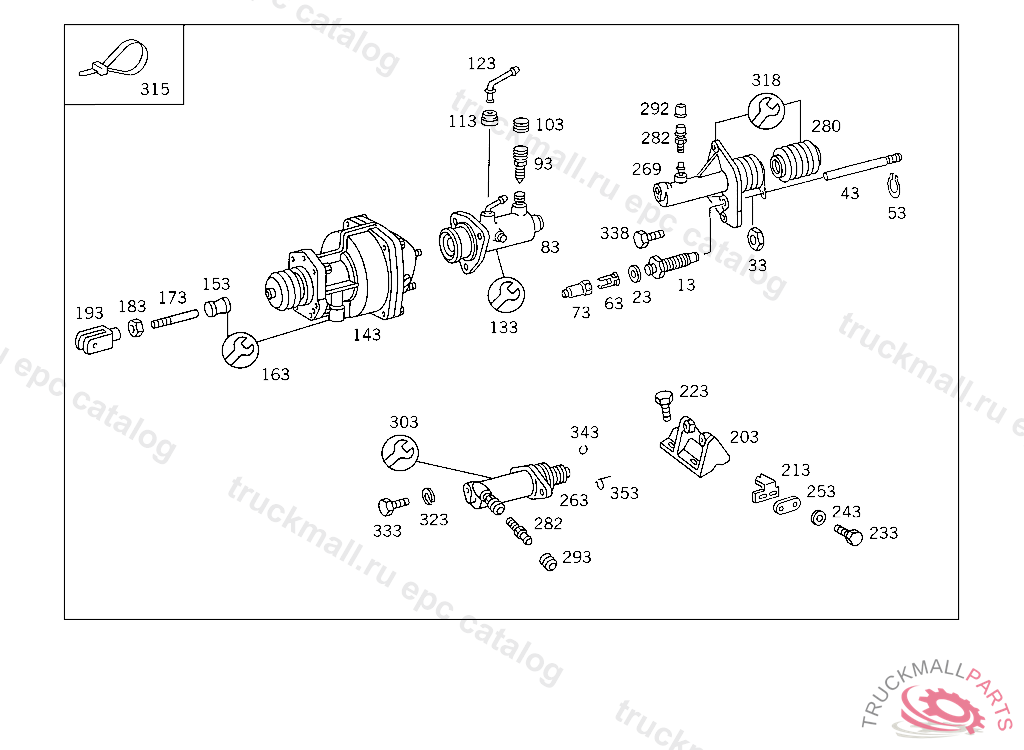

Поз.
Артикул
Описание
13
SCREW WEAR INDICATOR
23
SEAL RING WEAR INDICATOR
33
NUT
43
PIN WEAR INDICATOR
53
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
53
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
63
POINTER CLUTCH LINING WEAR
73
CAP WEAR INDICATOR
83
MASTER CYLINDER CLUTCH FAG
93
VALVE CLUTCH SLAVE CYLINDER
93
VALVE , Replaced By: A3075530107
93
BLEEDER VALVE , Replaced By: A0004310265
103
PROTECTIVE CAP , Replaced By: A0004210887
113
PLUG
113
PLUG , Replaced By: A0009971186
123
INTERMEDIATE PIECETO 000 295 82 06
123
INTERMEDIATE PIECE
133
REPAIR KIT CLUTCH MASTER CYLINDER "FAG"
143
MASTER CYLINDER CLUTCH BOOSTER
153
RUBBER BUFFER
163
REPAIR KITTO 000 295 71 06
173
ROD FOLLOWER LEVER TO CLUTCH BOOSTER
183
NUT R.H. THREAD
193
YOKE FOLLOWER LEVER TO CLUTCH BOOSTER
203
BRACKET CLUTCH ACTUATION
203
BRACKET , Replaced By: A3072950840
213
POINTER CLUTCH LINING WEAR, 396.3 10/20 6 900235 396.3 50/60 5 353180 396.4 NOT USED
223
SCREW BRACKET TO SIDE MEMBER
223
SCREW , Replaced By: N304017010002
233
SCREW COVER PLATE TO BRACKET
243
WASHER COMPRESSED AIR LINE TO BRACKET
243
WASHER , Replaced By: N009021006208
253
LOCK POINTER TO CLUTCH ACTUATION BRACKET, 396.3 10/20 6 900235 396.3 50/60 5 353180 396.4 NOT USED
263
SLAVE CYLINDER CLUTCH
263
SLAVE CYLINDER CLUTCH ACTUATION
263
SLAVE CYLINDER , Replaced By: A0022951007
263
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 669429, Replaced By: A0022950407
269
SLAVE CYLINDER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0022950207
269
SLAVE CYLINDER CLUTCH ACTUATION
280
BOOT
282
VALVE CLUTCH SLAVE CYLINDER
292
PROTECTIVE CAP ,5 962906
293
PROTECTIVE CAP ,5 962906
303
REPAIR KIT CLUTCH SLAVE CYLINDER
315
LOOM TIE
318
REPAIR KIT CLUTCH SLAVE CYLINDER
318
REPAIR KIT , Replaced By: A0002901411
323
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
333
SCREW BRACKET TO SIDE MEMBER
333
SCREW , Replaced By: N304017010002
338
SCREW END PIECE TO EXHAUST PIPE M 10X25
343
SNAP RING LEVER TO RELEASE SHAFT,4 601609
353
SECURING CLIP , Replaced By: N073130019300
353
SNAP RING CLUTCH SLAVE CYLINDER
999
BRACKET , Replaced By: A3072950840
999
BRACKET , Replaced By: A3072950840
999
PROTECTIVE CAP , Replaced By: A0004210887
999
SLAVE CYLINDER CLUTCH ACTUATION
999
SLAVE CYLINDER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0012956707
999
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 368621, Replaced By: A0012958907
999
SLAVE CYLINDER , Replaced By: A0012955307
999
REPAIR KIT , Replaced By: A0002900911
999
VALVE , Replaced By: A3075530107
999
PROTECTIVE CAP , Replaced By: A0004217187
999
BLEEDER VALVE , Replaced By: A0004310265
999
SLAVE CYLINDER , UP TO CHASSIS 007219,ALSO INSTALLED ON 007228-007232,007241-007243,007245,007646,007254, Replaced By: A0012950307, +001A6202900534
999
SLAVE CYLINDER ,4 601609, Replaced By: A0012950307, +001A6202900534, +001A0009966440
999
BOOT , Replaced By: A0005863129
999
LOCK
