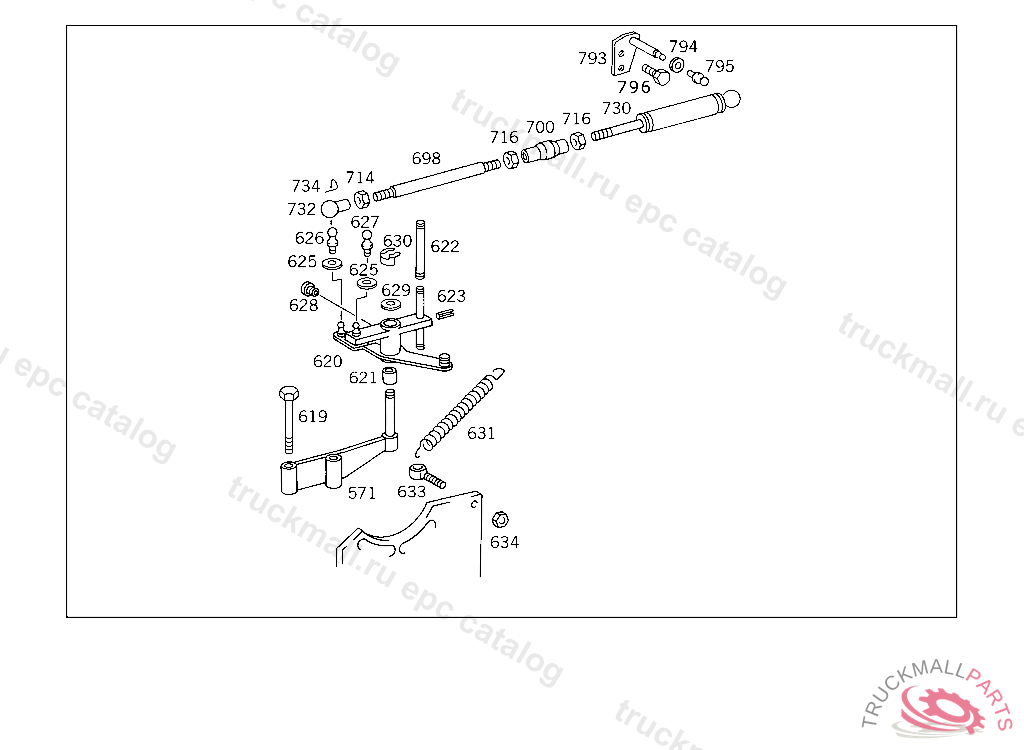

Поз.
Артикул
Описание
571
BRACKET
619
SCREW BEARING BRACKET TO GUSSET PLATE
620
LEVER
621
BUSHING MOUNTING
622
PIVOT PIN
623
CLAMPING SLEEVE , Replaced By: A0009912941
625
SEAL RING MODULATION PRESSURE CONTROL
626
BALL PIVOT
627
BALL STUD. BALL PIVOT TOP B10X4,5 MM
628
GREASE NIPPLE
629
WASHER
630
LOCK TAIL LAMP
631
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
633
SCREW RELEASE SPRING, UP TO ENGINE 438288 YEAR OF MANUFACTURE 1996
634
NUT BALL PIVOT TO LEVER
698
ROD
700
TURNBUCKLE TURNBUCKLE
714
NUT BALL PIVOT TO LEVER
716
NUT L.H. THREAD
730
ROD , Replaced By: A6583001715
730
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
732
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
734
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
793
LEVER
794
SEAL RING MODULATION PRESSURE CONTROL
795
BALL PIVOT
795
BALL PIVOT
796
SCREW , Replaced By: N304017006016
796
SCREW PUMP TO BRACKET
999
STOP INTERMEDIATE SPEED STOP
999
STOP INTERMEDIATE SPEED STOP
999
CYLINDER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 051317, Replaced By: A0000701583
999
CYLINDER , Replaced By: A0000701983, +001A4410721740, +001A4412230641
999
CYLINDER , Replaced By: A0000723212
999
REGULATING UNIT , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 258570/92, Replaced By: A0000720265
999
CYLINDER , 364 021703 366 061186, Replaced By: A0000721512, +001A3649910322, +001N900071008100
999
CYLINDER , Replaced By: A0000720612, +001A4030720574
999
CYLINDER , Replaced By: A0000720812
999
CYLINDER , Replaced By: A0004304826
999
CYLINDER INJECTION PUMP CONTROL
999
CYLINDER , Replaced By: A0000721512
999
CYLINDER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0000720512, +001A4420720624
999
CYLINDER , NOT USED
999
CYLINDER (OPERATING CYLINDER)
999
CYLINDER , Replaced By: A0004302326
999
CYLINDER (POWER CYLINDER)
999
CYLINDER , Replaced By: A0004304926
999
BUSHING , Replaced By: A0004340850
999
BALL SOCKET PULL ROD TO LEVER
999
FITTING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0069971672
999
TUBE GUIDE TUBE TO CYLINDER HEAD
999
BALL PIVOT LEVER
999
LEVER
999
WASHER , Replaced By: N000988008006
999
BUSHING , Replaced By: A4039920001
999
SPACER TUBE , Replaced By: A6673170253
999
CYLINDER
999
CYLINDER , Replaced By: A0000720112
999
SHAFT ,256464, Replaced By: A4220700323, +001A4073015088
999
CYLINDER , Replaced By: A0000720112, +001A4030720324, +001A4039910022, +002N000934006007
999
BRACKET , Replaced By: A4230700140
999
BEARING BRACKET , Replaced By: A4030702724, +001A4030721250
999
BEARING BRACKET , Replaced By: A4030702624
999
CYLINDER , Replaced By: A0000720412
999
LEVER , Replaced By: A4410700321
999
BEARING BRACKET
999
BEARING BRACKET , Replaced By: A4220701824
999
BEARING BRACKET CONTROL SHAFT,145362,404 001277
999
LEVER , Replaced By: A4030707621
999
LEVER , Replaced By: A4030708321
999
LEVER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 590957, Replaced By: A4420702521
999
LEVER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 590957, Replaced By: A4420702521
999
PIN , Replaced By: A4030720574
999
SPACER TUBE CYLINDER TO LEVER, NOT USED
999
PIN , Replaced By: A4221440174, +001N999900008004
999
SPACER TUBE
999
SPRING , Replaced By: A4039931010
999
SPRING , Replaced By: A4229930010
999
SHAFT , Replaced By: A4220700323, +001A4073015088
999
BEARING BRACKET , Replaced By: A4220701524
999
SHAFT , Replaced By: A4220700723
999
SHAFT , 402.910 256465 404.901 005579 422.905 047593460461, Replaced By: A4420700323, +001N071803010102, +001N913004006002
999
SHAFT CONTROL
999
LEVER ,608852, Replaced By: A4420703521
999
PIN , Replaced By: A4421440574
999
SPRING , Replaced By: A4429935110
999
BRACKET , Replaced By: A4410700740, +001A4411400540, +006N000125008418, +004N000931008320, +002N000933008151, +002N000934008010, +004N007349008006
999
BRACKET
999
CYLINDER (OPERATING CYLINDER), NOT USED
999
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4420705921
999
LEVER LOAD CONTROL, TO BE ADAPTED DURING ASSEMBLY
999
LEVER INJECTION PUMP CONTROL
999
BRACKET
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 442 513557, Replaced By: A4420722340
999
BRACKET , Replaced By: A4420722840
999
WASHER COVERING TO CAB
999
PIN STRAP TO BRACKET
999
WOODRUFF KEY INJECTION PUMP
999
BALL PIVOT
999
PULL ROD FROM REAR CONTROL LEVER TO CONTROL SHAFT 600 MM, TO BE ADAPTED DURING ASSEMBLY
