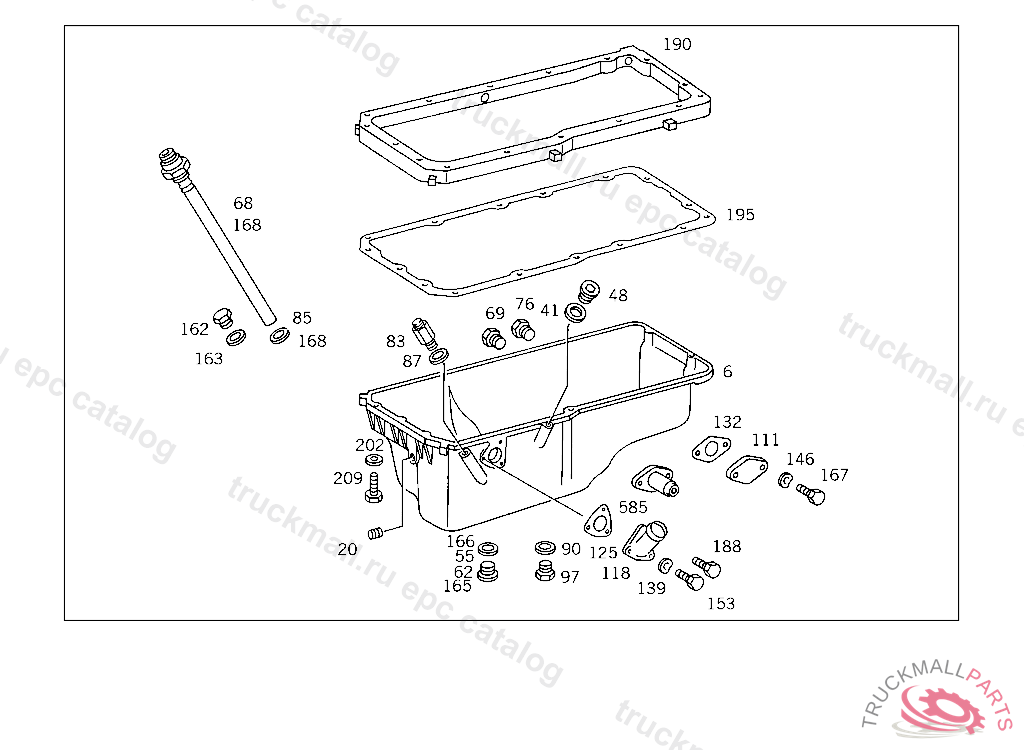

Поз.
Артикул
Описание
6
OIL PAN LESS OIL DRAIN SCREW PLUG
6
OIL PAN WITH OIL DRAIN SCREW PLUG
6
OIL PAN WITH OIL DRAIN SCREW PLUG
6
OIL PAN LESS OIL DRAIN SCREW PLUG
6
OIL PAN WITH OIL DRAIN SCREW PLUG
6
OIL PAN WITH OIL DRAIN SCREW PLUG
6
OIL PAN
6
OIL PAN
6
OIL PAN ,173136
6
OIL PAN WITH OIL DRAIN SCREW PLUG
6
OIL PAN WITH OIL DRAIN SCREW PLUG
6
OIL PAN WITH OIL DRAIN SCREW PLUG,154751
6
OIL PAN WITH OIL DRAIN SCREW PLUG
6
OIL PAN WITH OIL DRAIN SCREW PLUG
6
OIL PAN LESS SCREW PLUG
6
OIL PAN
6
OIL PAN WITH OIL DRAIN SCREW PLUG
6
OIL PAN , NOTE SCREW LENGTH, Replaced By: A4020105513, +004N910105008014, +011N910143008016
6
OIL PAN , Replaced By: A4420104813, +001A4030140345, +001A4420180080, +002A4421870080, +001A4039970032, +002A4429975065, +002N007603026109
6
OIL PAN , Replaced By: A4420101413, +001A4421800015
6
OIL PAN
6
OIL PAN , Replaced By: A4420102413
6
OIL PAN ,733619, Replaced By: A4420104813
6
OIL PAN , Replaced By: A4420104113
6
OIL PAN ,589779733619, Replaced By: A4420104813
20
THREADED INSERT REPAIR PURPOSES M 14X1.5X10.5
20
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
20
THREADED INSERT
20
THREADED INSERT
41
SEAL RING FROM FUEL TANK TO FUEL TANK
48
SCREW PLUG FUEL TANK
48
SCREW PLUG , Replaced By: N000908014009
48
SCREW PLUG , Replaced By: N007604014110
55
SEAL RING OIL DRAIN 26X34 MM
62
SCREW PLUG
68
SUCTION PIPE OIL SCAVENGING
68
SUCTION PIPE OIL SCAVENGING, NOT USED
68
SUCTION PIPE OIL SCAVENGING
68
SUCTION PIPE OIL SCAVENGING
68
SUCTION PIPE OIL SCAVENGING
69
SCREW PLUG
76
SCREW PLUG
83
FITTING OIL SCAVENGING
83
FITTING GUIDE TUBE TO OIL PAN
83
FITTING OIL DIPSTICK GUIDE TUBE,114680154750
83
FITTING OIL SCAVENGING
83
FITTING OIL DIPSTICK GUIDE TUBE
85
WASHER SUCTION PIPE TO OIL PAN
87
SEAL RING FROM FUEL TANK TO FUEL TANK
87
SEAL RING
90
SEAL RING OIL DRAIN 26X34 MM
90
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
97
SCREW PLUGROCKINGER,TYP 59 U150
97
SCREW PLUG
97
SCREW PLUG
97
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
111
FLANGE COOLING WATER FEED LINE LOCK
111
FLANGE
111
FLANGE
118
OIL FILLER NECK
118
OIL FILLER NECK
125
GASKET OIL FILLER NECK
132
GASKET OIL RETURN LINE TO TURBOCHARGER
132
GASKET OIL FILLER NECK TO OIL PAN
139
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
139
SPRING WASHER , Replaced By: N000137008212
146
SPRING WASHER STEERING COLUMN BRACKET TO CAB
153
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
153
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
162
SCREW PLUG FUEL TANK
162
SCREW PLUG , Replaced By: N007604014110
163
SEAL RING FROM FUEL TANK TO FUEL TANK
165
SCREW PLUG
166
SEAL RING OIL DRAIN 26X34 MM
167
SCREW BRACKET TO SIDE MEMBER
167
SCREW , Replaced By: N304017010002
168
WASHER SUCTION PIPE TO OIL PAN
188
SCREW PIPE CLAMP
188
SCREW , Replaced By: N304017008021
190
SHIM OIL PAN TO CYLINDER CRANKCASE
195
GASKET OIL PAN TO CYLINDER CRANKCASE
195
GASKET , Replaced By: A4420140222
195
GASKET , Replaced By: A4420141122
195
GASKET , Replaced By: A4420141122
195
GASKET , Replaced By: A4420141122
202
WASHER , Replaced By: N000125008443
202
SCREWTO 001 477 20 01,001 477 21 01
202
WASHER EXHAUST MUFFLER TO STRAP
202
WASHER BRACKET TO CROSS MEMBER
209
SCREW CONTROL ARM TO CENTRAL BEARING
209
SCREW OIL PAN TO CYLINDER CRANKCASE M 8X210
209
SCREW CLAMP ON BRACKET
209
SCREW BRACKET TO ENGINE
209
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X80
209
SCREWTO 001 477 20 01,001 477 21 01
209
SCREW BRACKET TO BEARING BRACKET
585
CAP OIL PRESSURE RELIEF VALEE,899057
999
FLANGE , Replaced By: A4079975250
999
OIL PAN , Replaced By: A4220100813
999
OIL PAN , 402222434 422000902 EXHAUST STOCK OF OLD PARTS FIRST UP TO ENGINE 112779, Replaced By: A4220101813
999
OIL PAN , Replaced By: A4220103913, +001A4239970172
999
OIL PAN , Replaced By: A4220101013
999
OIL PAN , Replaced By: A4420100713, +001A4229970972
999
OIL PAN , Replaced By: A4420100013, +001A4229970972
999
OIL PAN ,114680154750, Replaced By: A4420100313, +001A4429975072
999
THREADED UNION
999
HEATING COIL , Replaced By: A4221880096
999
SUCTION PIPE , 402236183 422020310
999
BRACKET SUCTION PIPE TO OIL PUMP
999
OIL LINE , Replaced By: A4421871601, +001A0011849225
999
FITTING OIL SCAVENGING
999
OIL PAN , Replaced By: A4420101413, +001A4421800015
999
OIL PAN
999
OIL PAN ,499523 EXHAUST STOCK OF OLD PARTS FIRST UP TO ENGINE 553967, Replaced By: A4420104013
999
OIL PAN , Replaced By: A4420104613
999
OIL PAN ,589778, Replaced By: A4420104713, +001A4421802022, +001A4421871040, +001A4039970032, +001N003901022006, +001N003952022100, +001N007603026109
999
OIL PAN
999
SUCTION PIPE , Replaced By: A4421801252
999
SUCTION PIPE OIL PUMP
999
SUCTION PIPE OIL SCAVENGING
999
SCREW BULKHEAD SCREW FITTING
999
NUT OIL PAN TO CYLINDER CRANKCASE
999
SCREW OIL PRESSURE RELIEF VALEE M 8X55,899057
999
SCREW , Replaced By: N304017008008
999
STUD BOLT FAN,INTERMEDIATE PIECE,AND PULLEY TO HUB OR TO DAMPER,RESP. M8 X 115
999
SEAL RING OIL LINE TO OIL COOLER
999
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
999
SCREW STRAP TO EXHAUST MUFFLER
999
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
SCREW STOP TO BATTERY CASE
999
SCREW FITTING , Replaced By: A4039971172
999
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
999
SCREW OIL SCAVENGING
999
SUCTION BASKET
999
SPACER TUBE SHAPED HOSE ON AIR INTAKE PIPE
999
GASKET , Replaced By: A4421870080
999
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SUCTION PIPE , Replaced By: A4021801752
999
OIL PAN , Replaced By: A4020102713
999
OIL PAN , Replaced By: A4020102613
999
OIL PAN , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE: 402236183 422020310, Replaced By: A4220100713
999
OIL PAN , Replaced By: A4020104613
999
OIL PAN
999
OIL PAN ,222433, Replaced By: A4220100413, +001A4221801152, +001A4222051340, +001A4039970032, +001N007603026305
999
OIL PAN
999
OIL PAN
999
GASKET , Replaced By: A4420140222
999
SUCTION PIPE , Replaced By: A4021801052
999
OIL LINE
999
SUCTION PIPE , Replaced By: A4021801952
999
SUCTION PIPE , Replaced By: A4021801552
999
SUCTION PIPE , Replaced By: A4021801452
999
SUCTION PIPE
999
SUCTION PIPE
999
SUCTION PIPE , Replaced By: A4221800252
999
SUCTION PIPE , Replaced By: A4221800052
999
GASKET , Replaced By: A4420180080
999
SUCTION PIPE
999
STRAINER
999
GASKET , Replaced By: A4441880180
999
FLANGE
