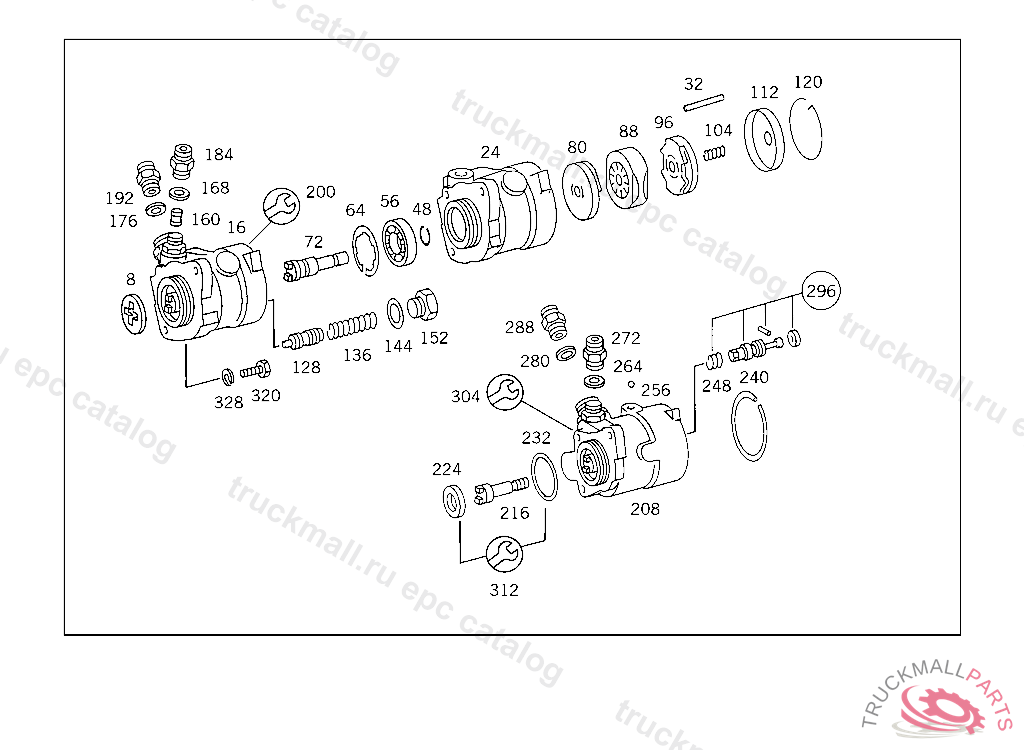

Поз.
Артикул
Описание
8
FOLLOWER POWER STEERING PUMP AT ENGINE
16
HYDRAULIC PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 166242YEAR OF MANUFACTURE 1991 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0004602480
24
HOUSINGTO 000 466 67 01
32
DOWEL PINTO 001 466 77 01
48
SNAP RINGTO 000 431 94 14,000 431 96 14
56
GROOVED BALL BEARINGTO 001 466 15 01
64
LOCK RINGTO 000 460 23 80
72
DRIVE SHAFT001 466 72 01/73 01,000 460 24 80,
80
COVER000 460 24 80/25 80,001 466 06 01
88
ROTOR SET , Replaced By: A0004663421
96
COVER , Replaced By: A0004667205
104
SPRINGTO 000 460 23 80
104
SPRING , Replaced By: A0059934201
112
COVER , Replaced By: A0004666505
120
SNAP RINGTO 000 460 23 80
128
PISTON
128
PISTON , Replaced By: A0004664583
128
PISTON , Replaced By: A0004660483
136
SPRING
144
SEAL RING LINE CONNECTION
152
SCREW PLUGTO 000 460 23 80
160
CARTRIDGETO 345 466 00 01
168
SEAL RINGTO 006 997 00 72
176
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
184
FITTING DELIVERY LINE TO PUMP
192
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
200
REPAIR KIT POWER STEERING PUMP AT ENGINE TO 000 460 23 80
208
HYDRAULIC PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 137189YEAR OF MANUFACTURE 1990, Replaced By: A0004601480
208
HYDRAULIC PUMP , 364 014239 366 051076, Replaced By: A0014664301, +001A0029971572, +001N003901022002, +001N007603016103, +001N007603026104
216
DRIVE SHAFTTO 001 466 18 01/31 01/43 01/45 01
224
SEAL RINGTO 001 466 18 01/31 01/43 01/45 01
232
SEAL RINGTO 001 466 18 01/31 01/43 01/45 01
240
SNAP RINGTO 001 466 18 01/31 01/43 01/45 01
248
SPRINGTO 124 460 17 80,126 460 22 80
256
BALLTO 001 466 18 01/31 01/43 01/45 01
264
SEAL RINGTO 006 997 00 72
272
FITTING DELIVERY LINE TO PUMP
272
FITTING , Replaced By: A0029971572
280
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
288
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
288
FITTING , Replaced By: N003901022006
296
VALVE PARTS KIT TO 001 466 18 01/43 01
304
REPAIR KIT POWER STEERING PUMP TO 001 466 18 01/31 01/43 01/45 01
312
GASKET KIT POWER STEERING PUMP TO 001 466 18 01/31 01/43 01/45 01
320
SCREW SHIFTING ROD TO JOINT
328
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
HYDRAULIC PUMP , Replaced By: A0004602480
