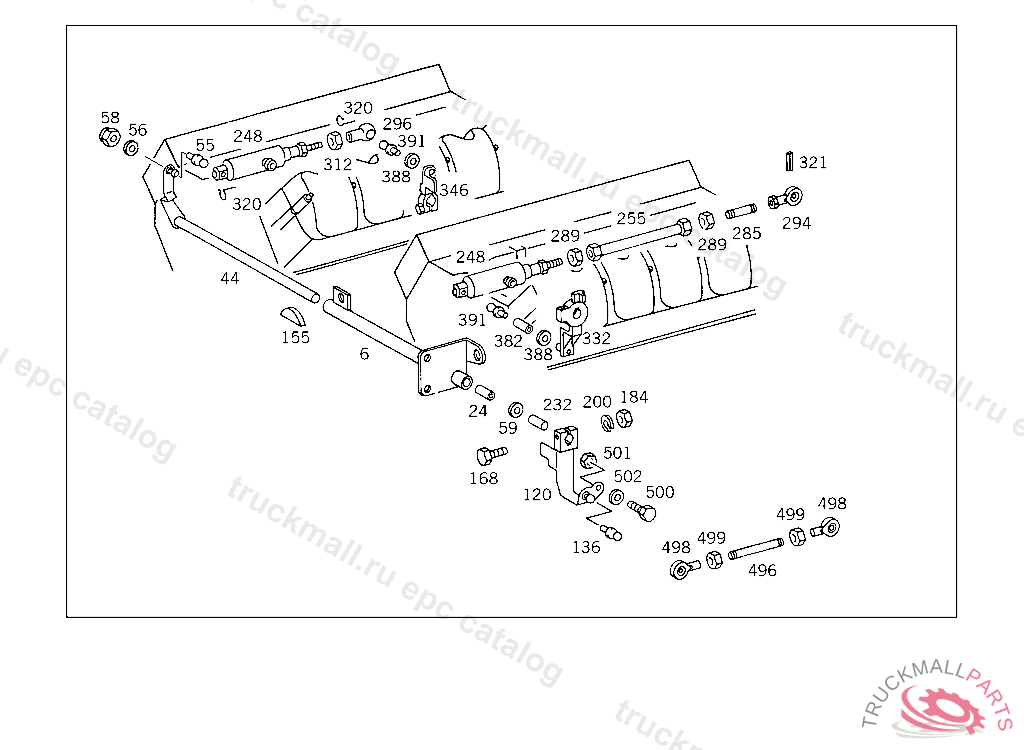

Поз.
Артикул
Описание
6
BEARING TUBE CONTROL SHAFT
24
BUSHING MOUNTING
44
SHAFT CONTROL
44
SHAFT CONTROL
55
BALL PIVOT
55
BALL PIVOT , Replaced By: A3129910120
55
BALL PIVOT LEVER
56
SEAL RING MODULATION PRESSURE CONTROL
58
NUT HEATING PIPE TO BRACKET
59
COVERING
120
LEVER CONTROL SHAFT
120
LEVER , Replaced By: A4420701521
120
LEVER CONTROL SHAFT
136
BALL PIVOT LEVER
136
BALL PIVOT
136
BALL PIVOT
136
BALL PIVOT , Replaced By: A3129910120
136
BALL PIVOT
155
WOODRUFF KEY
168
HEXAGON HEAD BOLT. SCREW STARTER SWITCH TO STEERING COLUMN JACKET TUBE
184
NUT HEATING PIPE TO BRACKET
184
NUT BALL PIVOT TO LEVER
200
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
232
BUSHING
248
CYLINDER (OPERATING CYLINDER)
248
CYLINDER , 364 021703 366 061186, Replaced By: A0000721512, +001A3649910322, +001N900071008100
248
CYLINDER , Replaced By: A0000721512
248
CYLINDER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0000720512, +001A4420720624
248
CYLINDER , NOT USED
248
CYLINDER (OPERATING CYLINDER)
248
CYLINDER (OPERATING CYLINDER),918799
248
CYLINDER (OPERATING CYLINDER)
248
CYLINDER INJECTION PUMP CONTROL
255
ROD POWER CYLINDER
285
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
285
PULL ROD BRACKET TO FRAME
289
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
294
BALL PIN PULL ROD, UP TO ENGINE 387047 YEAR OF MANUFACTURE 1995
294
BALL PIN PULL ROD, UP TO ENGINE 387047 YEAR OF MANUFACTURE 1995
296
BALL SOCKET
296
BALL SOCKET ,266368
296
BALL SOCKET , 364 021704 366 061187
296
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
312
NUT AT SHIFT LEVER
312
NUT , Replaced By: N304035008001
312
NUT , Replaced By: A0009900851
312
NUT
312
NUT
312
NUT BALL PIVOT TO LEVER
320
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
321
CLAMPING SLEEVE. ROLL PIN VALVE TO SHIFT LEVER
332
LEVER (CONTROL LEVER)
346
LEVER (CONTROL LEVER),INJECTION PUMP
346
LEVER
382
SPACER TUBE VALVE TO BRACKET
388
SEAL RING MODULATION PRESSURE CONTROL
391
BALL PIVOT , Replaced By: N071803010102
391
BALL PIVOT
391
BALL PIVOT LEVER
391
BALL PIVOT , Replaced By: A3129910120
496
PULL ROD BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
498
BALL PIN PULL ROD, UP TO ENGINE 387047 YEAR OF MANUFACTURE 1995
499
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
500
SCREW CONTROL SHAFT LEVER
501
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
502
WASHER , Replaced By: N000125008443
502
WASHER EXHAUST MUFFLER TO STRAP
999
CYLINDER , Replaced By: A0000720112
999
SHAFT ,256464, Replaced By: A4220700323, +001A4073015088
999
CYLINDER , Replaced By: A0000720112, +001A4030720324, +001A4039910022, +002N000934006007
999
BRACKET , Replaced By: A4230700140
999
BEARING BRACKET , Replaced By: A4030702724, +001A4030721250
999
BEARING BRACKET , Replaced By: A4030702624
999
CYLINDER , Replaced By: A0000720412
999
LEVER , Replaced By: A4410700321
999
BEARING BRACKET
999
BEARING BRACKET , Replaced By: A4220701824
999
BEARING BRACKET CONTROL SHAFT,145362,404 001277
999
LEVER , Replaced By: A4030707621
999
LEVER , Replaced By: A4030708321
999
LEVER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 590957, Replaced By: A4420702521
999
LEVER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 590957, Replaced By: A4420702521
999
PIN , Replaced By: A4030720574
999
SPACER TUBE CYLINDER TO LEVER, NOT USED
999
PIN , Replaced By: A4221440174, +001N999900008004
999
SPACER TUBE
999
SPRING , Replaced By: A4039931010
999
SPRING , Replaced By: A4229930010
999
SHAFT , Replaced By: A4220700323, +001A4073015088
999
BEARING BRACKET , Replaced By: A4220701524
999
SHAFT , Replaced By: A4220700723
999
SHAFT , 402.910 256465 404.901 005579 422.905 047593460461, Replaced By: A4420700323, +001N071803010102, +001N913004006002
999
SHAFT CONTROL
999
LEVER ,608852, Replaced By: A4420703521
999
PIN , Replaced By: A4421440574
999
SPRING , Replaced By: A4429935110
999
BRACKET , Replaced By: A4410700740, +001A4411400540, +006N000125008418, +004N000931008320, +002N000933008151, +002N000934008010, +004N007349008006
999
BRACKET
999
CYLINDER (OPERATING CYLINDER), NOT USED
999
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4420705921
999
LEVER LOAD CONTROL, TO BE ADAPTED DURING ASSEMBLY
999
LEVER INJECTION PUMP CONTROL
999
BRACKET
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 442 513557, Replaced By: A4420722340
999
BRACKET , Replaced By: A4420722840
999
WASHER COVERING TO CAB
999
PIN STRAP TO BRACKET
999
WOODRUFF KEY INJECTION PUMP
999
BALL PIVOT
999
NUT L.H. THREAD
999
PULL ROD FROM REAR CONTROL LEVER TO CONTROL SHAFT 600 MM, TO BE ADAPTED DURING ASSEMBLY
999
STOP INTERMEDIATE SPEED STOP
999
STOP INTERMEDIATE SPEED STOP
999
CYLINDER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 051317, Replaced By: A0000701583
999
CYLINDER , Replaced By: A0000701983, +001A4410721740, +001A4412230641
999
CYLINDER , Replaced By: A0000723212
999
REGULATING UNIT , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 258570/92, Replaced By: A0000720265
999
CYLINDER , Replaced By: A0000720612, +001A4030720574
999
CYLINDER , Replaced By: A0000720812
999
CYLINDER , Replaced By: A0004304826
999
CYLINDER , Replaced By: A0000721512
999
CYLINDER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0000720512, +001A4420720624
999
CYLINDER , NOT USED
999
CYLINDER (OPERATING CYLINDER)
999
CYLINDER , Replaced By: A0004302326
999
CYLINDER (POWER CYLINDER)
999
CYLINDER , Replaced By: A0004304926
999
BUSHING , Replaced By: A0004340850
999
BALL SOCKET PULL ROD TO LEVER
999
FITTING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0069971672
999
TUBE GUIDE TUBE TO CYLINDER HEAD
999
LEVER
999
WASHER , Replaced By: N000988008006
999
BUSHING , Replaced By: A4039920001
999
SPACER TUBE , Replaced By: A6673170253
999
CYLINDER
