Поз.
Артикул
Описание

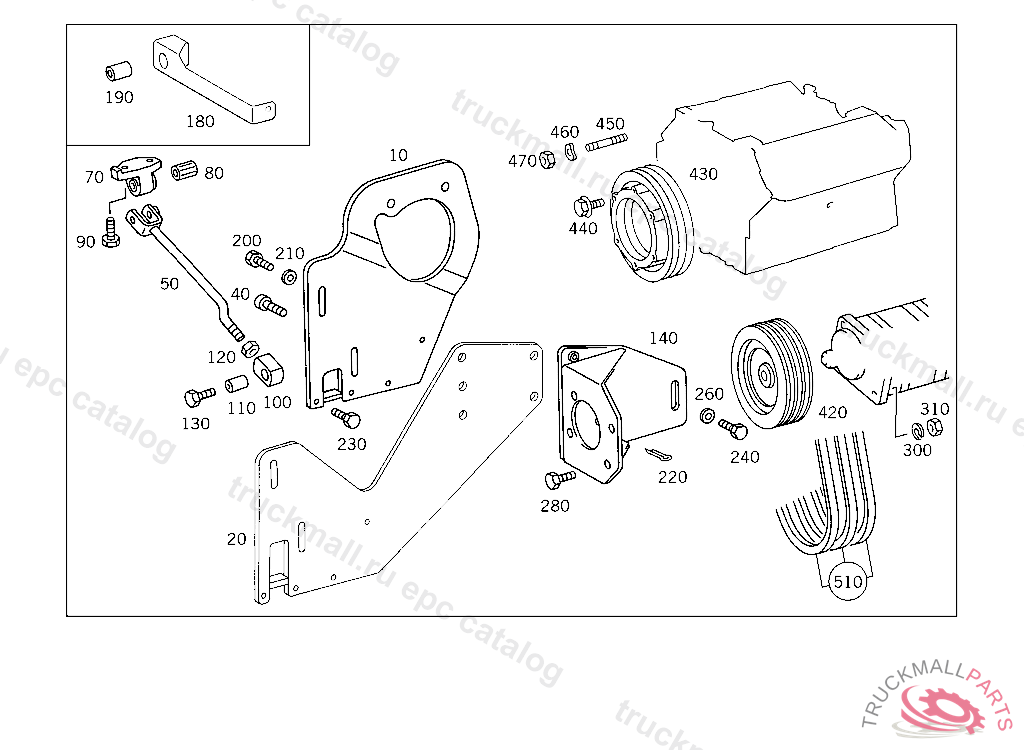

10
SUPPORT BRACKET TO COMPRESSOR BRACKET, TO BE ADAPTED DURING ASSEMBLY
20
BRACKET (SUPPORT),HYDRAULIC PUMP CONSOLE
40
SCREW SUPPORT TO CYLINDER CRANKCASE
40
SCREW SUPPORT TO CYLINDER CRANKCASE
50
STIFFENING
70
BEARING BRACKET
80
BUSHING
90
SCREWM 10X20
100
BEARING BODY BRACING TO SUPPORT
110
BUSHING
120
NUT RELEASE BEARING LUBRICATION
130
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
140
SLIDE (CONSOLE),HYDRAULIC PUMP
180
BRACKET CLAMPING BOLT TO OIL PAN
190
SPACER TUBE CLAMP TO BRACKET
200
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
210
WASHER STRUT TO CROSS MEMBER
210
WASHER , Replaced By: N007349010007
220
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
220
COTTER PIN LEVER TO ROD
230
SCREW CLAMP TO EXHAUST PIPE
240
SCREW BRACKET TO TRANSMISSION
260
WASHER BRACKET TO SIDE MEMBER
260
WASHER
280
SCREW SLIDING PLATE M8X1,5X35
300
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
310
NUT
420
PULLEY GEAR TYPE HYDRAULIC PUMP
430
PULLEY VIBRATION ABSORBER
430
PULLEY VIBRATION ABSORBER
440
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
440
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
450
STUD BOLT FAN,INTERMEDIATE PIECE,AND PULLEY TO HUB OR TO DAMPER,RESP.
460
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
460
SPRING WASHER , Replaced By: N000137008212
470
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
510
V-BELT12.5X1175
510
V-BELT HYDRAULIC PUMP 12.5X1375 MM
510
V-BELT , Replaced By: A0069972092
