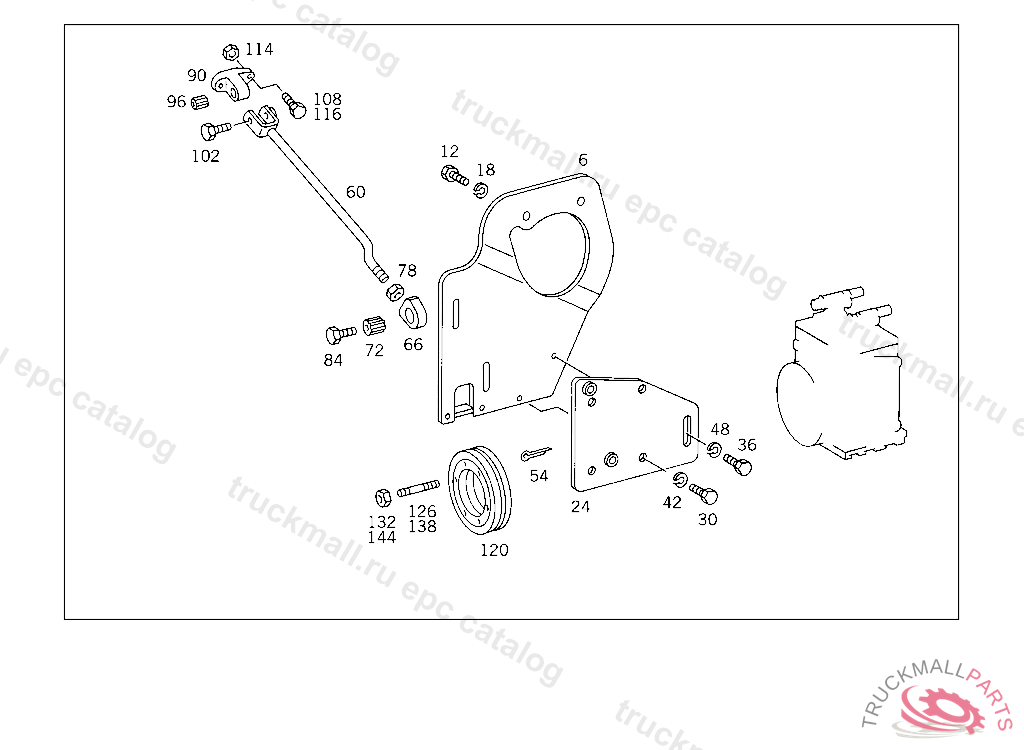

Поз.
Артикул
Описание
6
BRACKET , Replaced By: A4221300235
6
SUPPORT BRACKET TO COMPRESSOR BRACKET, TO BE ADAPTED DURING ASSEMBLY
12
SCREW SUPPORT TO CYLINDER CRANKCASE
18
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
24
SUPPORT YORK COMPRESSOR,617.024-15-229475
24
SUPPORT YORK COMPRESSOR
30
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
30
SCREW END PIECE TO EXHAUST PIPE M 10X25
30
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
30
SCREW , Replaced By: N304017010050
30
SCREW , Replaced By: N304017010055
36
SCREW , Replaced By: N308676012038
36
SCREW BRACKET TO TRANSMISSION
42
WASHER STRUT TO CROSS MEMBER
42
WASHER , Replaced By: N007349010007
48
WASHER BRACKET TO SIDE MEMBER
54
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
54
COTTER PIN LEVER TO ROD
60
STIFFENING
60
STIFFENING , 229475
66
BEARING BODY BRACING TO SUPPORT
72
BUSHING
78
NUT JOINT TO BRACKET
78
NUT , Replaced By: N308675014001
84
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
90
BEARING BRACKET
90
BEARING BRACKET , Replaced By: A4222300039
96
BUSHING
96
BUSHING
102
SCREW
108
SCREW PIPE TO CHARGING AIR INTERCOOLER
114
NUT BRACKET TO SUPPORT AND TO END PIECE
116
SCREW BRACKET TO CONSOLE
116
SCREW , Replaced By: N304017010043
120
PULLEY CRANKSHAFT
120
PULLEY VIBRATION ABSORBER
120
PULLEY TWO-GROOVE
120
PULLEY TWO-GROOVE
126
STUD BOLT FAN TO CRANKSHAFT M 8X65
132
NUT
138
STUD BOLT PULLEY TO VIBRATION ABSORBER
144
NUT
144
NUT , Replaced By: N304032008006
999
BUSHING
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
STIFFENING , Replaced By: A4032300194
999
STIFFENING , Replaced By: A4032300294, +001A4031504170, +001A4031504370, +001A4032300039
999
BRACKET , Replaced By: A4032300740
999
BRACKET ,617.024-15-229475, Replaced By: A4222300140, +001A4221300035, +001A4222300139, +001A4222300294
999
INTERMEDIATE PIECE , Replaced By: A4220350314, +006N000933008247
999
INTERMEDIATE PIECE , Replaced By: A4030350914
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
STIFFENING , Replaced By: A4222300394, +001A4442300008, +001N000439014206
