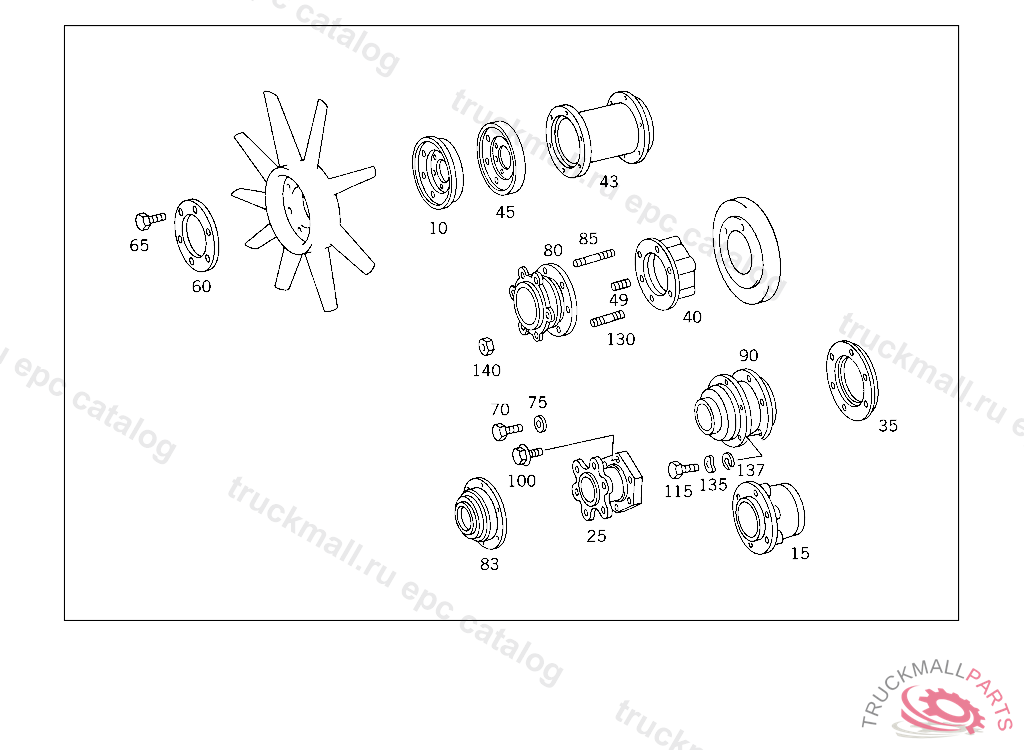

Поз.
Артикул
Описание
10
INTERMEDIATE PIECE FAN
15
INTERMEDIATE PIECE
15
INTERMEDIATE PIECE FAN
15
INTERMEDIATE PIECE FAN
25
INTERMEDIATE PIECE FAN
25
INTERMEDIATE PIECE FAN
35
INTERMEDIATE PIECE PULLEY
40
INTERMEDIATE PIECE FAN HUB
40
INTERMEDIATE PIECE45 MM, 441-442534278 444011271
40
INTERMEDIATE PIECE PULLEY
40
INTERMEDIATE PIECE47 MM
40
INTERMEDIATE PIECE FAN
40
INTERMEDIATE PIECE
40
INTERMEDIATE PIECE
40
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
40
INTERMEDIATE PIECE PULLEY
40
INTERMEDIATE PIECE PULLEY 66 MM
40
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
40
INTERMEDIATE PIECE66 MM
40
INTERMEDIATE PIECE , Replaced By: A4030350914
43
INTERMEDIATE PIECE
45
INTERMEDIATE PIECE FAN
49
THREADED INSERT
60
SPACER RING FAN
65
SCREW BRACKET TO SIDE MEMBER,K 168169
65
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
65
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X80
65
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
65
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
65
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
65
SCREW BRACKET TO EXHAUST PIPE BRACKET
65
SCREW VALVE TO CAB M 8X85
65
SCREW , Replaced By: N000933008134
65
SCREW , Replaced By: N000933008337
65
SCREW , Replaced By: N304017008016
65
SCREW , Replaced By: N304017008034
65
SCREW , Replaced By: N304017008033
65
SCREW , Replaced By: A0089907401
65
SCREW , Replaced By: A0099900101
65
HEXAGON HEAD BOLT SHIFT LEVER TO CAB FLOOR M 8X45
65
HEXAGON HEAD BOLT. SCREW , Replaced By: N910143008016
65
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
65
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
70
SCREW , Replaced By: N304017008018
70
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
75
WASHER , Replaced By: N000125008443
75
WASHER EXHAUST MUFFLER TO STRAP
80
HUB FAN
80
HUB
80
HUB
83
HUB FAN
85
STUD BOLT FAN HUB TO INTERMEDIATE PIECE
90
HUB FAN
90
HUB FAN
100
SCREW INTERMEDIATE PIECE AND PULLEY TO WATER PUMP
100
SCREW PIPE BEND TO BRACKET
115
SCREW BRACKET TO EXHAUST PIPE BRACKET
115
SCREW WATER PUMP TO CYLINDER CRANKCASE
115
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
115
SCREW FITTING TO TRANSMISSION M8X32
115
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
115
SCREW BRACKET TO SIDE MEMBER
115
SCREW BRACKET TO CROSS MEMBER
115
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
115
HEXAGON HEAD BOLT VALVE TO BRACKET M8X65
115
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
115
SCREWM X 110
115
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET M 8X95
115
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
115
SCREW 3/2-WAY VALVE TO BRACKET
115
SCREW , Replaced By: N304014008018
115
SCREW , Replaced By: N304017008053
115
SCREW VALVE TO BRACKET, Replaced By: N304014008002
115
SCREW , Replaced By: N304014008011
115
SCREW FILTER BOWL TO FILTER HEAD M 8X90,841477 ONLY FOR USE WITH BOSCH DOUBLE FILTER
115
SCREW , Replaced By: N304017008018
115
SCREW , Replaced By: N304017008027
115
SCREW , Replaced By: N304017008034
115
SCREW , Replaced By: N304017008037
115
SCREW , Replaced By: N304017010002
130
STUD BOLT PULLEY TO VIBRATION ABSORBER
130
STUD BOLT HUB,INTERMEDIATE PIECE AND PULLEY TO VIBRATION ABSORBER
130
STUD BOLT AIR COMPRESSOR TO SUPPORT,238225/92
130
STUD BOLT OIL PAN TO CYLINDER CRANKCASE M 8X40
130
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
130
STUD BOLT FAN,INTERMEDIATE PIECE,AND PULLEY TO HUB OR TO DAMPER,RESP.
130
STUD BOLT TAIL LAMP BRACKET
130
STUD BOLT SECONDARY PUMP TO TRANSMISSION CASE
130
STUD BOLT FAN TO CRANKSHAFT THRUST RING
130
STUD BOLT OIL PAN TO CYLINDER CRANKCASE M 8X50
130
STUD BOLT FAN TO CRANKSHAFT THRUST RING
130
STUD BOLT HUB,INTERMEDIATE PIECE AND PULLEY TO VIBRATION ABSORBER M 8 X 105
135
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
135
SPRING WASHER , Replaced By: N000137008212
137
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
140
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
V-BELT FAN DRIVE
999
SEAL RING SUPPORT TO CYLINDER CRANKCASE
999
CONNECTOR PIPE SOCKET TO THERMOSTAT HOUSING
999
INTERMEDIATE PIECE , Replaced By: A4210350314
999
BRACKET
999
PLATE , Replaced By: A4032050242
999
SPACER TUBE
999
INTERMEDIATE PIECE , Replaced By: A4220350214
999
INTERMEDIATE PIECE , Replaced By: A4040350514
999
INTERMEDIATE PIECE , Replaced By: A4220350214
999
HUB , Replaced By: A4032000926
999
PULLEY
999
SPACER RING PULLEY
999
INTERMEDIATE PIECE , Replaced By: A4030350914
999
SPACER RING PULLEY
999
SPRING WASHER , Replaced By: N000137008212
999
SCREW , Replaced By: N304017008018
999
STUD
999
STUD
999
STUD BOLT PULLEY TO HUB
999
SCREW CLAMP ON BRACKET
