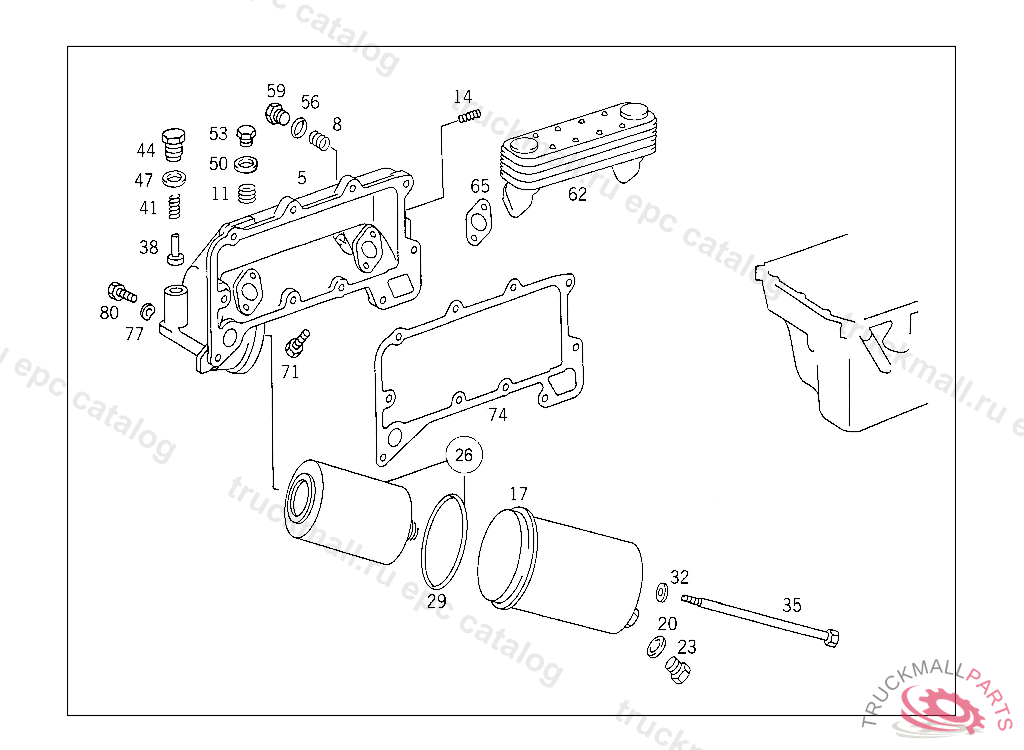

Поз.
Артикул
Описание
5
COVER OIL FILTER, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
THREADED INSERT DE-AERATION LINE TO COOLING WATER LINE
11
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
14
THREADED INSERT
17
FILTER BOWL OIL FILTER BOWL
20
SEAL RING VALVE TO VALVE,K 025179
23
SCREW PLUG SHIFTING SHAFT DETENT
26
FILTER ELEMENT RANGE OF DELIVERY
29
SEAL RING FILTER BOWL TO FILTER HEAD
32
SEAL RING FUEL LINE TO FEED PUMP
35
SCREW
38
VALVE
41
SPRING BY-PASS VALVE
44
SCREW PLUG
47
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
50
SEAL RING OIL DRAIN 26X34 MM
53
SCREW PLUG
56
SEALING RING. SEAL RING ENGINE BREATHING
59
SCREW PLUG FUEL TANK
59
SCREW PLUG, FILLING OIL DRAIN
59
SCREW PLUG , Replaced By: A1119970330
59
SCREW PLUG , Replaced By: N007604014110
62
OIL COOLER , ORDER NUMBER: 001 188 89 01/33
62
OIL COOLER , ORDER NUMBER: 001 188 88 01/33
65
SEAL. GASKET , Replaced By: A3661880880
65
GASKET , Replaced By: N917003026003
71
SCREW , Replaced By: N304017008021
71
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
71
SCREW PIPE CLAMP
71
HEXALOBULAR BOLT. SCREW SUPPORT TO CYLINDER HEAD
74
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
74
GASKET , Replaced By: A4421880280
74
GASKET , Replaced By: A4421880580
77
SPRING WASHER STEERING COLUMN BRACKET TO CAB
80
SCREW CONNECTOR TO REAR SHIFTING ROD
80
SCREW , Replaced By: N304017010047
80
HEXAGON HEAD BOLT P.T.O. TO TRANSMISSION M10X150
999
THREADED UNION OIL FILTER
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
