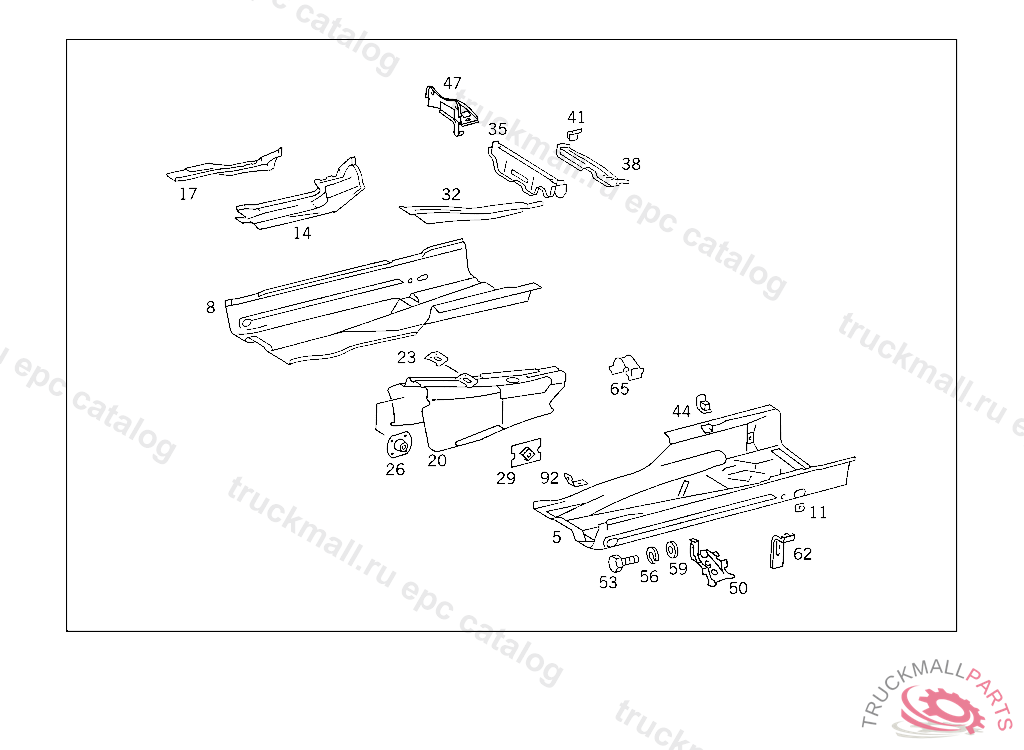

Поз.
Артикул
Описание
5
MAIN FLOOR LEFT
5
MAIN FLOOR , Replaced By: A1246101360
8
MAIN FLOOR. FLOOR , Replaced By: A1246101460, +001A1249104027
8
MAIN FLOOR RIGHT, TO BE ADAPTED DURING ASSEMBLY
11
THREADED CHUCK SAFETY BELT MOUNTING
14
INTERMEDIATE PIECE FLOOR,LEFT
17
INTERMEDIATE PIECE FLOOR,RIGHT
20
TUNNEL
23
BRACKET (SENSOR)
26
THREADED CHUCK PARKING BRAKE TO TUNNEL
29
PLATE INSTRUMENT PANEL/PARKING BRAKE BRACING ON TUNNEL,RIGHT
32
SIDE MEMBER FRONT RIGHT
32
SIDE MEMBER FRONT LEFT
35
CROSS MEMBER BELOW FRONT SEAT,FRONT LEFT
35
CROSS MEMBER BELOW FRONT SEAT,FRONT RIGHT
38
CROSS MEMBER BELOW FRONT SEAT,REAR LEFT
38
CROSS MEMBER BELOW FRONT SEAT,REAR RIGHT
41
CONSOLE FRONT SEAT BRACING
44
CONSOLE CABLE PASSAGE
47
REINFORCEMENT FRONT SEAT CROSS MEMBER
50
CONSOLE LEFT
50
CONSOLE RIGHT
53
SCREW BRACING TO TUNNEL
56
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
59
WASHER EXHAUST MUFFLER TO STRAP
59
WASHER , Replaced By: N000125008443
62
BRACKET CONTROL CABLE
65
TAKE-UP DEVICE PROPELLER SHAFT BEARING IN TUNNEL CENTER
92
MOUNTING ACCELERATOR PEDAL, AT FRONT FLOOR
92
MOUNTING ACCELERATOR PEDAL
