Поз.
Артикул
Описание

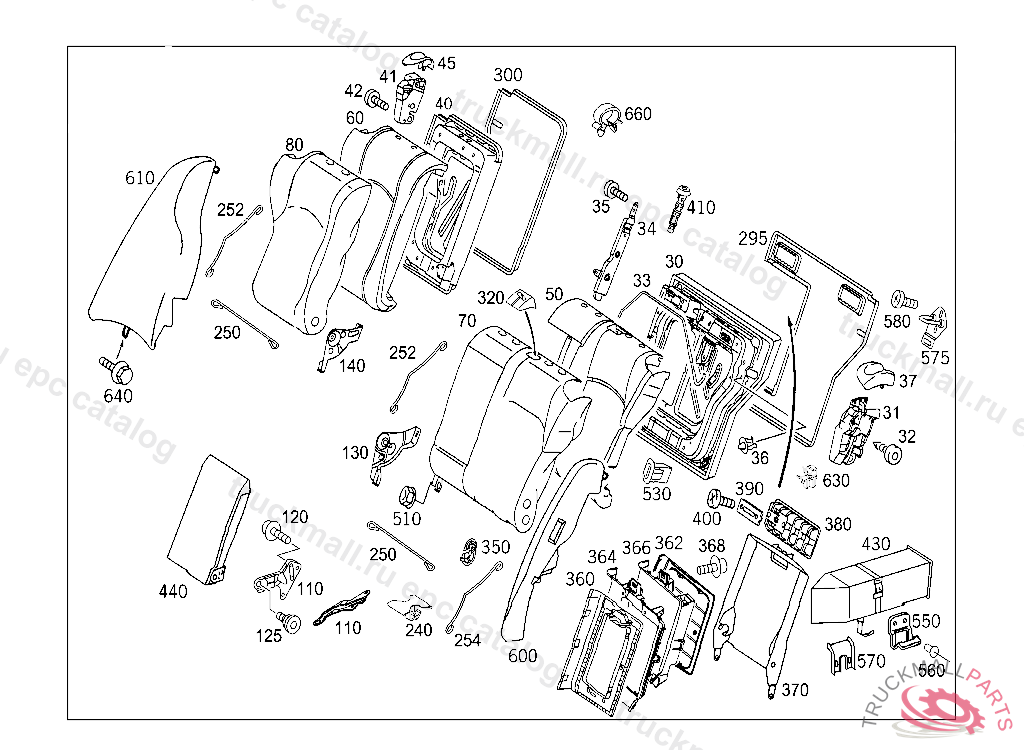

30
BACKREST FRAME LEFT
31
LOCKING MECHANISM LEFT
32
BOLT UNLOCKING MECHANISM TO FRAME M8X50
33
PULL LEFT BACKREST RELEASE
34
BEARING LEFT REAR BACKREST
35
BOLT BRACKET BEARING
36
CABLE CLAMP BOWDEN CABLE
37
COVER LOCKING MECHANISM, 9051QFT203A9010 BLACK
40
BACKREST FRAME RIGHT
41
LOCKING MECHANISM RIGHT
42
BOLT UNLOCKING MECHANISM TO FRAME M8X50
45
COVER LOCKING MECHANISM, 9051QFT203A9010 BLACK
50
REST LEFT
50
REST LEFT
60
REST RIGHT
60
REST RIGHT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
110
BEARING ARMREST ON THE LEFT
110
BEARING ARMREST ON THE LEFT
110
BEARING ARMREST ON THE RIGHT
120
SCREW BRACKET TO COVERING
125
BOLT ARMREST M8X8
130
BEARING LEFT REAR BACKREST
140
BEARING RIGHT REAR BACKREST
240
CLIP TRANSVERSAL TACKING
250
CLAMP COVER STITCHING 285 MM
250
BRACKET SEAT COVER MOUNTING,TRANSVERSE
250
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
250
BRACKET SEAT COVER MOUNTING,TRANSVERSE
252
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
252
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
252
CLAMP COVER STITCHING 285 MM
254
BRACKET SEAT COVER MOUNTING,TRANSVERSE
295
LINING LEFT REAR BACKREST
300
LINING RIGHT REAR BACKREST
320
COVER BELT OUTLET
350
BEARING OUTSIDE LEFT,LEFT SEAT
350
BEARING OUTSIDE RIGHT,RIGHT SEAT
360
TAKE-UP DEVICE SKI-BAG
362
COVER ARMREST
364
COVER SIDE MEMBER
366
COVER ARMREST
368
SCREW CONSOLE TO KNEE PROTECTION PAD
370
FLAP SKI-BAG
380
HOUSING DOUBLE ROLLER BLIND
390
RAIL DOUBLE ROLLER BLIND
400
SCREW GRIP RAIL MOUNTING M 6 X 25
410
GUIDE REAR SEAT HEADREST CENTRAL
410
GUIDE HEAD RESTRAINT, WITH BUTTON
410
GUIDE HEADREST INTO BACKREST
430
DASHPOT SKI-BAG
440
FOLDING ARMREST
440
FOLDING ARMREST
440
FOLDING ARMREST
440
FOLDING ARMREST
510
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
530
CLIP CONSOLE
550
BEARING SKI BAG FLOOR MOUNT, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805
560
RIVET BRACKET BEARING, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805
570
REINFORCEMENT PIVOT BEARING
575
CLAMP TO C-PILLAR LEFT, J 43068720080929
575
CLAMP TO C-PILLAR RIGHT, J 43068720080929
580
BOLT BRACKET M8X24
600
BACKREST OUTSIDE LEFT
600
BACKREST OUTSIDE LEFT
600
BACKREST OUTSIDE LEFT
600
BACKREST OUTSIDE LEFT
610
BACKREST OUTSIDE RIGHT
610
BACKREST OUTSIDE RIGHT
610
BACKREST OUTSIDE RIGHT
610
BACKREST OUTSIDE RIGHT
630
BRACKET REAR BACKREST OUTER LEFT
630
BRACKET REAR BACKREST OUTER RIGHT
640
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
660
CLAMP BOWDEN CABLE TO CAB
