Mercedes Q0003019V013000000 - ABSCHIRMBLECH Q

SMART ROADSTER-COUPE 452.332

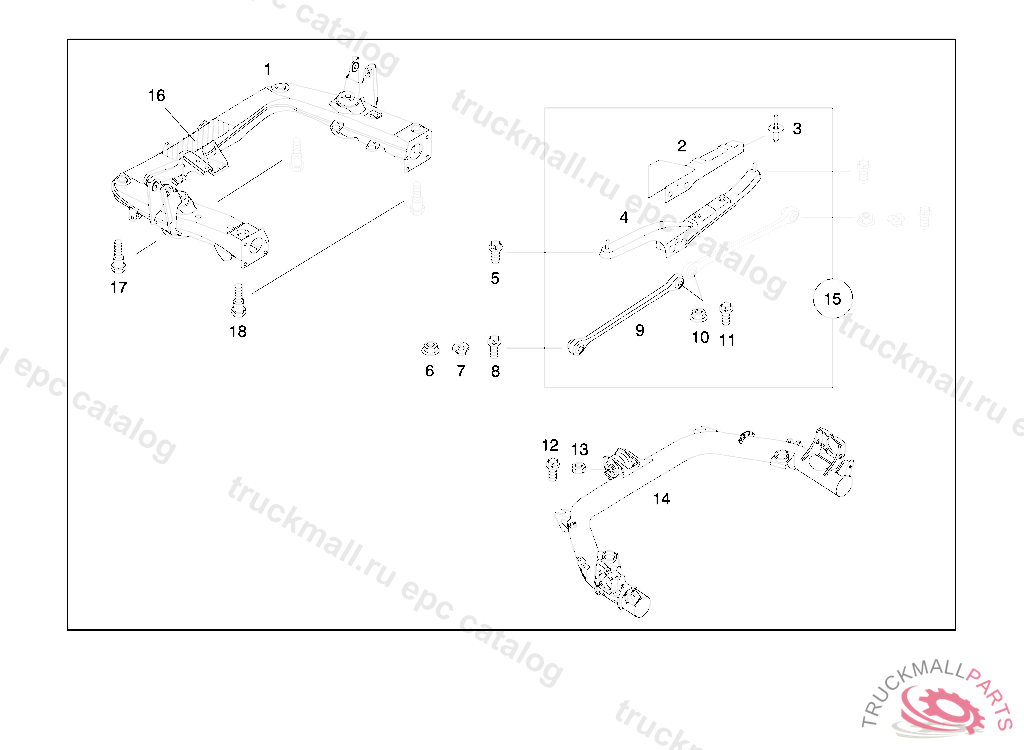

35 REAR AXLE - 045 REAR SUBFRAME

Поз.
Артикул
Описание
1
Q0009465V003000000
FRAME-TYPE INT. SUPPORT
2
Q0003019V013000000
SHIELD CROSSMEMBER REAR A
3
Q0002700V005000000
BLIND RIVET 4.8 X16
4
Q0002087V022000000
CROSSMEMBER REAR AXLE COM
5
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
5
Q0002465V000000000
TORX SCREW M6 X 20 - 8.8TORX M10 X 40 S - 10.9, Replaced By: N910105010011
6
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
6
Q0002301V000000000
NUT MB STANDARD 13023 M12 , Replaced By: N913023012002
7
Q0000203V007000000
RETAINER RUBBER BEARING
7
A0009946710
FUSE
8
Q0004189V000000000
SCREW TORX M7 X 23
8
N910143012007
HEXALOBULAR BOLT TO LEFT STEERING KNUCKLE, FRONT AXLE
9
Q0001765V005000000
CONTROL ARM
10
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
10
Q0002298V000000000
NUT M10 -10
11
N910143010017
HEXALOBULAR BOLT BRACKET AND DISTRIBUTOR TO REAR AXLE I M 10X55
11
Q0004164V000000000
SCREW TORX M7 X 23
12
N000000000121
HEXALOBULAR BOLT
12
Q0004218V000000000
SCREW TORX M7 X 23
13
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
14
Q0009850V003000000
AXLE TUBE COMPLETE
15
Q0012536V002000000
CROSSMEMBER REAR AXLE COM
16
Q0006427V002000000
SCUFF PROTECTION FOIL I-B
17
Q0007891V004000000
SPECIAL SCREW WITH SHANK
18
A0009904811
BOLT
18
Q0007892V004000000
SPECIAL SCREW WITH SHANK
