Mercedes
›
SMART
›
SMART ROADSTER-COUPE
›
452.332
›
47 FUEL SYSTEM
›

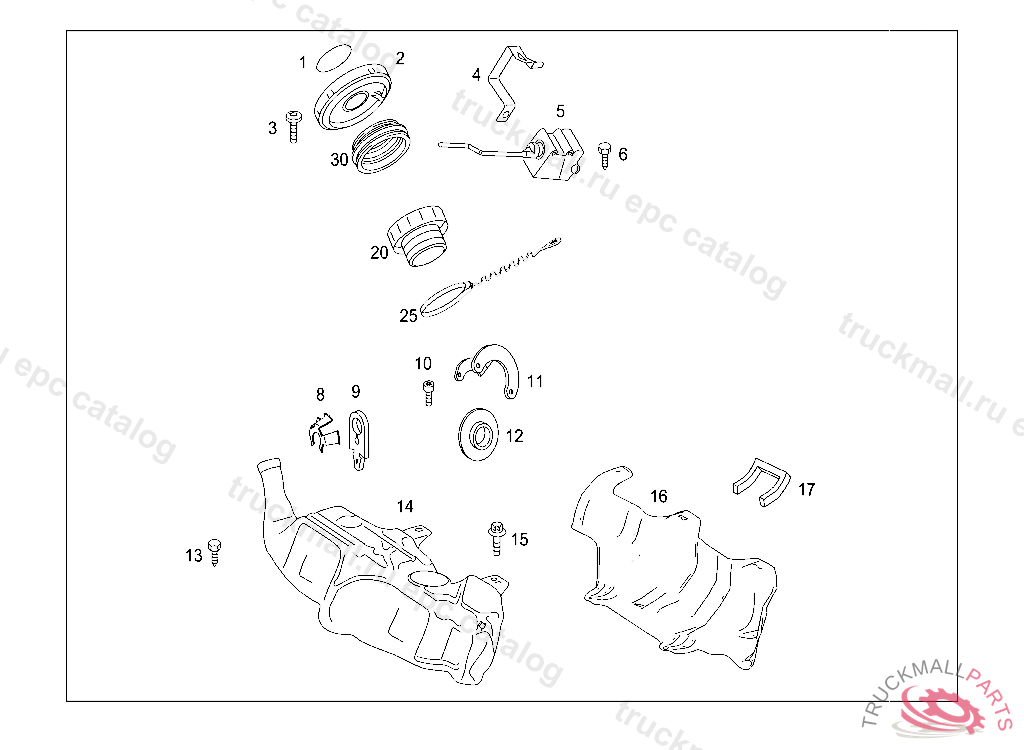

015 FUEL TANK WITH ATTACHMENT PARTS
Mercedes Q0008652V001000000 - HALTEBAND TANKV
SMART ROADSTER-COUPE 452.332
47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS
Поз.
Артикул
Описание
1
Q0017472V001000000
STICKER LOGO
1
Q0015871V001000000
STICKER FUEL CAP SMART-BR
2
Q0001513V011000000
FUEL CAP
2
Q0001513V010000000
FUEL CAP , Replaced By: Q0001513V011000000
3
Q0012377V000000000
SCREW FEMALE TORX M5 X 25
4
Q0014881V001000000
ADAPTER FUEL CAP LOCK ACT
5
Q0009480V004L04600
FUEL CAP LOCK ACTUATOR SOFRASAR FOR KF ROADSTER
6
Q0014880V000000000
MALE HEX ROUND BOLT M6 X
8
Q0014482V001000000
CLIP TEV
9
Q0012665V001000000
HOLDER PURGE VALVE
10
Q0004484V000L02200
CYLINDER HEAD BOLT BEHR CORE PRODUCTION
11
Q0009515V002000000
HOLDER TANK FILLER PIPE
12
Q0014918V002000000
RUBBER SEAL BODY EFST
13
Q0007388V000L03600
SCREW PT K 60 X 25
13
A0019900410
BOLT
14
Q0009961V005000000
FUEL TANK
15
Q0002398V000L03600
TORX SCREW M6 X 20 - 8.8M8 X 1.25 X 30
15
A0009908103
BOLT TANK TO SUBSTRUCTURE
16
Q0011224V004000000
PARTITION TANK
17
Q0013715V001000000
FOAM SEAL HEATER BOX AIR
20
Q0008857V003000000
FUEL FILLER CAP
25
Q0008652V001000000
RETAINING STRAP TANK LOCK
30
Q0000251V011000000
FILLER PIPE COMPARTMENT T , L 00000120020212
