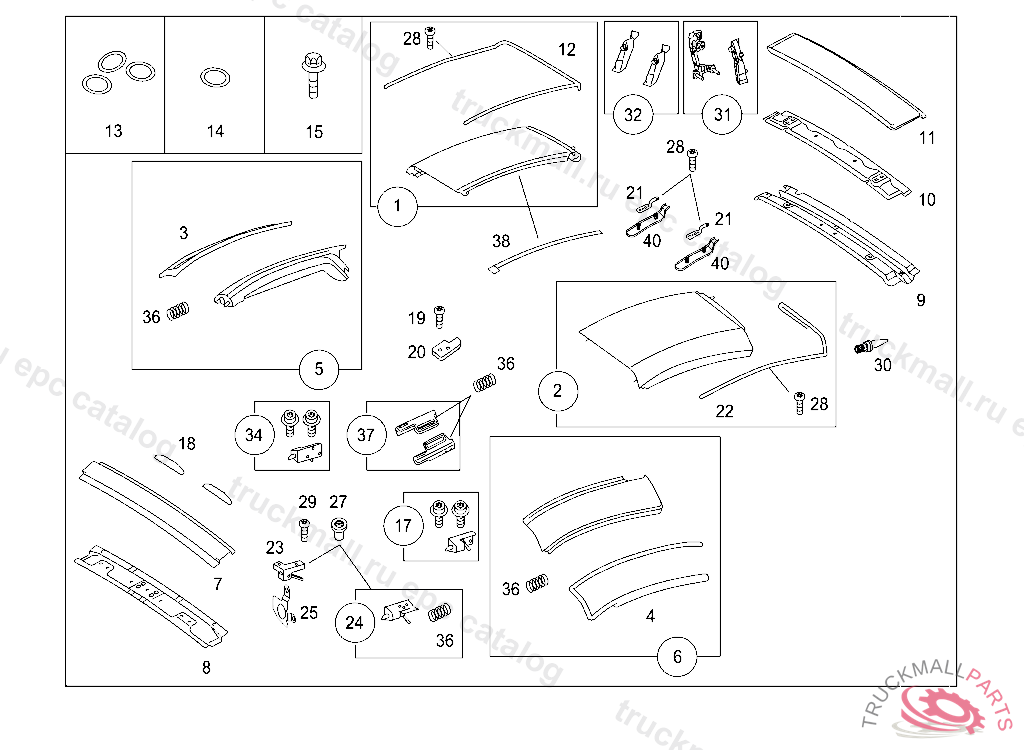

Поз.
Артикул
Описание
1
HARD TOP SHELL GRAINED RH RIGHT,DULL SURFACE
2
HARD TOP SHELL GRAINED RH LEFT,DULL SURFACE
3
SEAL SIDE LONGITUDINAL ME RIGHT, L 04013620050117
4
SEAL SIDE LONGITUDINAL ME LEFT, L 04013620050117
5
SIDE LONGITUDINAL MEMBER BLACK RIGHT, L 04013620050117
5
SIDE LONGITUDINAL MEMBER BLACK RIGHT, L 04013620050117 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20050314, Replaced By: Q0009337V010C46L00
5
SIDE LONGITUDINAL MEMBER BLACK RIGHT, L 04013620050117, Replaced By: Q0009337V011C46L00
6
SIDE LONGITUDINAL MEMBER BLACK LEFT, L 04013620050117 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20050314, Replaced By: Q0009336V010C46L00
6
SIDE LONGITUDINAL MEMBER BLACK LEFT, L 04013620050117, Replaced By: Q0009336V011C46L00
6
SIDE LONGITUDINAL MEMBER BLACK LEFT, L 04013620050117
7
ROOF FRAME FRONT OUTER
8
ROOF FRAME FRONT INNER CO
9
ROLL BAR
10
ROLL BAR
12
SEAL ROOF SHELL LH RIGHT, L 04013620050117
13
O-RING SET
14
O-RING 4.5X1.8
15
TORX INSTRUMENT CLUSTER S
17
CATCH SIDE LONGITUDINAL M LEFT
18
DEFLECTOR , C22AQFT452L0002 BLACK MMC:BLACK
18
DIFFUSER
19
TORX INSTRUMENT CLUSTER S
20
BASEPLATE FRONT
20
LOCKING TAB
21
LOCATOR CENTRE
22
SEAL ROOF SHELL LH LEFT, L 04013620050117
24
CATCH OUTER LH LEFT
24
CATCH OUTER RH RIGHT
25
SHACKLE RH RIGHT
25
SHACKLE LH LEFT
28
EJOT BOLT K 60X15
29
EJOT BOLT K 60X15
30
LOCATING PIN
31
LONGITUDINAL MEMBER MOUNT
32
COVER LONGITUDINAL MEMBER
34
CATCH SIDE LONGITUDINAL M RIGHT
36
SPRING
37
RETRACTING STRIP
38
JOINT COVER PROFILE Y0 , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20050301, Replaced By: Q0016842V003000000
38
JOINT COVER PROFILE Y0
40
COVER
