Mercedes A4528200045 - ЩЕТКА СТЕКЛООЧИСТИТЕЛЯ

SMART ROADSTER-COUPE 452.332

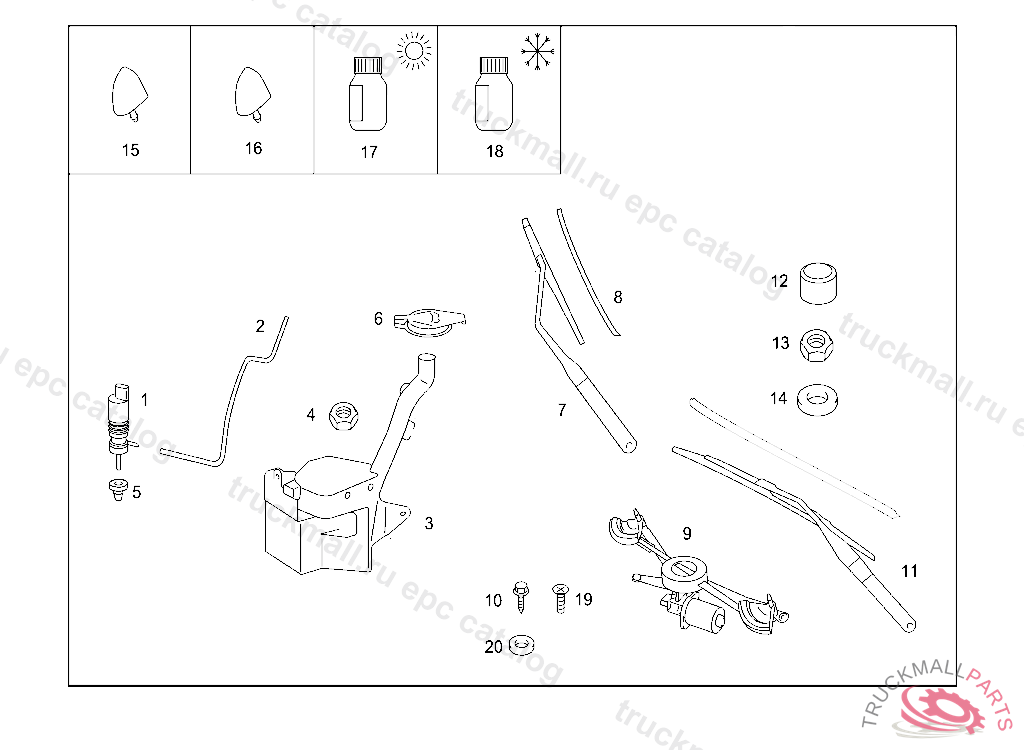

82 ELECTRICAL SYSTEM - 120 WINDSHIELD WIPER

Поз.
Артикул
Описание
1
Q0010765V003000000
PUMP WIPER ASSY
2
Q0010769V004000000
HOSE WIPER ASSY
2
Q0014597V003000000
HOSE WIPER ASSY RHD
2
Q0014597V002000000
HOSE WIPER ASSY RHD
3
Q0009802V004000000
RESERVOIR WIPER ASSY
4
Q0006449V001L05100
PLASTIC NUT HEX M6 TUCKER
5
Q0010766V003000000
SEAL WIPER ASSY , L 03397220040510
6
Q0012928V002000000
COVER WIPER ASSY
7
Q0014888V002000000
WIPER ARM RH RHD RIGHT, L 00758920030613
7
Q0014887V001000000
WIPER ARM RH RIGHT
8
A4528200045
TS WIPER BLADE
8
Q0014885V002000000
WIPER BLADE LHD , L 01310420030809
8
Q0016850V001000000
WIPER BLADE RHD , Replaced By: A4528200045
9
Q0009344V003000000
DRIVE WIPER ASSY , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 04106720050426, Replaced By: Q0009344V004000000
9
Q0011612V003000000
DRIVE WIPER ASSY RHD , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 04159920050615, Replaced By: Q0011612V004000000
9
Q0009344V004000000
DRIVE WIPER ASSY
9
Q0011612V004000000
DRIVE WIPER ASSY RHD
10
Q0009637V001000000
BOLT
11
Q0014889V001000000
WIPER ARM LH RHD LEFT
11
Q0014886V002000000
WIPER ARM LH LEFT, L 01310420030808
12
Q0013020V002000000
COVER WIPER ARM
13
Q0015255V000000000
NUT M8
14
Q0009636V001000000
WASHER
15
Q0010767V004000000
JET WIPER ASSY
16
Q0015107V002000000
SINGLE-JET NOZZLE
16
Q0015107V001000000
SINGLE-JET NOZZLE
19
Q0013709V000000000
SCREW M6 X 10 - 8.8
20
Q0006084V001000000
ELASTOMER RING
