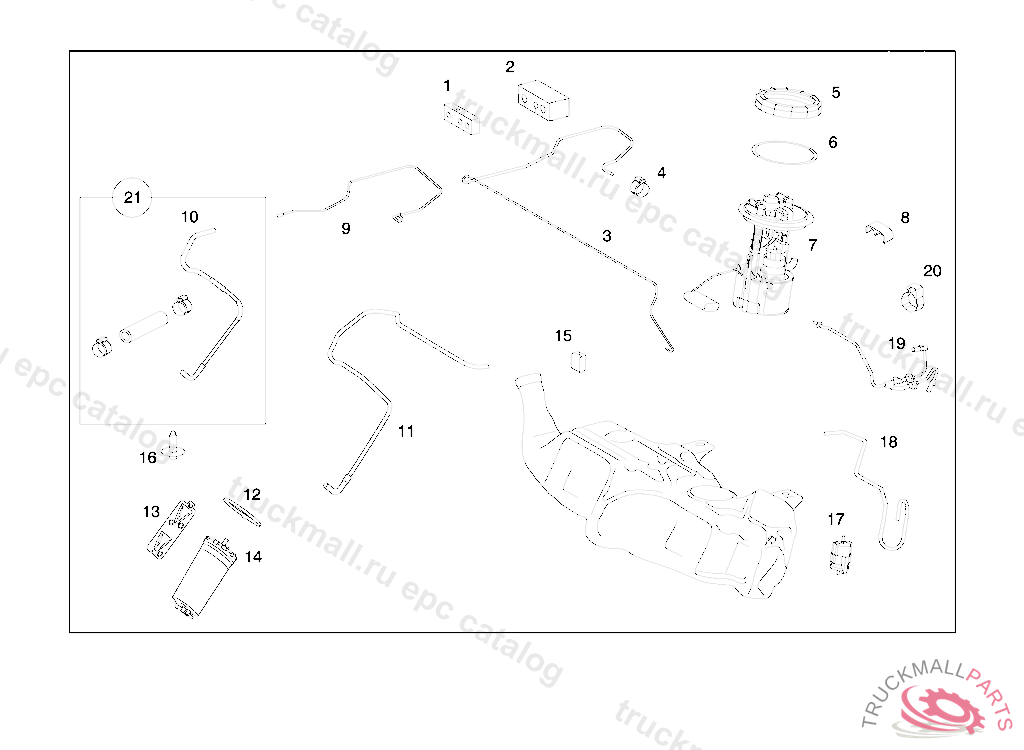

Mercedes Q0014563V000000000 - CLIP ZV-TANK
SMART ROADSTER-COUPE 452.332
47 FUEL SYSTEM - 045 FUEL LINES
Поз.
Артикул
Описание
1
Q0010005V001000000
FUEL LINE
3
Q0010001V003000000
LINE FUEL FILTER FUEL RAI
4
Q0003892V000L03600
CLIP CLIC R86 - 120
5
Q0012977V002000000
UNION NUT
6
Q0014230V001000000
SEAL SENDER UNIT
7
Q0010690V004000000
FUEL PUMP
8
A0009950714
LINE HOLDER SPACING OF PURGE LINES
8
Q0004723V002000000
SPACER
9
Q0012979V001000000
LINE PURGE VALVE ENGINE PARTS KIT VENTIL ENTHALTEN
10
Q0009998V004000000
LINE CANISTER / PURGE VAL
11
Q0010000V004000000
LINE RETURN 1
11
Q0010000V003000000
LINE RETURN 1 , Replaced By: Q0010000V004000000
12
Q0014698V001000000
CABLE TIES CANISTER
13
Q0010039V003000000
HOLDER CANISTER
14
Q0014903V001000000
ACTIVATED CHARCOAL FILTER
15
Q0014563V000000000
CLIP CENTRAL LOCKING TANK
17
Q0003414V003000000
FUEL FILTER
18
Q0009999V002000000
LINE PUMP TO FILTER
19
A1614710015
PURGE LINE
19
Q0001895V007000000
LINE ENGINE INTAKE LINE
20
Q0002979V000000000
CLIP CLIC 66-130
20
A0039979190
LOOM TIE
21
Q0015933V001000000
LINE CANISTER TO ROV
