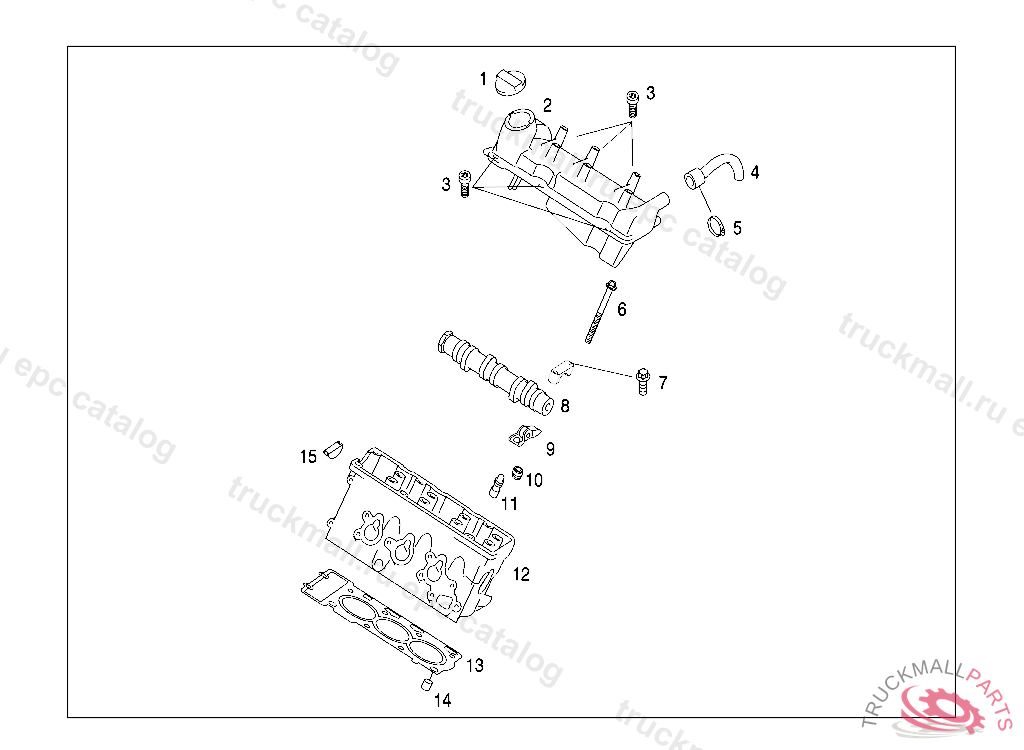

SMART ROADSTER-COUPE - 452.332 - 01 ENGINE HOUSING
Поз.
Артикул
Описание
1
CATCH OIL FILLER OIL FILLING
2
CYLINDER HEAD COVER
3
HEXALOBULAR BOLT. SCREW STAY TO CYLINDER HEAD M 6X23
4
BREATHER LINE WIDE OPEN THROTTLE VENTILATION CRANKCASE
4
BREATHER PIPE PART THROTT
5
CLIP CLIC 86-145
5
HOSE CLAMP
6
BOLT CYLINDER HEAD TO CYLINDER CRANKCASE
6
SCREW M9 X 145 S - 8.8
7
SCREW DUOTAPTITE M6 X 53
8
CAMSHAFT
9
ROLLER DRAG LEVER
9
ROCKER ARM
10
VALVE STEM SEAL VALVE STEM SEALING
11
HYDROELEMENT
11
HYDRAULIC ELEMENT
12
CYLINDER HEAD
13
CYLINDER HEAD GASKET
13
CYLINDER HEAD GASKET
14
CLAMPING SLEEVE CENTERING
15
GASKET CAMSHAFT HOUSING
