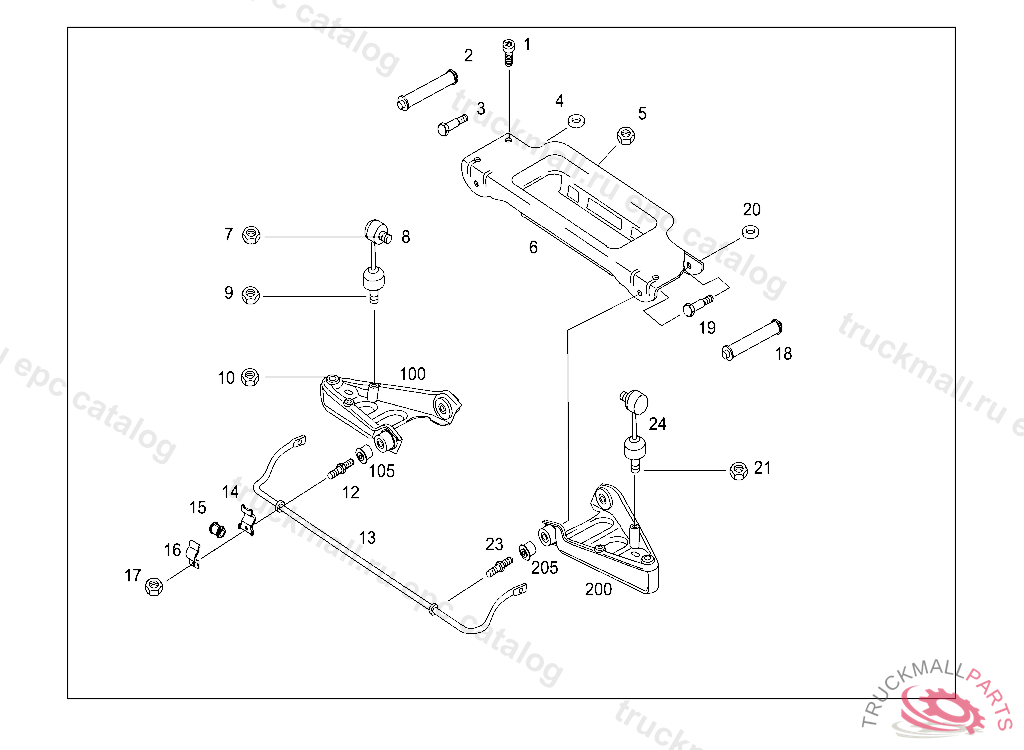

Поз.
Артикул
Описание
1
SPECIAL SCREW WITH SHANK
1
BOLT
2
INSERTION ROD , L 00000120020830
3
SPECIAL SCREW WITH SHANK
4
CUP DISC
5
PRESS-IN NUT
6
CROSSMEMBER (WITH PRESS-I
6
CROSSMEMBER (WITH PRESS-I , Replaced By: Q0009978V005000000
7
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
8
STABILISER HANGER
9
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
10
NUT M12 X 1.5 -8 AT JOINT FLANGE
12
SPECIAL SCREW WITH SHANK
13
STABILISER FRONT AXLE 18
14
CLIP REAR
15
RUBBER MOUNT
16
CLIP FRONT
17
NUT MB STANDARD 13023 M12 , Replaced By: N913023012002
17
NUT BRACKET TO SIDE MEMBER M12X1.5
18
INSERTION ROD , L 00000120020830
19
SPECIAL SCREW WITH SHANK
20
CUP DISC
21
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
23
SPECIAL SCREW WITH SHANK
24
STABILISER HANGER
100
WISHBONE COMPLETE LEFT, H 30002120010108
105
WISHBONE BUSHING RIGHT
200
WISHBONE COMPLETE LEFT, H 30002120010108
205
WISHBONE BUSHING RIGHT
