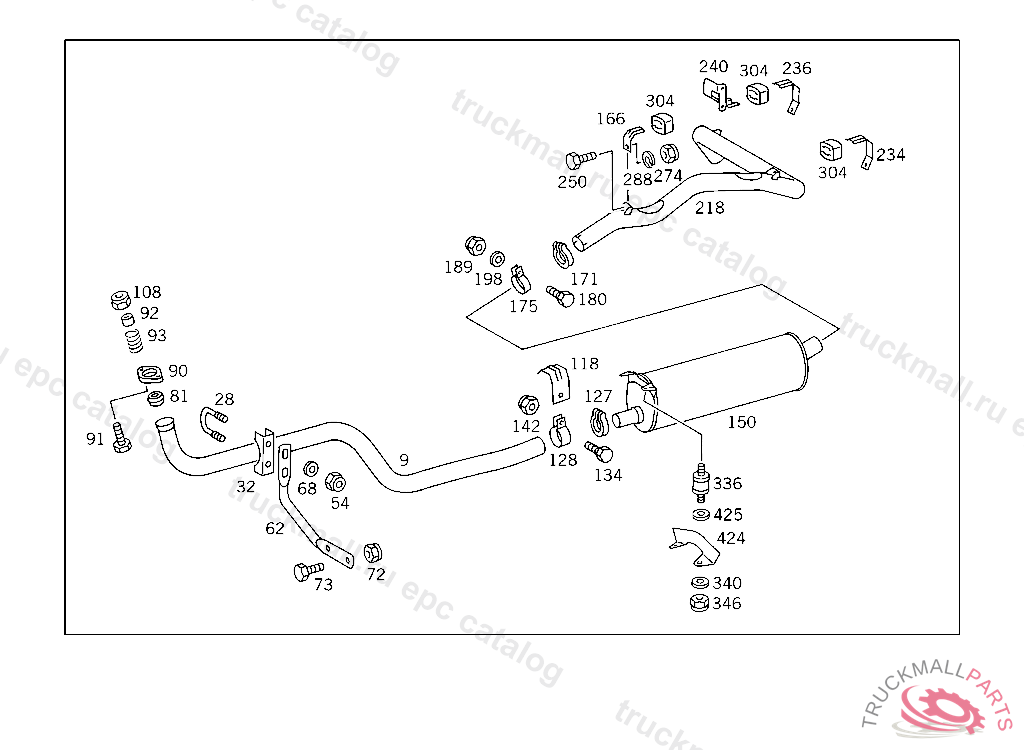

Поз.
Артикул
Описание
81
CONNECTOR FLANGE TO EXHAUST MANIFOLD
90
FLANGE , 003 114540 007 106557 102,103 362783 105 291289, Replaced By: A1264920745, +001N000931008327
91
SCREW , Replaced By: N304014008009
91
SCREW 3/2-WAY VALVE TO BRACKET
92
SPACER TUBE REAR AXLE REGULATING SOLENOID VALVE
93
SPRING , 120 023429 123 010750 126 011171 130 017637
108
NUT , Replaced By: A1201420072
108
HEXAGON NUT SCREENING PLATE,5 163561
127
CLAMP
127
CLAMP
150
MUFFLER ,011524
166
BRACKET
166
BRACKET , Replaced By: A4604923641
171
CLAMP , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1124921040, +001N000931008327, +001N999900008002
171
CLAMP
175
CLAMP , THE OLD PART MUST NO LONGER BE INSJTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3144910240
180
SCREW , Replaced By: N304017008043
180
SCREW VALVE TO BRACKET M 8X55
189
NUT , Replaced By: N913004008001
189
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
189
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
198
WASHER , Replaced By: N000125008443
198
WASHER EXHAUST MUFFLER TO STRAP
218
EXHAUST PIPE REAR, 059608 904079 066872 905141 ORDER ADDITIONALLY ALSO: 1 COVERING 461 470 01 47
218
EXHAUST PIPE , Replaced By: A4604902121
218
EXHAUST PIPE , Replaced By: A4604901321
218
EXHAUST PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4604900521, +001A4604922641
234
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4604922441
234
BRACKET REAR EXHAUST PIPE
234
BRACKET REAR EXHAUST PIPE,095634
236
BRACKET , Replaced By: A4604924441
236
BRACKET REAR EXHAUST PIPE
240
BRACKET AT FRAME
250
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
250
SCREW , Replaced By: N304017008016
274
NUT , Replaced By: N913004008001
274
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
274
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
288
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
304
DAMPING PAD PRE-MUFFLER FIXTURE
304
DAMPING PAD
336
BUFFER MOUNTING PARTS
336
BUFFER LINE MOUNTING
340
WASHER EXHAUST MUFFLER TO STRAP
340
WASHER , Replaced By: N000125008443
346
NUT MUFFLER TO SIDE MEMBER, 025469 900546
424
PROTECTIVE PLATE , 062492 904345
425
WASHER
425
WASHER MAIN MUFFLER SUSPENSION
425
WASHER
