Поз.
Артикул
Описание

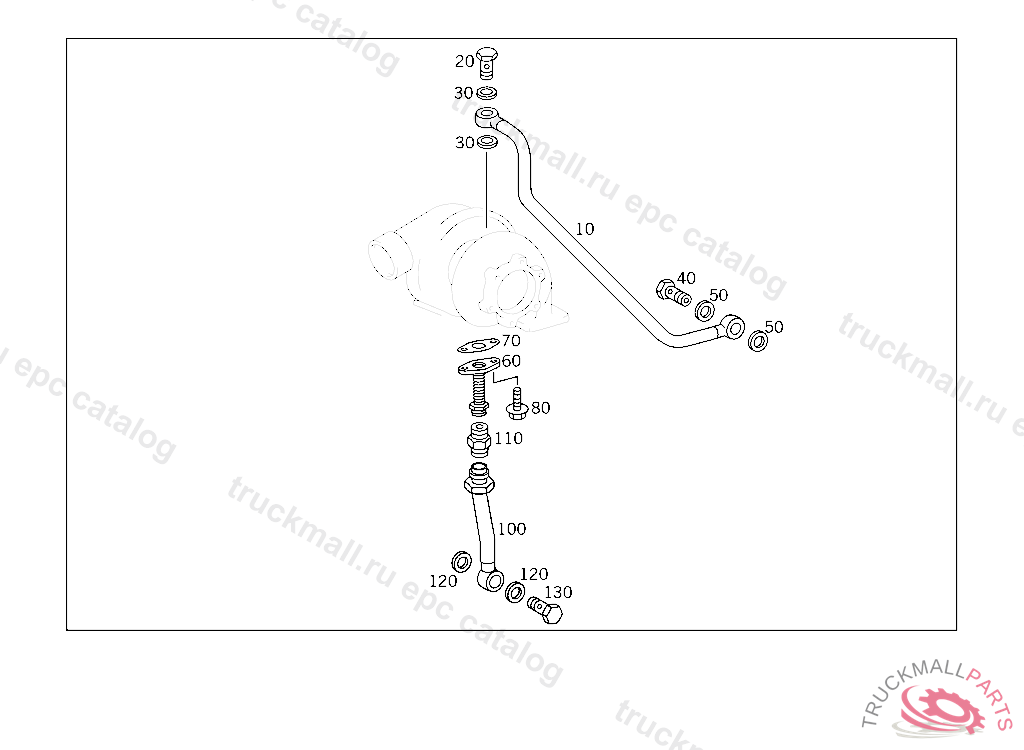

10
OIL LINE TURBOCHARGER OIL FEED, UP TO ENGINE 737308
10
OIL LINE TURBOCHARGER OIL FEED
10
OIL LINE , AS OF ENGINE 737309
10
OIL LINE , AS OF ENGINE 737309
20
HOLLOW SCREW FUEL LINE TO FEED PUMP
30
SEALING RING
40
HOLLOW SCREW FUEL LINE TO FEED PUMP
50
SEALING RING
60
OIL LINE , Replaced By: A5411800922
60
OIL LINE TURBOCHARGER OIL RETURN
60
OIL LINE (OIL RETURN PIPE)
70
GASKET OIL RETURN LINE TO TURBOCHARGER
70
GASKET OIL RETURN LINE TO TURBOCHARGER
80
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
100
OIL LINE (OIL RETURN PIPE)
110
FITTING OIL RETURN LINE TO CYLINDER CRANKCASE
120
SEAL RING
130
HOLLOW SCREW SUCTION LINE TO OIL PUMP
999
OIL LINE OIL DELIVERY LINE P.T.O.
999
SEALING RING AT PRESSURE REGULATOR
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
999
FITTING FUEL-OIL TANK
999
BANJO BOLT. HOLLOW SCREW
999
CLAMP .
