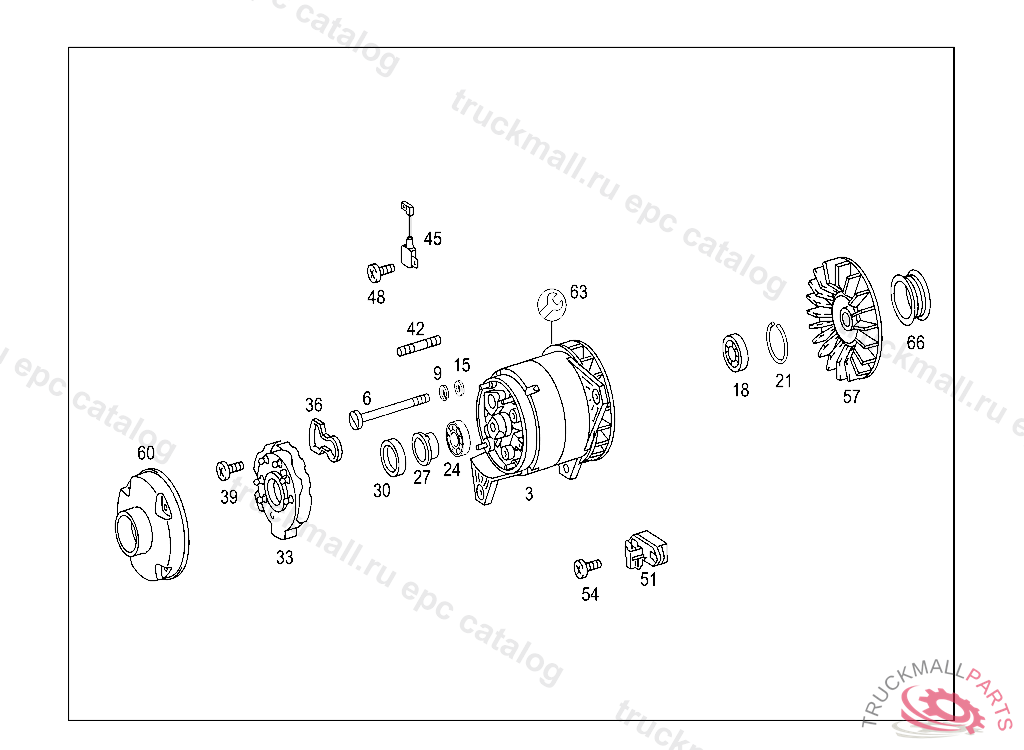

Поз.
Артикул
Описание
3
ALTERNATOR , Replaced By: A4761547701
6
SCREW
9
LOCK WASHER
15
WASHER COMPRESSED AIR LINE TO BRACKET
18
BALL BEARING
21
SNAP RING
24
CYLINDR. ROLLER BEARING
27
SPACER RING
30
SEAL RING
33
RECTIFIERTO 009 154 08 02,008 154 78 02
36
GASKET
39
SCREW
42
STUD
45
CONDENSER
48
SCREW APPARATUS PLATE TO CAB,K 062140
51
REGULATOR
54
SCREW REGULATOR MOUNTING TO 009 154 07 02
57
FAN
60
COVER
63
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
66
BELT PULLEY F POLY-V BELT
66
BELT PULLEY F POLY-V BELT AT ALTERNATOR, Replaced By: A4571551915
66
PULLEY AT ALTERNATOR, Replaced By: A4571551815
