Mercedes N000931012205 - Болт

G 300 CDI 461.305 FROM CHASSIS 144791

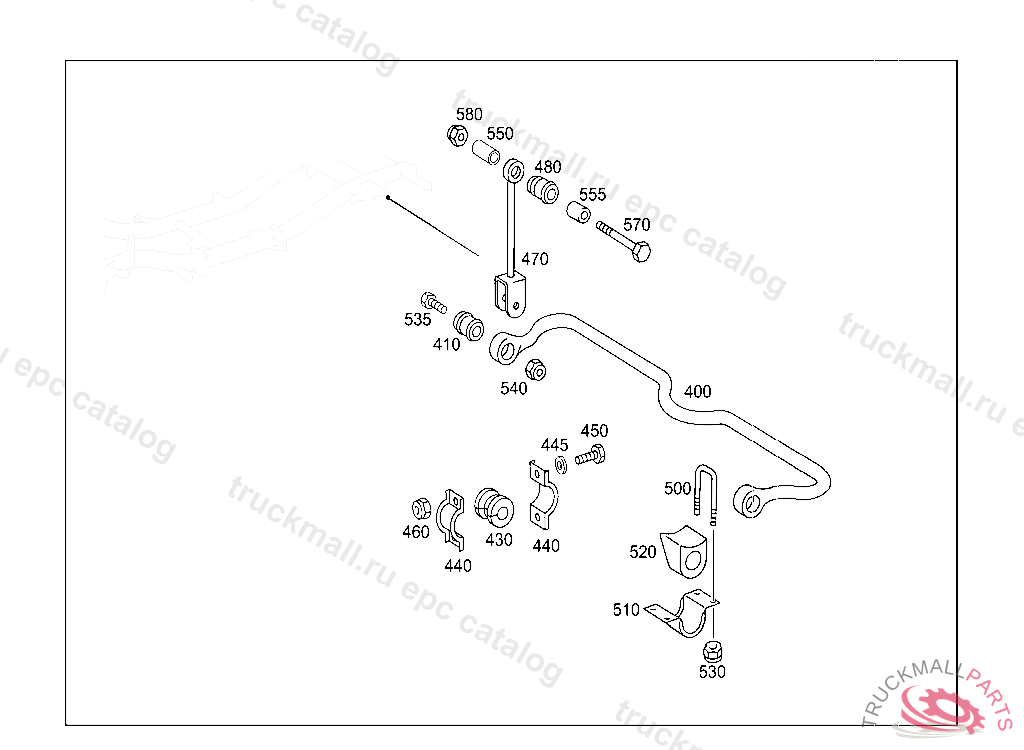

32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 165 TORSION BAR,REAR

Поз.
Артикул
Описание
400
A4633200011
STABILIZER TORSION BAR
400
A4633260065
TORSION BAR REAR
410
A3093200073
BEARING TORSION BAR BEARING
430
A1293230085
RUBBER MOUNTING , Replaced By: A1293230185
440
A1243231140
BRACKET
450
N304017008021
SCREW PIPE CLAMP
460
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
470
A4613200032
LINK REAR
480
A3093200073
BEARING TORSION BAR BEARING
500
A4603230126
CLAMP
510
A4603230040
BRACKET
520
A4603230185
RUBBER MOUNTING TORSION BAR
530
N910113010000
NUT STRAP TO BRACKET
535
N304017012002
SCREW RELEASE LEVER TO SHAFT, 024,026,027,028,121,122 5 095724 065,131,132 5 104252
540
N913002012004
NUT END PIECE TO EXHAUST PIPE
540
N910113012005
HEXAGON NUT. NUT SPRING BOLT
550
A4633260050
BUSHING LINK TO CONSOLE
555
A4633260150
BUSHING LINK TO CONSOLE
570
N304014012006
HEXAGON HEAD BOLT LINK TO FRAME M12X120
570
N000931012205
SCREW
580
N913002012004
NUT END PIECE TO EXHAUST PIPE
580
N910113012005
HEXAGON NUT. NUT SPRING BOLT
