Поз.
Артикул
Описание

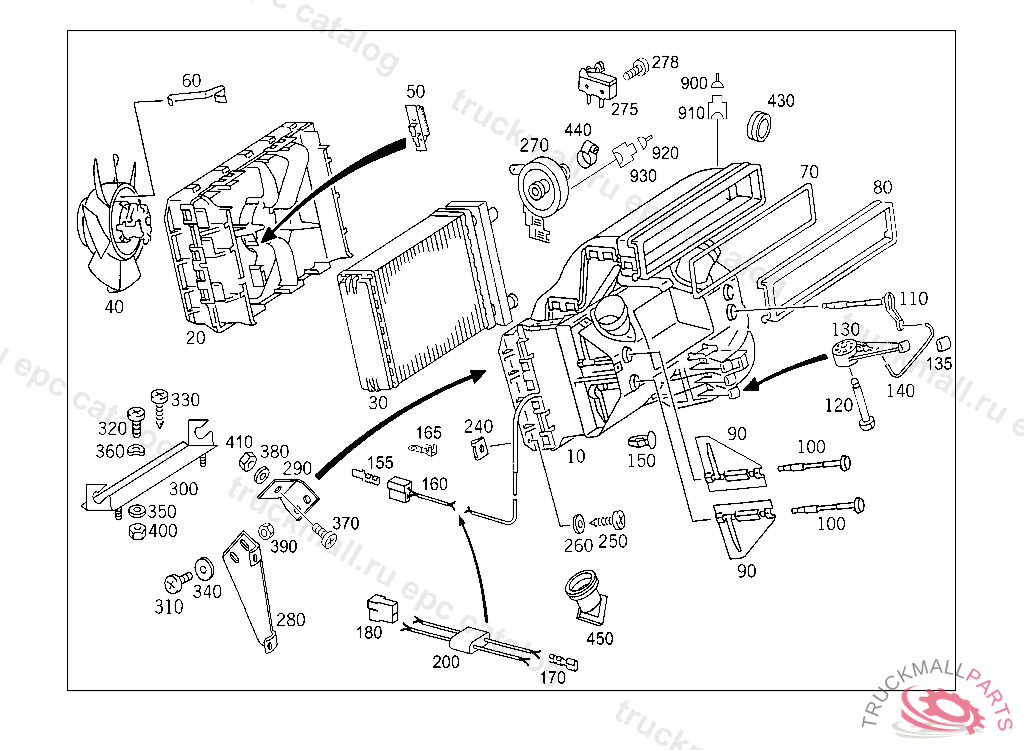

10
HOUSING HEATER UNIT, 20130703
10
HOUSING HEATER UNIT
20
HOUSING HEATER UNIT
30
HEAT EXCHANGER HEATER UNIT
40
BLOWER HEATER UNIT
50
RESISTOR HEATER UNIT
60
SPRING HEATER UNIT
70
SEAL HEATER UNIT
80
FRAME HEATER UNIT
90
FLAP HEATER UNIT
100
SHAFT HEATER UNIT
110
SHAFT HEATER UNIT
120
PIN AT HOUSING
130
LEVER HEATER UNIT
135
KNOB VENTILATION CASE
140
OPERATING ROD ROD, NO LONGER AVAILABLE
150
RIVET LIGHTING UNIT
155
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
160
PIN BUSHING HOUSING. PLUG HOUSING FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH
165
CABLE SHOE
170
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
180
PIN BUSHING HOUSING BIPOLAR
240
FUSE. LOCK SUPPORT
250
TAPPING SCREW MOUNTING PARTS 4.8X16
260
WASHER BRACKET TO BATTERY CASE BRACKET
270
VALVE
275
SWITCH CONTROL VALVE HEATING
278
HEXALOBULAR BOLTM3X16
280
BRACKET RIGHT
280
BRACKET LEFT
290
BRACKET HEATER SUPPORT
300
BRACKET
310
SCREW CONTROL UNIT TO CAB
310
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
320
SCREW MICRO-SWITCH TO BRACKET
320
HEXALOBULAR BOLTM3X16
330
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
340
WASHER
340
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
350
WASHER CHAIN TO ENGINE COMPARTMENT INSULATION, ON VEHICLES HAVING MERCEDES-BENZ BODY UP TO CHASSIS 037773 ON VEHICLES HAVING NO MERCEDES-BENZ BODY UP TO CHASSIS 037601 EXCEPT FOR 037688,037693,037696,037735,037756. ALSO INSTALLED ON 037783
360
LOCK WASHER PLUG SOCKET TO BRACKET,5 906887
370
SCREW SENSOR CABLE MOUNTING
370
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
370
SCREW CLAMP MOUNTING M 6X16
380
WASHER COMPRESSED AIR LINE TO BRACKET
390
WELD NUTM5
400
NUT BRACKET MOUNTING
410
NUT SPRING-LOADED PUSH ROD
430
GROMMET HOSE TO FIRE WALL
440
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
450
GROMMET , Replaced By: A1168350597
900
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
910
PIN BUSHING HOUSING UNIPOLAR
920
PLUG PIN
930
PLUG HOUSINGADS-ASD
