Mercedes N914130006101 - Болт

G 300 CDI 461.305 FROM CHASSIS 144791

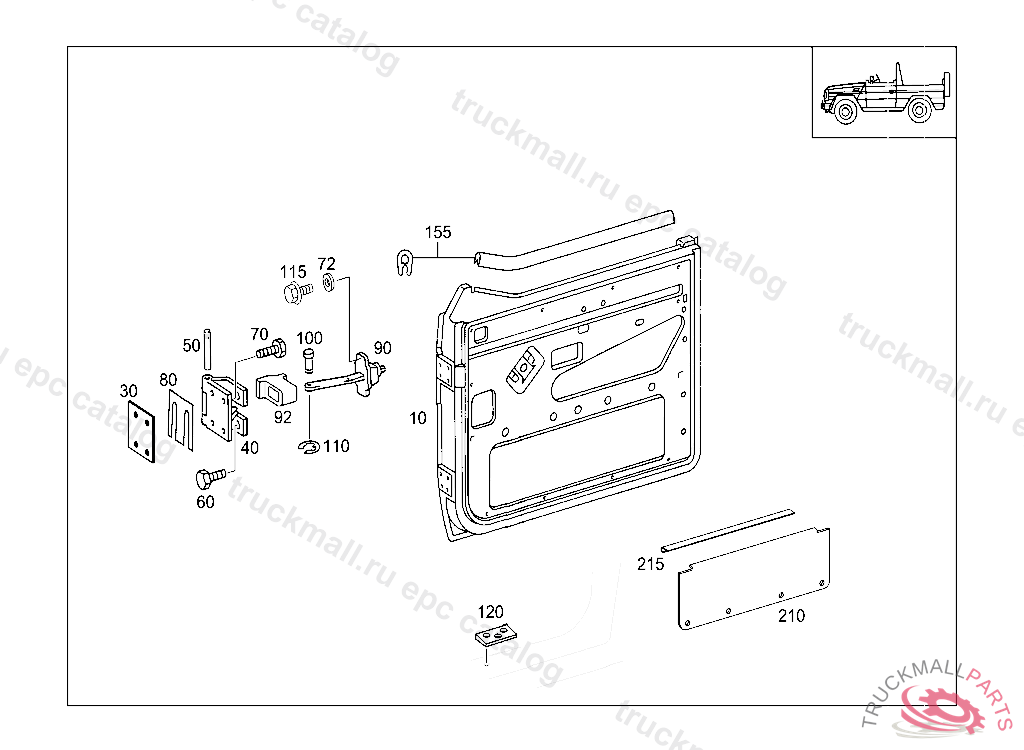

72 FRONT DOORS - 015 FRONT DOORS

Поз.
Артикул
Описание
10
A4847201205
DOOR SHELL RIGHT
10
A4847201105
DOOR SHELL LEFT
10
A4617204405
DOOR SHELL RIGHT
10
A4617204305
DOOR SHELL LEFT
40
A4637200137
HINGE RIGHT TOP
40
A4637200337
HINGE FRONT BOTTOM RIGHT
40
A4637200037
HINGE LEFT FRONT, TOP AND BOTTOM
50
A4607230052
HINGE PIN FRONT TOP LEFT
60
N000933008145
SCREW CLAMP TO BRACKET AND TO PIPE
70
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
72
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
80
A4607230197
PAD HINGE,LEFT, Replaced By: A4637250000
90
A4637200116
DOOR CHECK RIGHT REAR DOOR, X 19654020120119
90
A4607200416
DOOR CHECK FRONT LEFT
100
A0009911605
PIN BRACKET TO FRONT PANEL, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009915405
110
N006799006003
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
115
N000000002508
HEXALOBULAR BOLT INTERIOR LOCKING MECHANISM M6X20
115
N914130006101
SCREW
155
A0019877625
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
