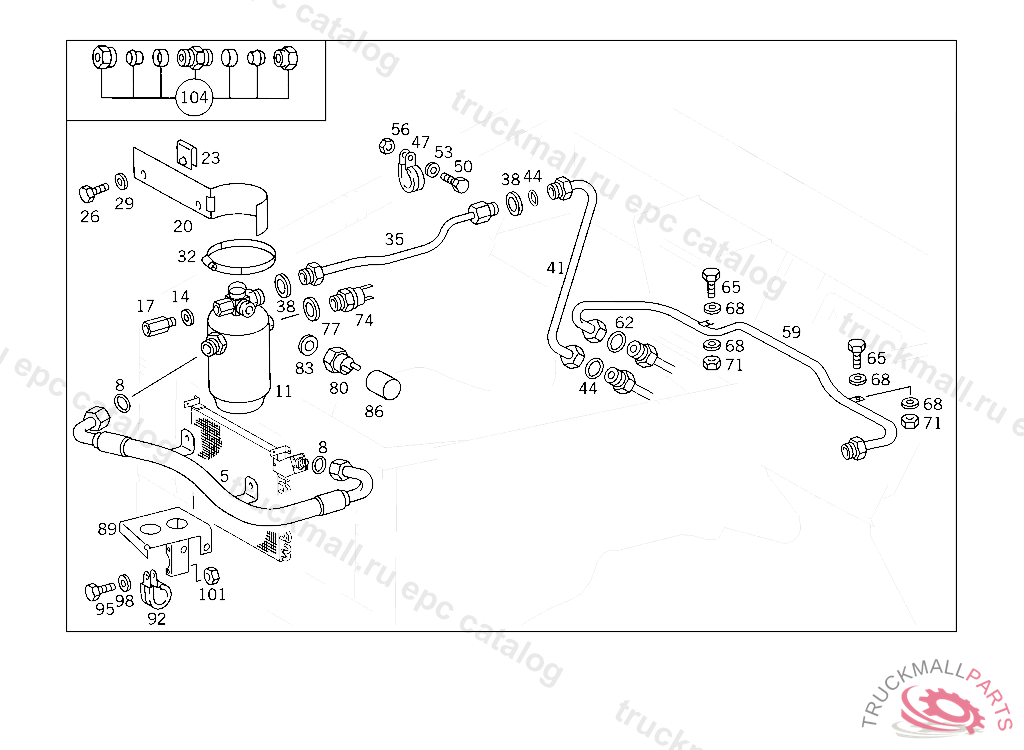

Поз.
Артикул
Описание
5
LINE FROM CONDENSER TO LIQUID TANK
8
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
11
TANK
14
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
17
VALVE
20
BRACKET
23
NUT RETAINER , Replaced By: A3229900091
23
NUT RETAINER , Replaced By: A0009907191
26
SCREW , Replaced By: N304017006020
26
SCREW LICENSE PLATE TO BRACKET
29
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
32
CLAMP HOSE TO RETARDER 60-80X13 MM
32
CLAMP (DRY FILTER)
35
LINE , Replaced By: A4615000872
35
LINE FROM LIQUID TANK TO SEPARATION POINT
38
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
41
LINE FROM SEPARATION POINT TO FRONT PANEL
44
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
47
CLAMP CABLE HARNESS MOUNTING
47
CLAMP , Replaced By: N000000001045
50
SCREW PUMP TO BRACKET
53
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
56
NUT BALL PIVOT TO LEVER
59
PIPE LINE FROM FRONT PANEL TO COMPRESSOR
62
SEAL RING HOSE TO CONDENSER 14 MM
65
SCREW PUMP TO BRACKET
68
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
71
NUT BALL PIVOT TO LEVER
74
SWITCH LIQUID TANK, 023 060688 033 029143 123 043369 130 055527
74
SWITCH , Replaced By: A1248208310
77
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
80
SWITCH AT LIQUID TANK,FOR ADDITIONAL BLOWER
83
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
86
INSULATING SLEEVE CABLE HARNESS FOR ELECTRIC SEAT ADJUSTER
89
BRACKET REFRIGERANT LINE BRACING
92
CLAMP LINE MOUNTING
95
SCREW COVER PLATE TO COVER PLATE M 6 X 12
98
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
101
NUT OIL TANK TO BRACKET
101
NUT , Replaced By: N913002006009
104
LINE PARTS KIT, 107519 912959 FOR IMPROVEMENTS TO THE OPERATION OF THE AIR CONDITIONINGSYSTEM DUE TO NECESSARY TECHNICAL ALTERATIONS AS WELL AS MODIFICATION/CONVERSION INSTRUCTIONS,SEE:83 / 25 / 50-S
999
STAY REFRIGERANT LINE BRACING
