Поз.
Артикул
Описание
10

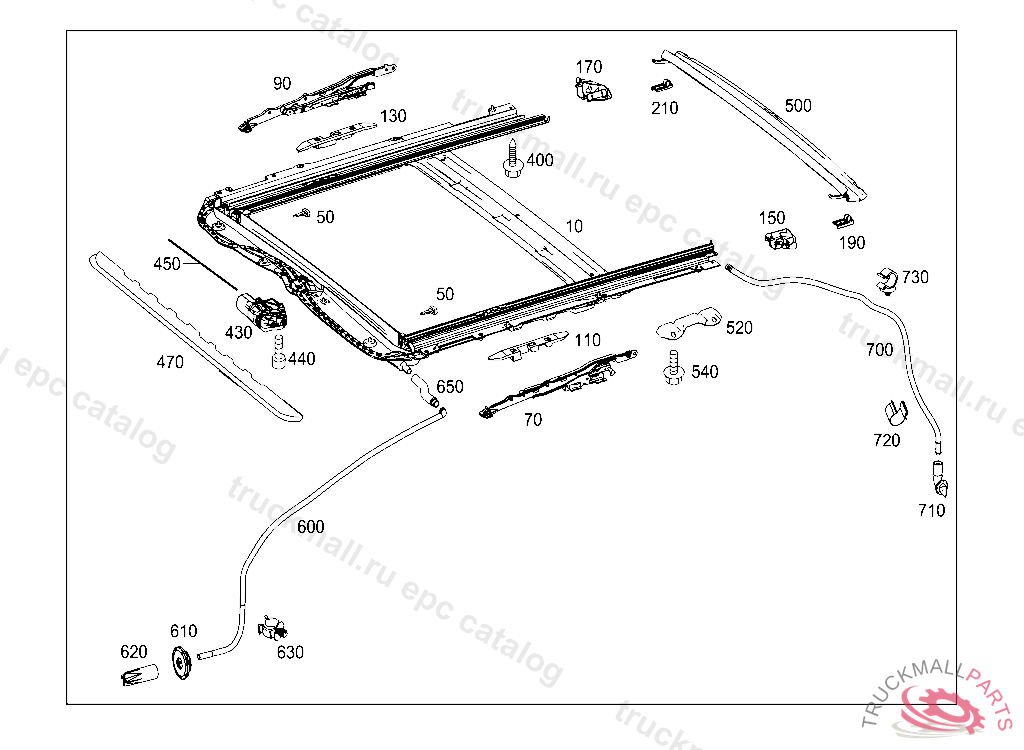

SLIDING ROOF FRAME , F 76736920110831
10
FRAME , A 62011720110831 L 05243420110831 V 00391820110831 F 76736820110831 R 20766720111031
50
STOP LEFT AND RIGHT SLIDING ROOF
70
ANGLE LEFT
90
ANGLE RIGHT
110
STOP LEFT ANGLE
130
STOP RIGHT ANGLE
150
END PIECE LEFT ANGLE
170
END PIECE RIGHT ANGLE
190
SLIDING SHOE LEFT DRIP RAIL
210
SLIDING SHOE RIGHT DRIP RAIL
400
BOLT FRAME TO ROOF
430
ELECTRIC MOTOR
440
SCREW CABLE TRAY TO APPARATUS CASE, A 290166 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM A 290167 WITH CODE 805
450
WIRING HARNESS SLIDING ROOF DRIVE
470
WIND DEFLECTOR ELECTRIC SLIDING/LIFTING ROOF
500
DRIP MOULDING
520
CONSOLE LEFT AND RIGHT, NO LONGER AVAILABLE
540
BOLT CONSOLE TO FRAME
600
HOSE LINE WATER DRAIN AT FRONT RIGHT
610
EXPANSION PLUG SIDE MEMBER,TOP 45 MM
620
HOSE WATER DRAIN AT FRONT LEFT, PART IS INCLUDED IN SIDEWALL PACKAGE CONTENTS (DG 63)
620
HOSE ASSEMBLY WATER DRAIN AT FRONT LEFT
630
CLAMP
630
LINE HOLDER HOSE TO COMPRESSOR
650
DRIP MOULDING TO SLIDING ROOF AT LEFT FRONT
700
DRAINAGE PIPE SLIDING ROOF REAR
710
WATER DRAIN GROMMET HOSE LINE THROUGH RIGHT WHEEL WELL
710
GROMMET HOSE LINE THROUGH LEFT WHEEL WELL, Replaced By: A0019989301
720
BRACKET FUEL TANK BREATHING
730
LINE HOLDER WATER DRAIN
