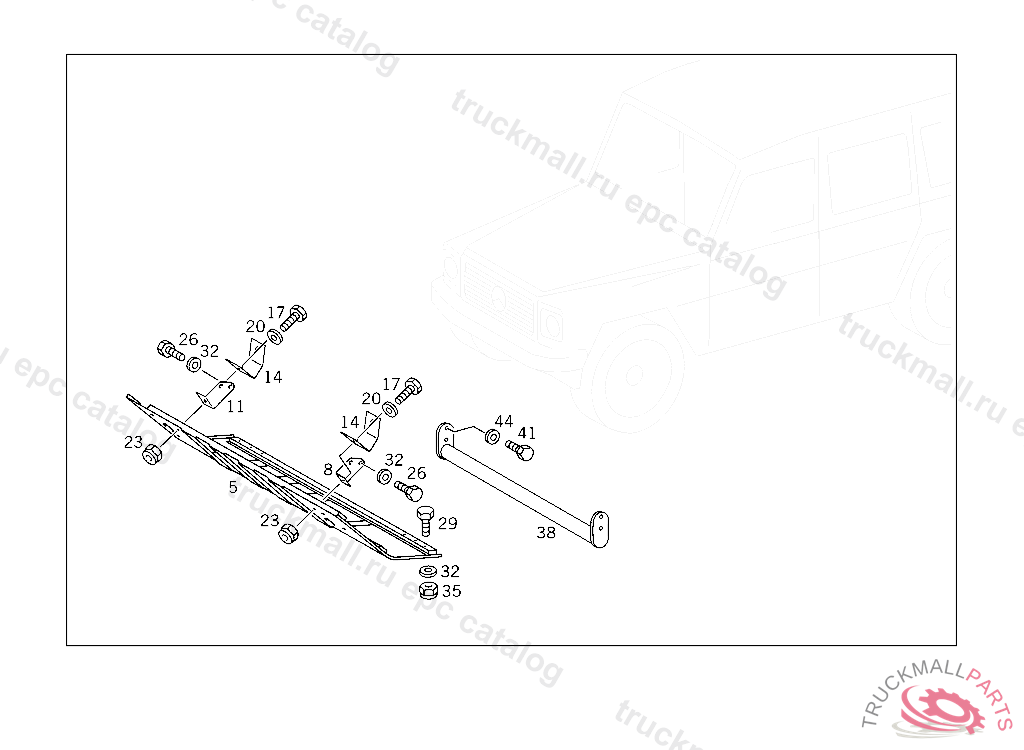

Поз.
Артикул
Описание
5
PROTECTIVE PLATE ENGINE PROTECTIVE PLATE
5
PROTECTIVE PLATE , Replaced By: A4605201442
8
MOUNTING ANGLE LEFT
11
MOUNTING ANGLE RIGHT
17
SCREW , Replaced By: N304017008034
17
SCREW BRACKET TO CROSS CONNECTION STRUT
20
WASHER EXHAUST MUFFLER TO STRAP
20
WASHER , Replaced By: N000125008443
23
NUT SWITCH TO FLOOR PLATE
26
NUT AIR CLEANER ELEMENT
29
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
32
WASHER RADIATOR TO RUBBER MOUNTING
32
WASHER , Replaced By: N000125010532
38
PROTECTIVE PLATE UNDERRUN PROTECTION
41
SCREW END PIECE TO EXHAUST PIPE M 10X25
44
WASHER RADIATOR TO RUBBER MOUNTING
44
WASHER , Replaced By: N000125010532
