Поз.
Артикул
Описание
5

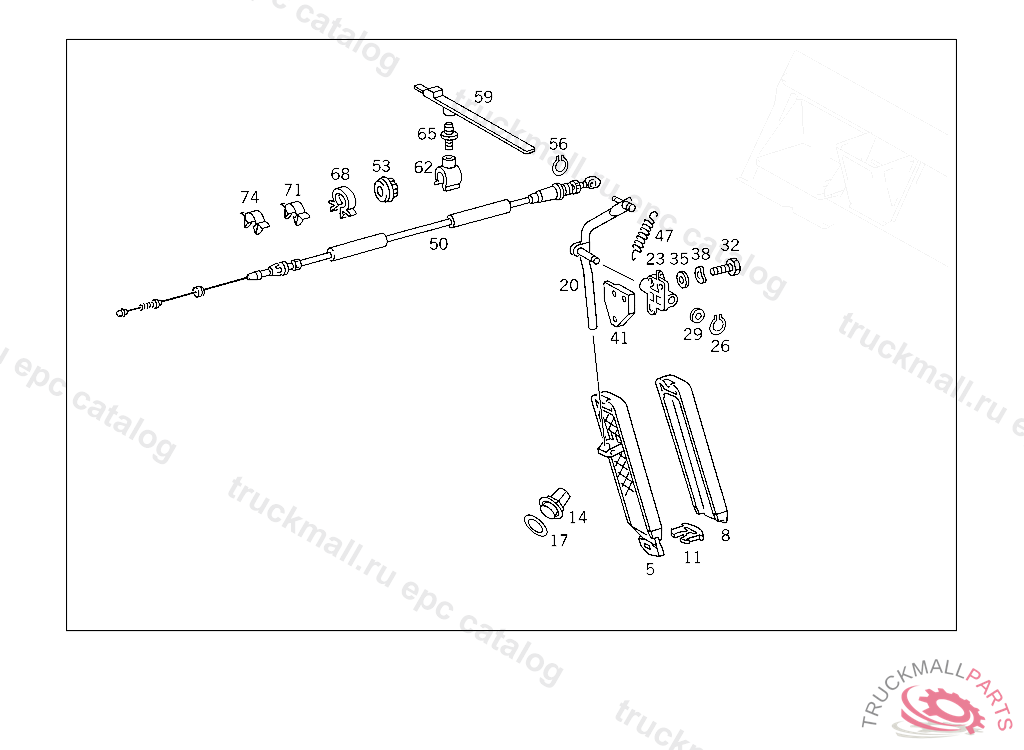

ACCELERATOR PEDAL
8
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
11
CLIP
14
STOP
14
KICK-DOWN SWITCH , Replaced By: A0003000141
17
SEAL RING KICK-DOWN SWITCH
20
LEVER ACCELERATOR PEDAL
20
LEVER
23
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
26
LOCK RINGTO 000 553 37 01,000 553 39 01,
29
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
32
SCREW PUMP TO BRACKET
32
SCREW , Replaced By: N304017006020
32
SCREW , Replaced By: N304017006016
32
SCREW LICENSE PLATE TO BRACKET
35
WASHER , Replaced By: N009021006208
35
WASHER COMPRESSED AIR LINE TO BRACKET
38
SPRING WASHER LICENSE PLATE TO BRACKET
41
SHIM
47
SPRING
47
SPRING
50
WIRE CABLE
50
WIRE CABLE
50
WIRE CABLE
50
WIRE CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 079649 907416, Replaced By: A4633002830
50
WIRE CABLE , Replaced By: A4633001930
50
WIRE CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 079649 907416, Replaced By: A4633002930
50
WIRE CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 079649 907416, Replaced By: A4633002030
50
WIRE CABLE
53
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
56
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
56
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
59
LOOM TIE , Replaced By: A1169970890
62
HOSE BRACKET. LOOM TIE
62
CLAMP LINE MOUNTING
65
CONNECTOR BOWDEN CABLE TO BRACKET
68
BRACKET WIRE CABLE TO AIR CLEANER
71
CLAMP , Replaced By: A0009956544
74
CLAMP
74
CLAMP
